20T-300-10-1/2 Temperature Swichgage® (10702070)

(0)No Reviews yet
$100.49
SKU: 20T-300-10-1/2 (10702070)

This item is IN STOCK

Current Stock: 6

20T-300-10-1/2: 2" Temperature Swichgage®; 140-300° F. temp range; 10 ft. capillary length  (10702070)

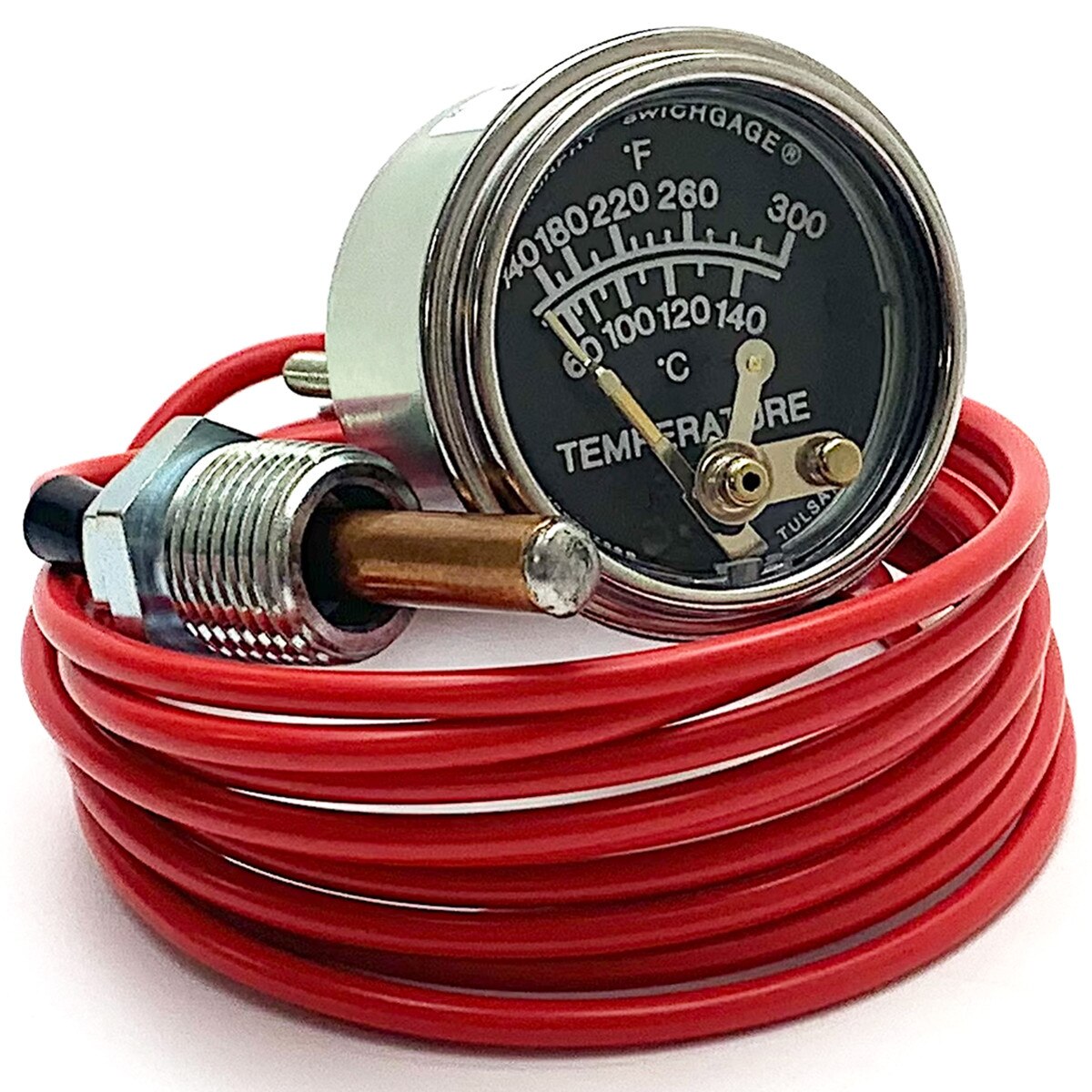

The 20T-300-10-1/2 Temperature Swichgage® is a diaphragm-actuated 2” dial (51 mm), temperature-indicating gage. This rugged, built-to-last instrument is fully sealed from the environment by the unique combination of a polycarbonate case and lens, a polished stainless steel bezel, and O-ring seals.

This vapor actuated gage features a sealed ten foot (10’) capillary tube, a sensing bulb, and a 140-300°F (60-149°C) temperature range.

Inside the 20T-300-10-1/2, the gage pointer acts as a temperature indicator and as one switch pole which completes a circuit when it touches the adjustable limit contact. Contact(s) are grounded through the Swichgage® case. This gage has a self-cleaning motion to enhance electrical continuity.

When subjected to heat, the liquid in the sensing bulb changes to vapor creating pressure against the diaphragm mechanism. The diaphragm translates this vapor pressure into a mechanical gage reading.



Literature:



  1. Sales Bulletin
  2. Installation Instructions
  3. Sensing Bulb/Scale/Capillary Length Combinations
  4. Thermowell Specifications


MurCal is an Authorized Distributor of Murphy by Enovation products.
MurCal provides experienced application and product support, before and after the sale.
