518APH-12: Tattletale® (25700147)
518APH-12: Tattletale® (25700147)

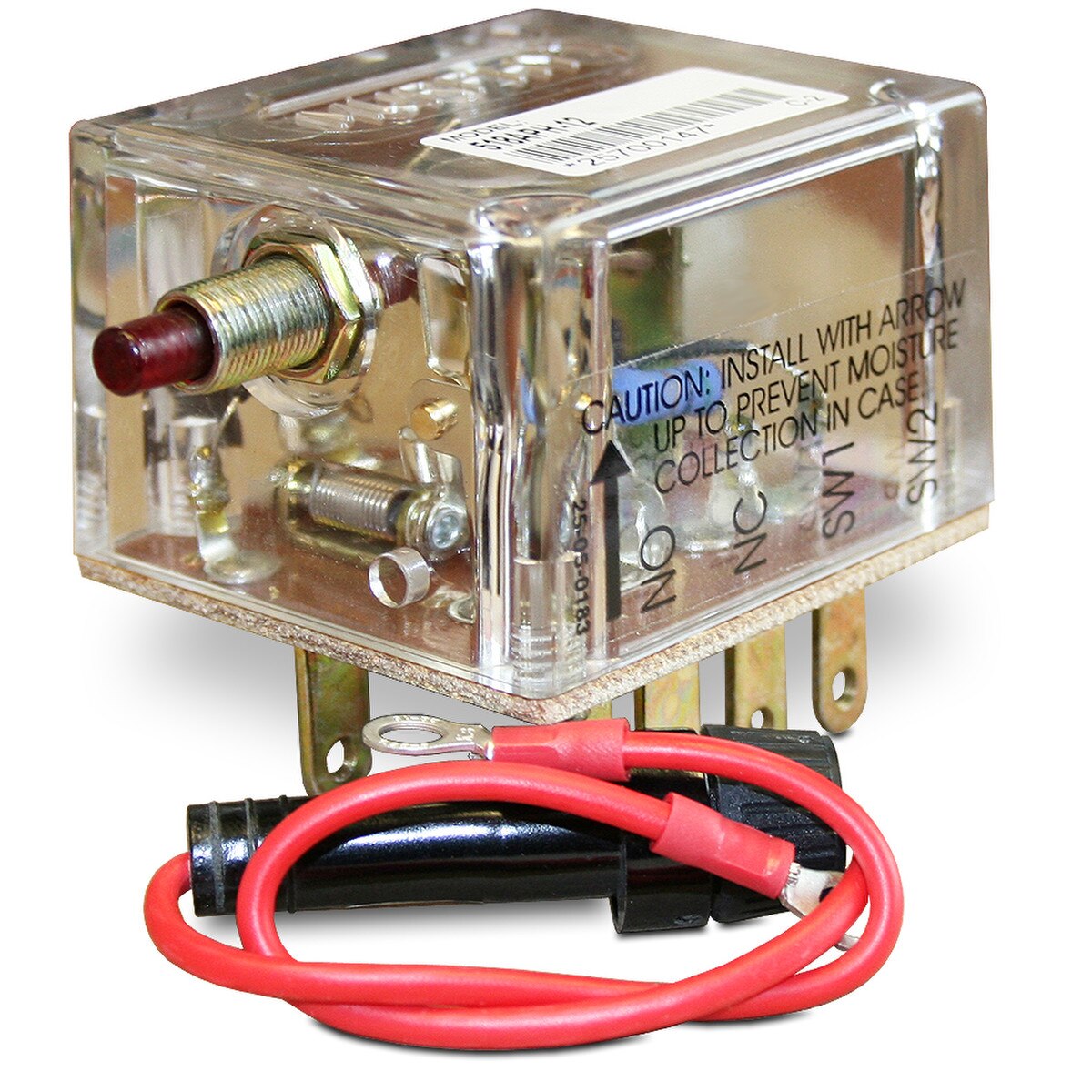

The Murphy 518APH-12 Tattletale® allows for Swichgage® and/or N.C. contacts to be wired "Closed Loop" (in series). Any contact open or Swichgage® contact close in the circuit shunt trips the 518APH-12.
The 518APH-12 is a 12-volt model which features a manual indicating reset type.
The control circuit output contact is NCH and NOH. In the latched position the NCH contact has a "hot" output; in the tripped position the NOH contact has a "hot" output. The latch type is energized to latch. Contacts are rated for 10 amps 24 V. A 14-amp fuse is included.
Use for distributor ignition or diesel engines.
