20T-F-250-10-1/2 Temperature Swichgage® (10702240)

(0)No Reviews yet
$123.49
SKU: 20T-F-250-10-1/2 (10702240)

This item is IN STOCK

Current Stock: 1

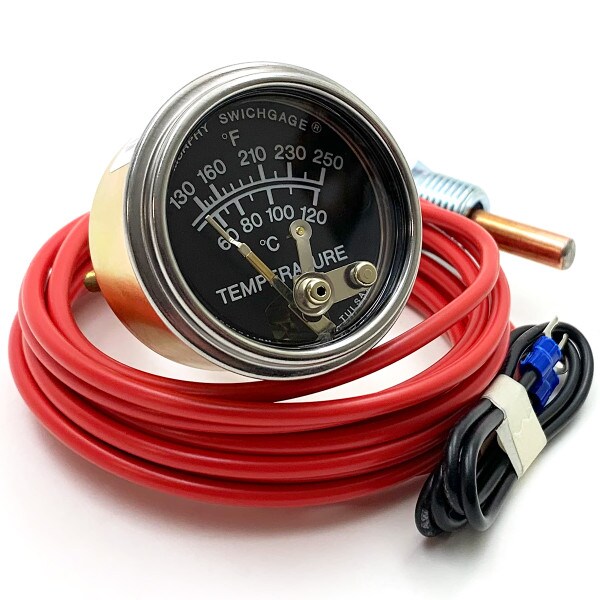

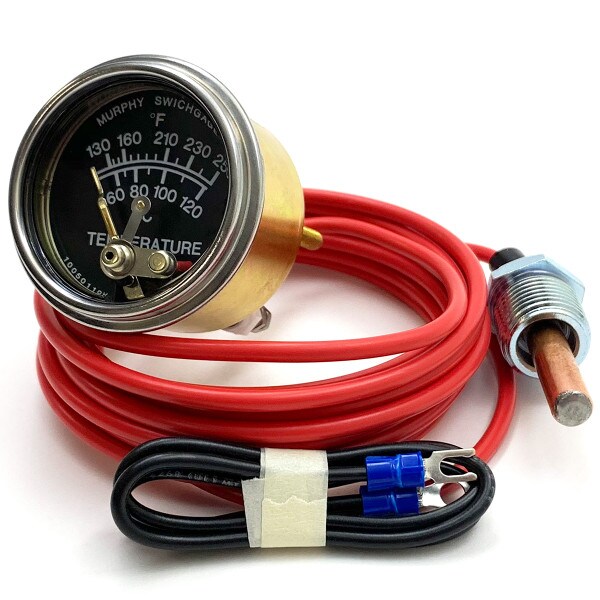

Murphy by Enovation 20T-F-250-10-1/2 (10702240): 2" Temperature Swichgage®; 130-250° F. temp range; "FS" stud for closed loop w/ 518 tattletale; 10 ft. capillary length



The 20 Series (2 inch/51 mm dial) Swichgage models are diaphragm actuated, temperature-indicating gages with built-in electrical switches for tripping alarms and/or shut-down devices.

Swichgage® instruments are built in the USA and have protected engines and equipment in applications such as oil and gas, marine, irrigation, construction and trucking applications to monitor engine coolant, crankcase oil, transmission oil and others for more than 80 years.

The gage mechanism is enclosed in a steel case coated to resist corrosion. A polycarbonate, break resistant lens and a polished, stainless steel bezel help protect this rugged, built-to-last instrument. These vapor-actuated gages feature a sealed capillary tube and a sensing bulb. When subjected to heat, the liquid in the sensing bulb changes to vapor creating pressure against the diaphragm mechanism. The diaphragm translates this vapor pressure into a mechanical gage reading.

The gage pointer acts as a temperature indicator and as one switch pole which completes a circuit when it touches the adjustable limit contact. Contact(s) are grounded through the Swichgage case. They have a self-cleaning motion to enhance electrical continuity.


Features:


  • Dial: White on black, dual scale °F/°C (others available)
  • Case: Plated steel; mounting clamp included (except direct mount models)
  • Bezel: Polished stainless steel, standard; others available
  • Pointer: Tempered nickel silver
  • Lens: Polycarbonate, high-impact
  • Sensing Element: Beryllium copper diaphragm.
  • Capillary*: PVC armored copper; 4 ft. (1.2 m). Stainless steel armor optional
  • Sensing Bulb*: Copper
  • Maximum Ambient Temperature Range: -40°F (-40°C) thru 150°F (66°C)
  • Adjustable Limit Contact: SPST contact; pilot duty only, 2 A @ 30 VAC/ VDC; Ground path through encasement. Normally Closed (NC) when the high limit is met. Normally Open (NO) when pointer is in normal operating range. Contacts are gold flashed silver.
  • Limit Contact Adjustment: By a 1/16 in. hex wrench through 100% of the scale
  • Limit Contact Wire Leads: 18 AWG (1.0 mm) 2 x 12 in. (305 mm)
  • Snap-Switch Wire Leads: 20 AWG (0.75 mm2) x 12 in. (305 mm)
  • Unit Weight:
    • 20 Series: 12.7 oz. (0.39 kg)
  • Unit Dimensions:
    • 20 Series: 4-3/4 x 4-3/4 x 2-3/4 in. (121 x 121 x 70 mm)


Literature:


  1. Sales Bulletin
  2. Installation Instructions


MurCal is an Authorized Distributor of Murphy by Enovation products.
MurCal provides experienced application and product support, before and after the sale.
