20TG-OS-220-6-1/2 Temperature Swichgage® (10702384)
20TG-OS-220-6-1/2: 2" Temperature Swichgage®; 130-220° F. temp range; gage-only model w/o contacts; oil sealed; 6 ft. capillary length (10702384)

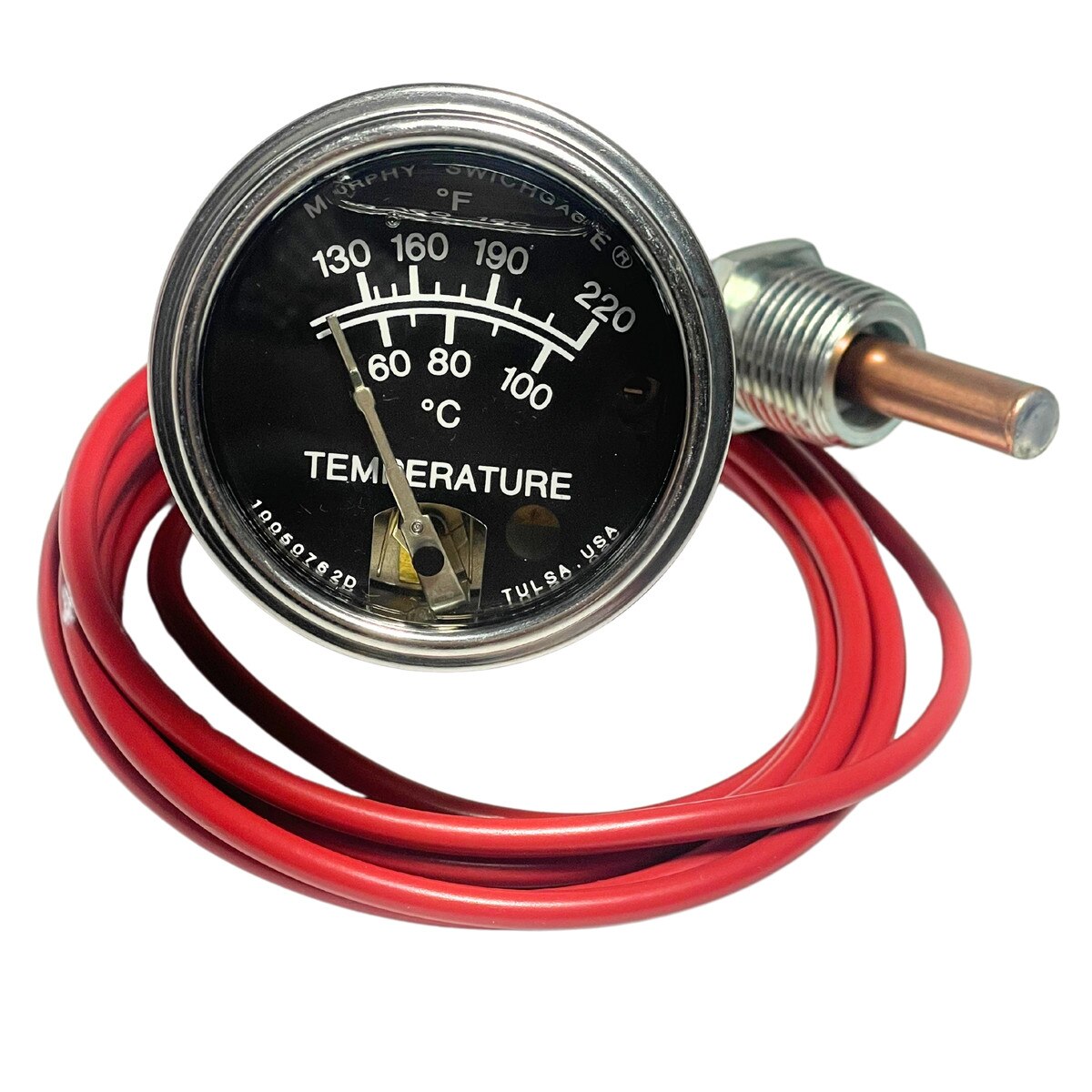

The Mechanical 130-220F Temperature Murphygage 2" with 6 Ft Capillary 20TG-OS-220-6-1/2 is diaphragm-actuated, temperature-indicating gage without contacts/switch. The gage mechanism is enclosed in a steel case coated to resist corrosion. A polycarbonate, break-resistant lens and a polished, stainless steel bezel help protect this rugged, built-to-last instrument.

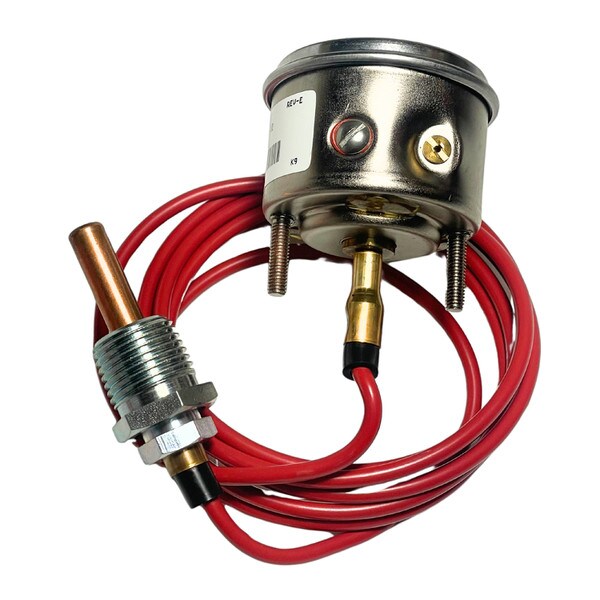

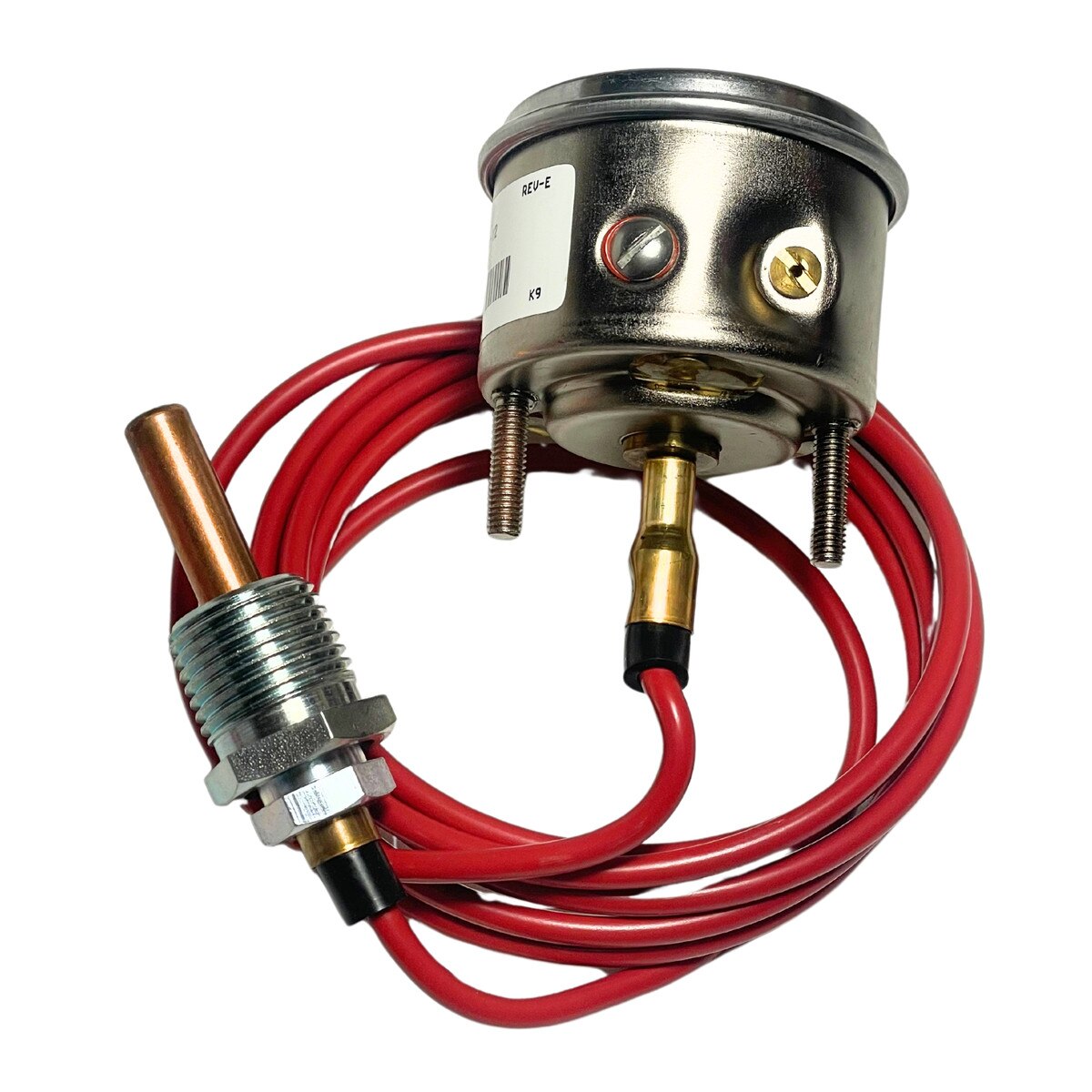

This vapor actuated gage features a sealed capillary tube and a sensing bulb. When subjected to heat, the liquid in the sensing bulb changes to vapor creating pressure against the diaphragm mechanism. The diaphragm translates this vapor pressure into a mechanical gage reading.
Applications: Industrial engines and equipment in Oil Field, Marine, Irrigation Construction and Trucking industries. Monitoring Engine Coolant, Crankcase Oil and Transmission Oil.
FEATURES:
- 2 inch/51 mm Dial
- Steel Case Coated to Resist Corrosion
- Polycarbonate, High-Impact Lens
- Polished Stainless Steel Bezel
- Indicating Gage
- Gage-only model without contacts
- OS = Oil Sealed (Silicone Oil)
Literature:
