20TH-320-8-M10 Temperature Swichgage® (10703116)

(0)No Reviews yet
$63.27
SKU: 20TH-320-8-M10 (10703116) *RATIONALIZED*
Price only valid for instock items. If you need additional items or there is no stock, please contact our MurCal customer service team for current pricing at sales@murcal.com or 661.272.4700.

Contact Our Sales Team 661-272-4700 or sales@MurCal.com

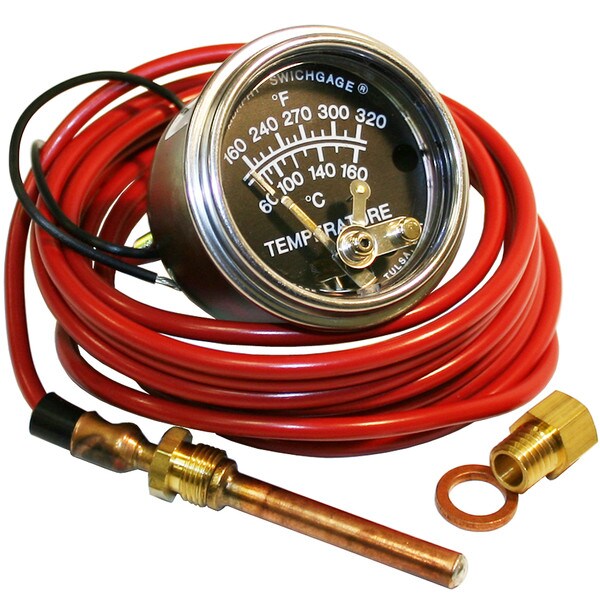

20TH-320-8-M10: 2" Cylinder Head Temperature Swichgage®; 160-320° F. temp range; 8 ft. capillary length; 10mm x 1.5 adapter nut (10703116)



The 20TH-320-8-M10 is a 2" Cylinder Head Temperature Swichgage® for use on air-cooled engines.
This model features a diaphragm-actuated, temperature-indicating gage, with a built-in electrical switch for tripping alarms and/or shutdown devices.
This model has a 8 foot capillary length and a temperature range from 160-320øF (71-160øC). The sensing bulb on this model comes standard fitted with a 5/8-18 union nut.
Included in the box is an Adapter Kit (10002450), M10 D or G Bulb with 10mm x 1.5 metric threading.
The gage mechanism is enclosed in a steel case coated to resist corrosion. A polycarbonate, break-resistant lens and a polished, stainless steel bezel help protect this rugged, built-to-last instrument. This vapor actuated gage features a sealed capillary tube and a sensing bulb.
When subjected to heat, the liquid in the sensing bulb changes to vapor creating pressure against the diaphragm mechanism. The diaphragm translates this vapor pressure into a mechanical gage reading.
Inside the 20TH-320-8-M10, the gage pointer acts as a temperature indicator and as one switch pole which completes a circuit when it touches the adjustable limit contact.
Contact(s) are grounded through the Swichgage® case. This gage has a self-cleaning motion to enhance electrical continuity.


Literature:



  1. Sales Bulletin
  2. Installation Instructions





 MurCal is an Authorized Distributor of Murphy by Enovation products.
MurCal provides experienced application and product support, before and after the sale.


For California customers: Prop 65 WARNING: This product may have been manufactured with or uses components that can expose you to chemicals which are known to the State of California to cause cancer. For more information go to www.p65warnings.ca.gov.
