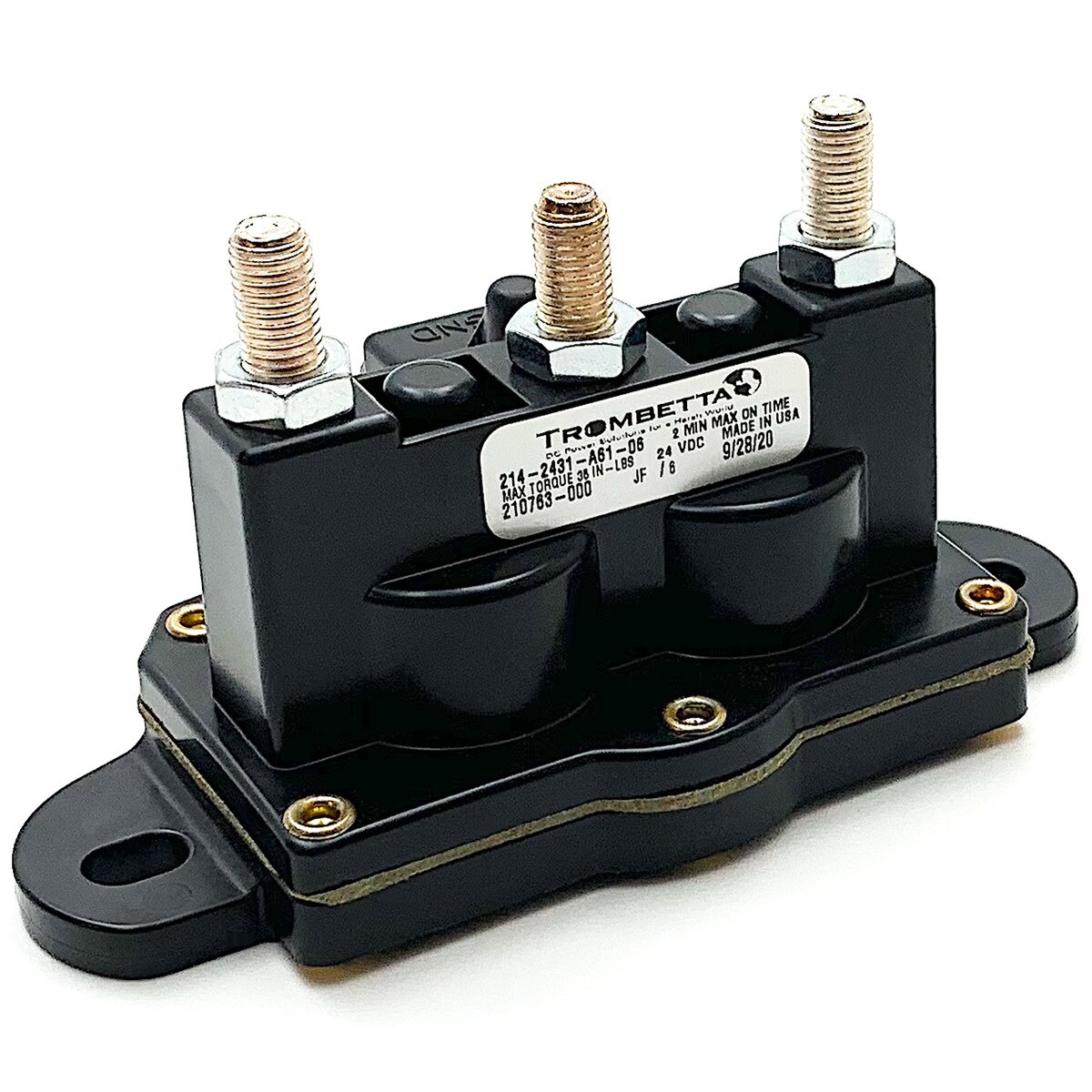

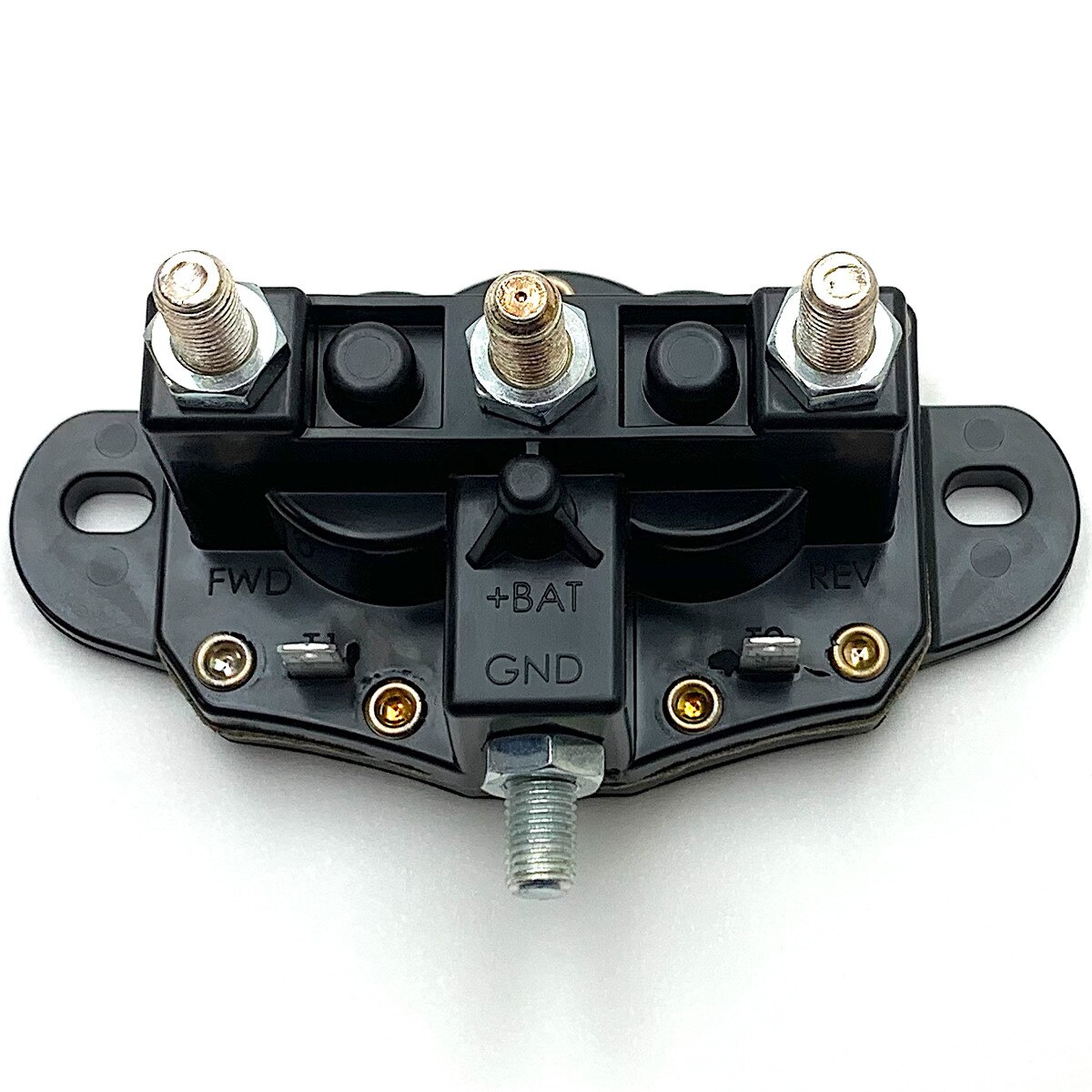

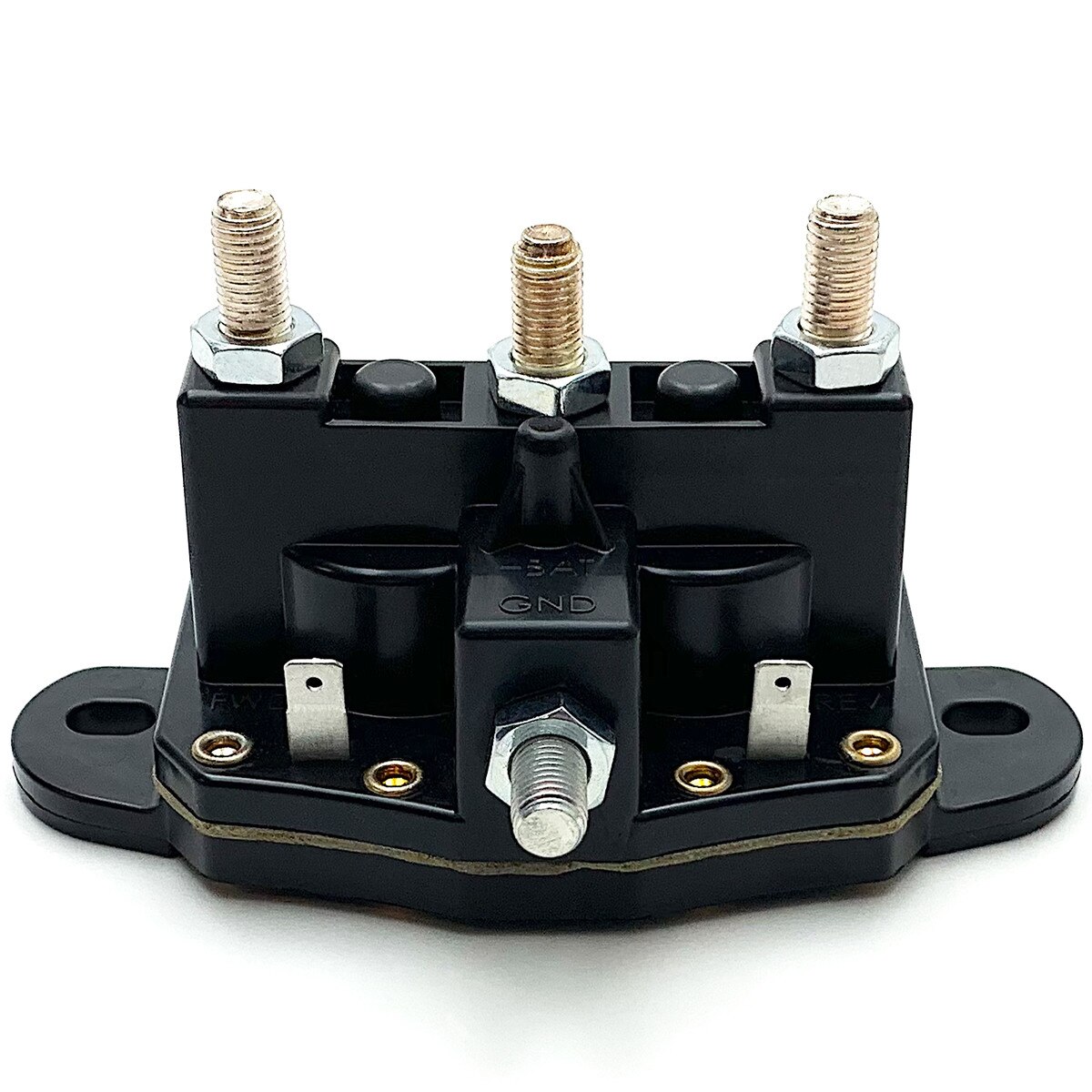

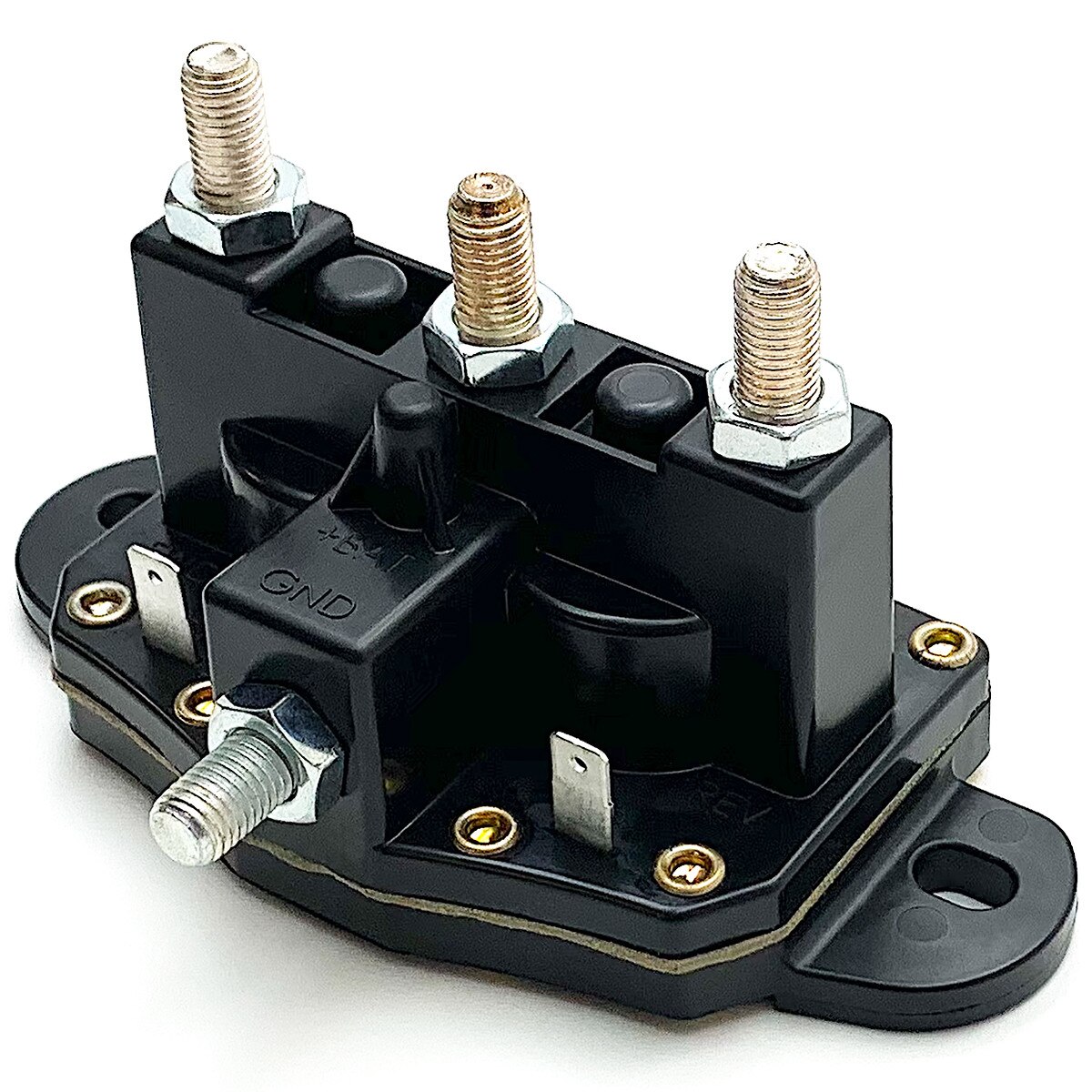

Trombetta Reversing Polarity 24VDC Contactor (214-2431-A61-06)

Reversing Polarity - 24VDC Contactor; (2) grounded coils, each with (1) 1/4" spade and a common 5/16-24 central ground; (2) 5/16-24 contact studs; 20% sustained duty (5 min. max.); silver-plated copper contacts, dust-resistant; standard molded bracket. (214-2431-A61-06)

By integrating two DC Contactors into a single housing unit, Trombetta has eliminated many costly materials and streamlined final product assembly and wire connection. Installation involves mounting a single contactor, then making six easy lead connections.

This model is popular in the Recreational Vehicle industry for service replacement use on slide-out hydraulic power units and hydraulic leveling systems, as this model reverses a permanent magnetic motor.

The "-06" suffix to the model number is for a different internal head spring which allows for a greater inrush.

Features:

•  Coil Terminals: Two (2) grounded coils. Each coil has (1) 1/4" spade and a common 5/16-24 central ground
•  Duty Cycle: 20% sustained (2 min. max on time)
    •  IMPORTANT: 2 minutes (120 seconds) “ON TIME” requires a MINIMUM of 2.5 minutes (150 seconds) OFF before energizing the coil again
    •  IMPORTANT: 2-1/2 minutes (150 seconds) “ON TIME” requires a MINIMUM of 47.5 minutes OFF before energizing the coil again
•  Contact Material: Alloy Silver Plated
•  Voltage: 24 Volt
•  Molded Bracket
•  Seal is resistant to dust and liquid

PLEASE NOTE: To protect your coil terminals from the weather, consider adding the mounting hardware and insulator boot kit shown below.

Literature:

1. Sales Bulletin: Reversing Polarity Family
2. Dimensional Assembly D03508: 214 Series RP Contactor
3. Dimensional Assembly D04139: 214 Series RP Contactor
4. Installation Instructions: Reversing Polarity Contactor
5. Old Part Number Conversion Chart
6. How To Order This Part
