J1939 12 Output Module (99-0530)
J1939 High Current 12 Output Module (99-0530)

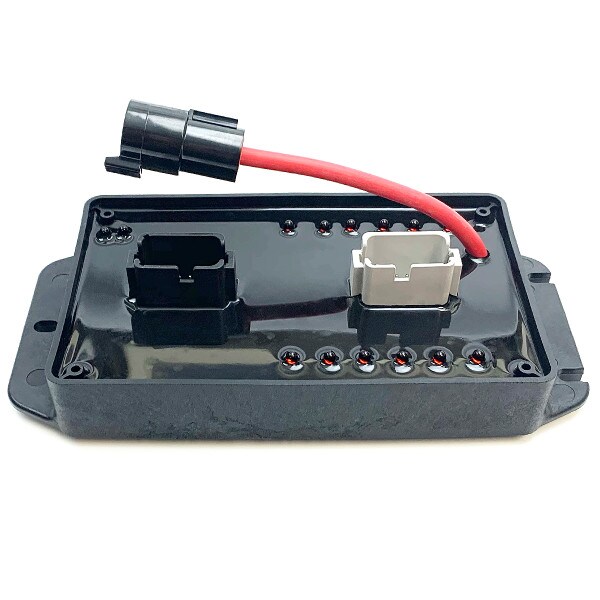

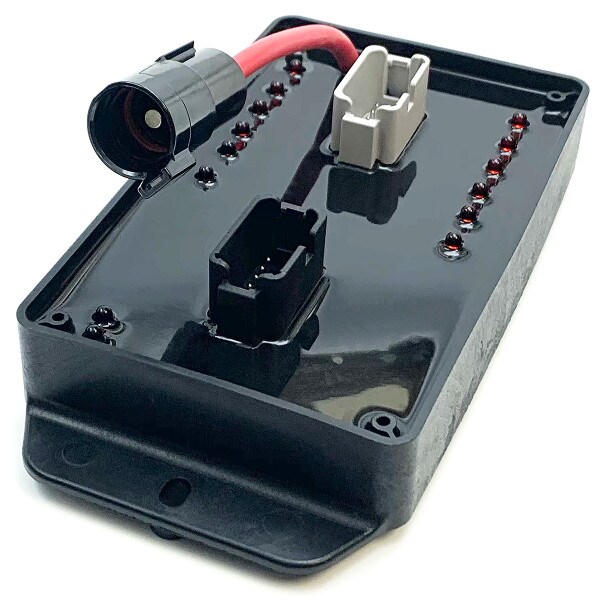

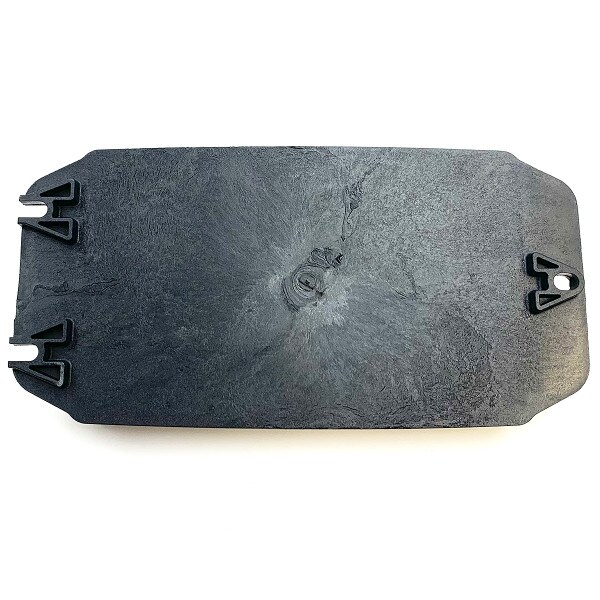

Trombetta’s Twelve Output J1939 Module provides 8 outputs rated for 13A and 4 outputs rated for 3A, each with short circuit and overload protection as well as open load detection. It has an 8–32V operating voltage range, LED output status for all 12 outputs, utilizes sealed automotive connectors and is potted to protect the module in very harsh conditions. The power connector is used to connect the device to both the battery and the load. Each pin of the power connector is rated to 25A.
Product Features:
• For 12VDC systems (operating voltage supply range 8-16VDC)
• Twelve sourcing outputs
• Outputs [1] – [8] Rating (per output): 13A (maximum) continuous current
• Outputs [9] – [12] Rating (per output): 3A (maximum) continuous current
• System Total Maximum Current Draw: 100A (reference the Continuous Operation Derating Curve)
• Each output has short circuit and overcurrent detection and protection
• Four addressing pins that adjust CAN-ID when grounded via external harnessing
• CAN Baud Rate: 250k
• CAN SAE J1939 communications protocol
• IP67 Rated with properly mated connectors
• FET Battery Input:

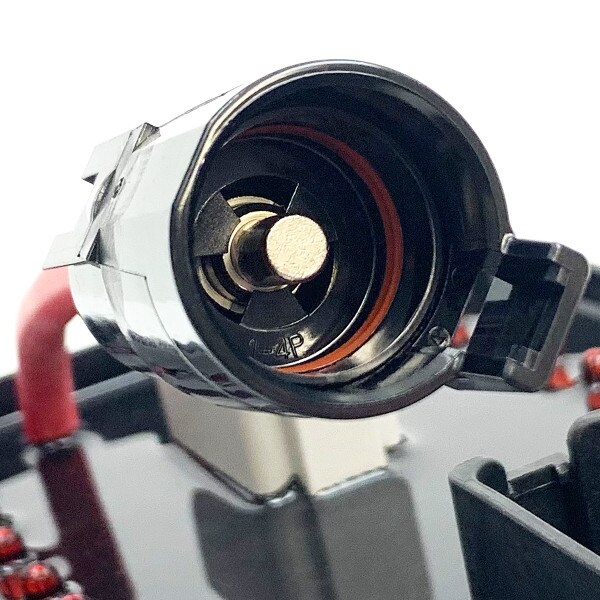

Connector: Deutsch DTHD04-1-4P, Contact 0460-204-0490
Mating Connector: Deutsch DTHD06-1-4S, Socket 0462-203-08141
