75160 (30700020): Swichgage® Shutdown Panel

(0)No Reviews yet
SKU: 75160 (30700020)

Contact Our Sales Team 661-272-4700 or sales@MurCal.com

75160 Swichgage® Shutdown Panel (30700020)

The 75160 12 Volt Swichgage® Shutdown Panel is specifically configured for irrigation engines and includes a loss of pump discharge pressure Swichgage®.

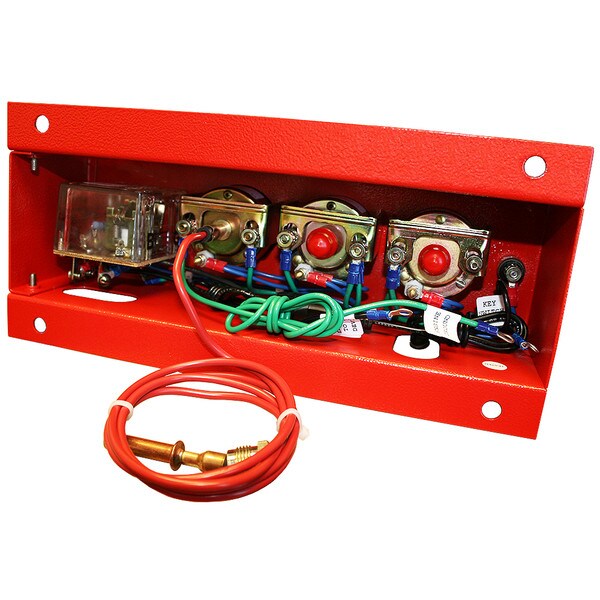

The panel is enclosed on top, bottom and both ends. Mounting flanges extend on top and bottom. The back of the panel is open, and access holes are in the bottom.

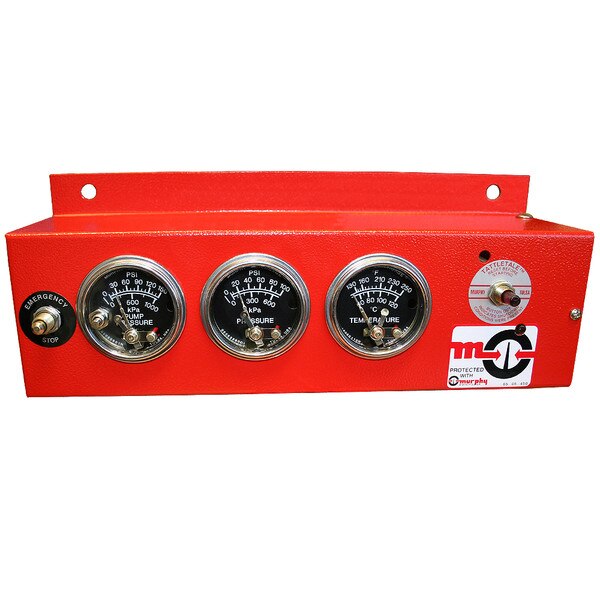

The 75160 includes low oil pressure, high coolant temperature, low pump pressure Swichgage® instruments, a magnetic switch and an emergency stop button.

Low Lube Oil Pressure Swichgage®: 0-100 psi (0-689 kPa) [0-6.89 bar]; 1/8 NPT process connection.
Low Pump Pressure Swichgage®: 0-150 psi (1.03MPa) [10.34 bar]; 1/8 NPT process connection.
High Coolant Temperature Swichgage®: 130-250°F (54-121°C); 48 inch (1.2 m) capillary; 1/2 NPT process connection. 518PH-12 Magnetic Switch (12 Volt). PB128S Emergency stop button.

NOTE: This is a 12 Volt panel. If your application requires a 24 Volt panel, please contact us for a quote.
