WAI7 (30700017): Swichgage® Shutdown Panel for Mobile Equipment

(0)No Reviews yet
SKU: WAI7 (30700017)

Contact Our Sales Team 661-272-4700 or sales@MurCal.com

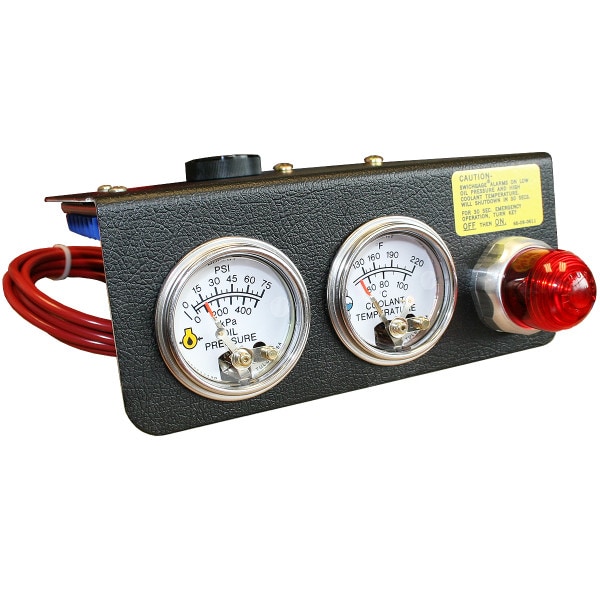

WAI7: Swichgage® Shutdown Panel for mobile equipment; includes oil pressure and coolant temperature gages. (30700017)

The WAI7 Swichgage® Shutdown Panel offers engine protection for on and off road mobile equipment. You get accurate engine readings and time-delayed automatic shutdowns.
A flashing light and MINI-SIREN® signal a warning before the shutdown. The WAI7 panel is a complete diagnostic, engine protection system. Any vehicle or engine can be monitored and in case of potentially damaging conditions an alarm will operate before the engine is shut down.

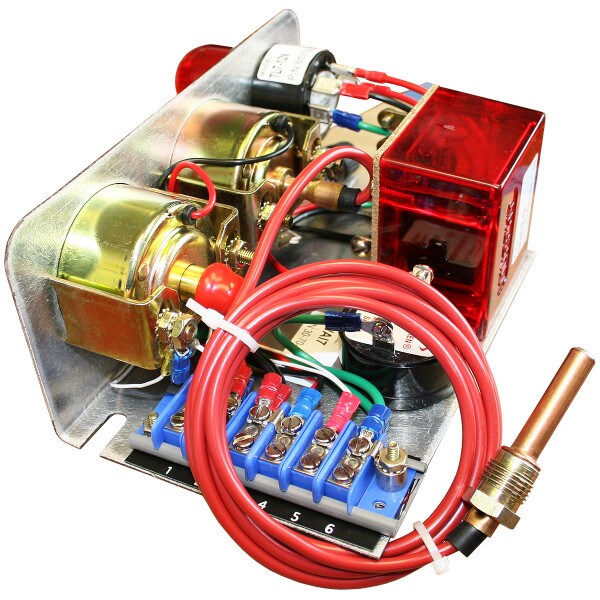

The WAI7 includes low oil pressure Swichgage® and high coolant temperature Swichgage® instruments, a magnetic switch, a flasher and a siren.

Low Lube Oil Pressure Swichgage®: 0-100 psi (0-689 kPa) [0-6.89 bar]; 1/8 NPT process connection.
High Coolant Temperature Swichgage®: 130-250øF (54-121øC); 72 inch (1.8 m) capillary; 1/2 NPT process connection.
760AF Magnetic Switch with 30 second time delay for alarm before shutdown; 12VDC SAH MINI-SIREN® TL7 Flashing alarm light



  1. Sales Bulletin
  2. Installation Instructions



MurCal is an Authorized Distributor of Murphy by Enovation products.
MurCal provides experienced application and product support, before and after the sale.
