A20T-250-40-1/2 Temperature Swichgage® (10703171)

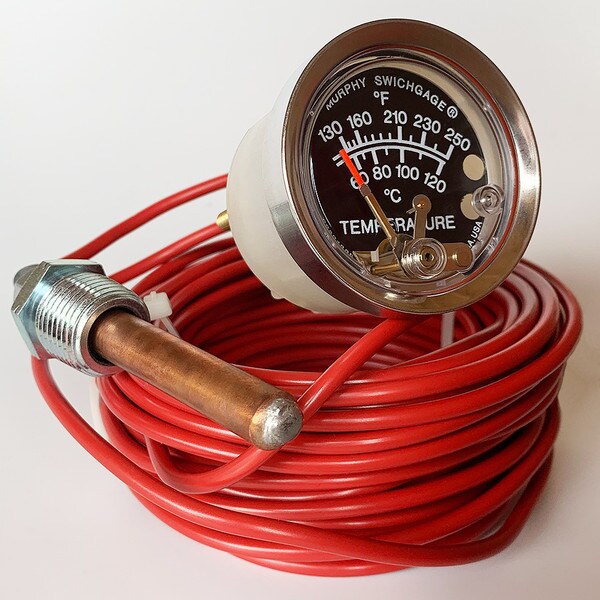

A20T-250-40-1/2: 2" Temperature Swichgage®; Polycarbonate case; 130-250°F temp range; 40 ft capillary length  (10703171)

The A20 Series (2 inch/51 mm dial) Swichgage models are diaphragm-actuated, temperature-indicating gages, with built-in electrical switches for tripping alarms and/ or shutdown devices.
All models of these rugged, built-to-last instruments are fully sealed from the environment by the unique combination of a polycarbonate case and lens, a polished stainless steel bezel and O-ring seals. These vapor/pressure actuated gages feature a sealed capillary tube and a sensing bulb. When subjected to heat, the liquid in the sensing bulb changes to vapor creating pressure against a diaphragm mechanism. The diaphragm translates this vapor pressure into a mechanical gage reading.
For series A20T, the gage pointer acts as a temperature indicator and as one switch pole which completes a circuit when it touches the adjustable limit contact. Contact(s) are isolated from ground. They have a self-cleaning motion to enhance electrical continuity


Literature:



1. Sales Bulletin
2. Installation Instructions
3. Sensing Bulb/Scale/Capillary Length Combinations
4. Thermowell Specifications
