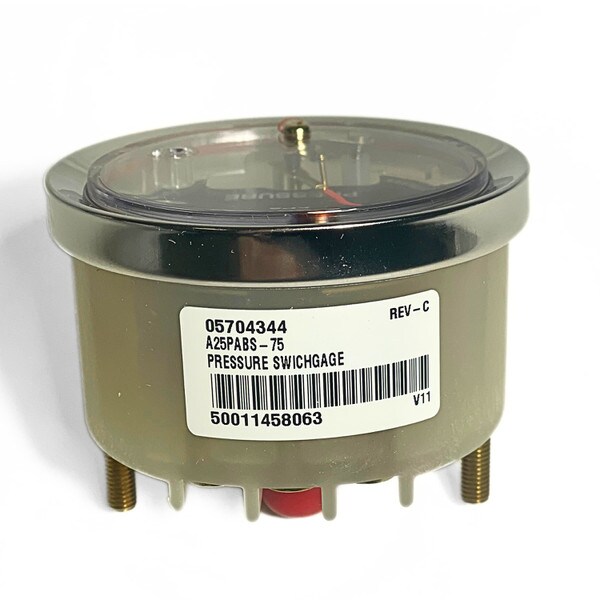

A25PABS-75 Pressure Swichgage® (05704344)
A25PABS-75: 2" Pressure Swichgage® w/ pre-alarm; polycarbonate case; 0-75 psi (05704344)

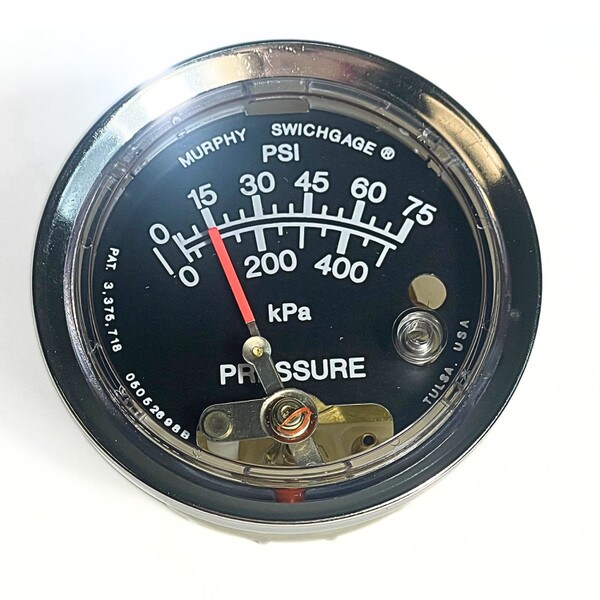

The A25PABS-75 Pressure Swichgage® is a 2" dial, diaphragm-actuated pressure-indicating gage with a built-in electrical limit switch, which is used for tripping alarms and/or shutdown devices. This dual-scale instrument has a range of 0-75 psi.
he gage mechanism is enclosed in a polycarbonate, break-resistant case and lens. A polished stainless steel bezel and O-ring seals help protect this rugged instrument from the external environment.
Accuracy and protection from moderate overpressure is assured by a unique, unitized diaphragm chamber. A built-in pulsation dampener helps eliminate pointer flutter and is removable for cleaning.
Inside the A25PABS-75, the tempered nickel silver gage pointer acts as a pressure indicator and as one switch pole which completes a circuit when it touches the adjustable limit contact.
Contacts have a self-cleaning motion to ensure electrical continuity.
The A25PABS-75 Pressure Swichgage® was specifically designed to protect engines and equipment in oil field, marine, irrigation, construction and trucking applications by monitoring engine lube pressure, water pump pressure, hydraulic pressure and air pressure.
The A25PABS SWICHGAGE® is the same as the A20P and A25P with internal SPDT snap-switch for pre-alarm.
