A25T-300-12-1/2 Temperature Swichgage® (10703705)
A25T-300-12-1/2: 2-1/2" Temperature Swichgage®; 140-300°F temp range; 12 ft capillary length (10703705)

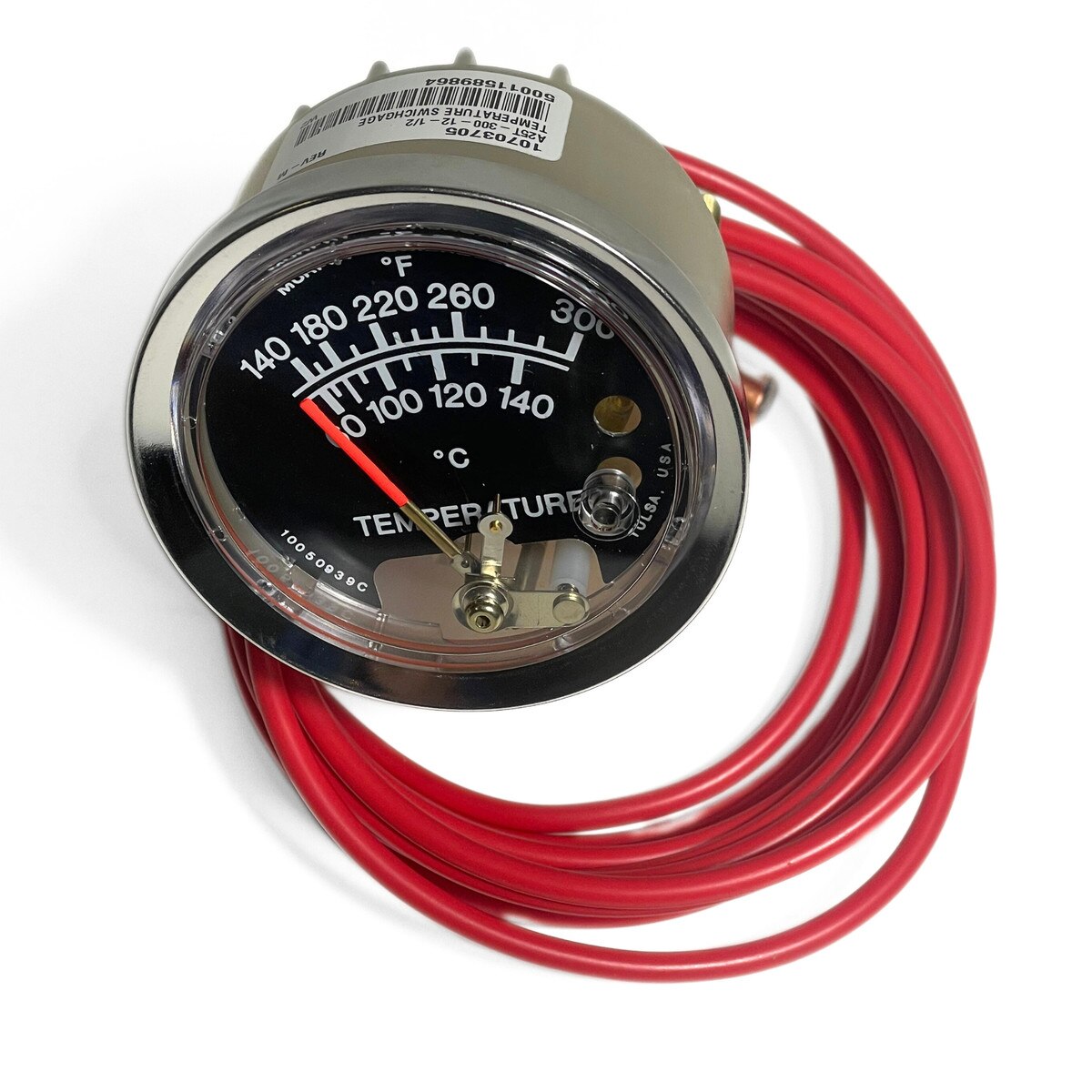

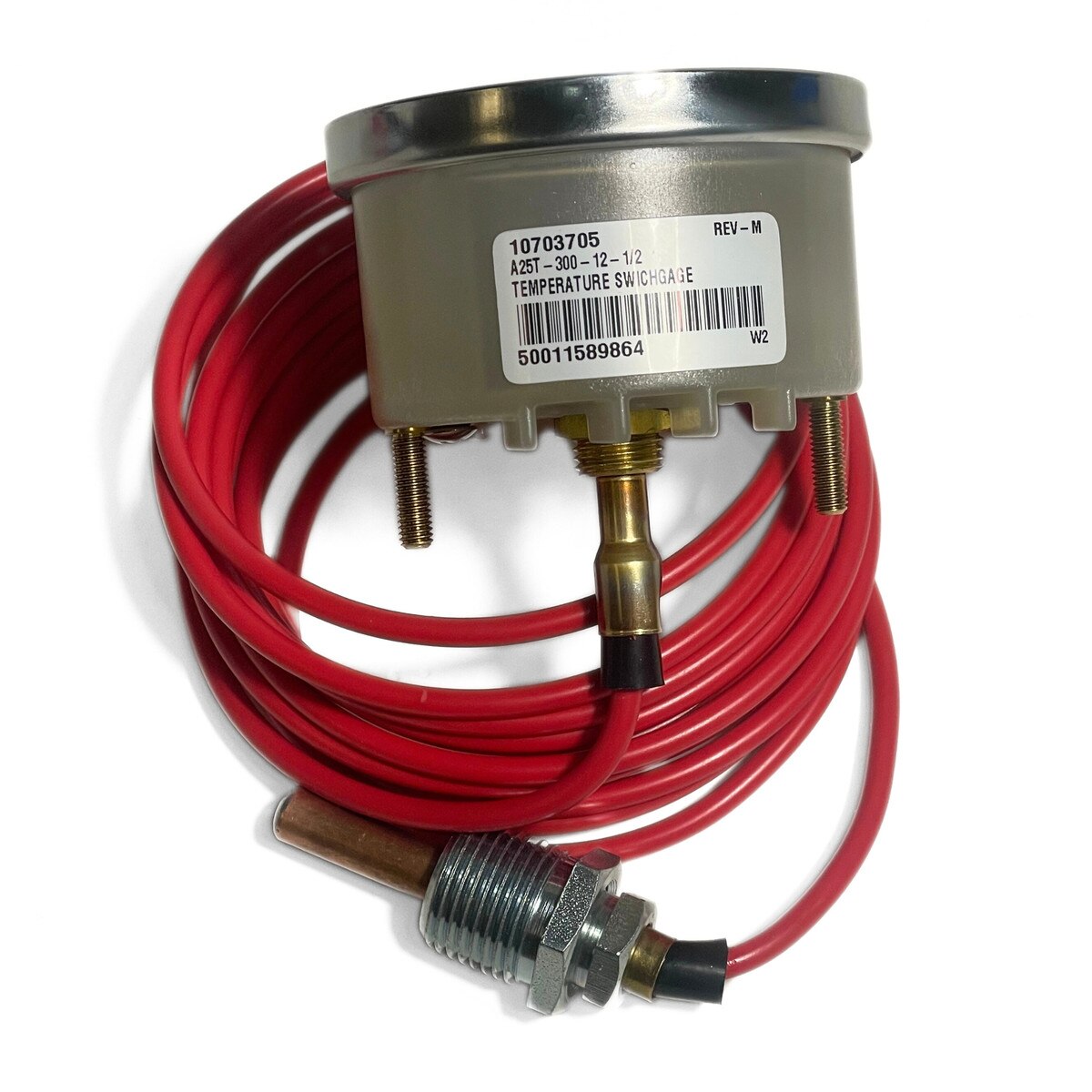

The Murphy 140-300F Temperature Swichgage 2.5 inch with 12 Ft Capillary A25T-300-12-1/2 is a diaphragm-actuated, temperature-indicating gage with built-in electrical switch for tripping alarms and/or shutdown devices. This rugged, built-to-last instrument is fully sealed from the environment by the unique combination of a polycarbonate case and lens, a polished stainless steel bezel, and O-ring seals. This vapor/pressure actuated gauge features a sealed capillary tube and a sensing bulb. When subjected to heat, the liquid in the sensing bulb changes to vapor creating pressure against a diaphragm mechanism. The diaphragm translates this vapor pressure into a mechanical gage reading.
The gage pointer acts as a temperature indicator and as one switch pole which completes a circuit when it touches the adjustable limit contact. Contact(s) are isolated from ground. They have self-cleaning motion to enhance electrical continuity. Applications for A20 series temperature swichgage instruments include: engines and equipment in oil field, marine, irrigation, construction and trucking industries. Monitoring engine coolant temperature, crankcase oil and transmission oil.
PRODUCT FEATURES:
- 2-1/2 inch/64 mm dial
- O-ring Seals
- Polished Stainless Steel Bezel
- Corrosion Resistant Polycarbonate Case
- Indicating Gage and Limit Switch
- Switch Can Activate Alarms and/or Shut Down Equipment
- Contact(s) Isolated From Ground
Literature:
- Sales Bulletin
- Installation Instructions
- Sensing Bulb/Scale/Capillary Length Combinations
- Thermowell Specifications
