A25TEF-160-25-1/2-SR125 Temperature Swichgage® (10090140) *SPECIAL ORDER ITEM*
A25TEF-160-25-1/2-SR125 2.5" Temperature Swichgage®; internal SPDT snap-switch; 160 temp range; 25 ft capillary; Set Point, Rising @ 125 F (10090140)
———
*SPECIAL ORDER ITEM*
Please Allow Approx. 4 Weeks For Delivery Of This Product
———

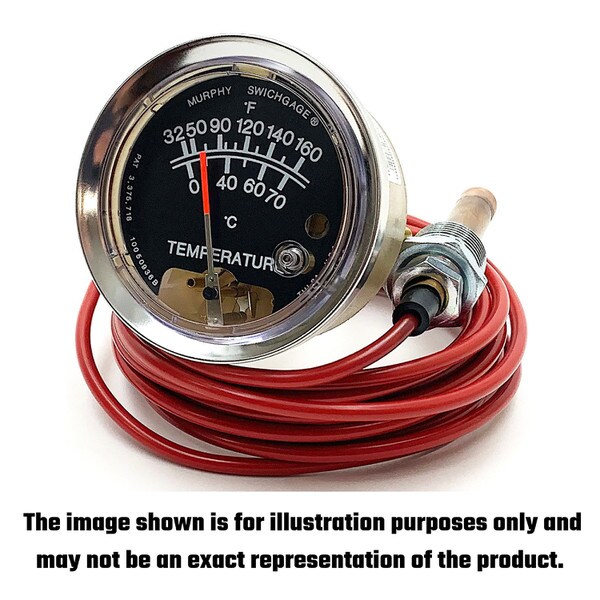

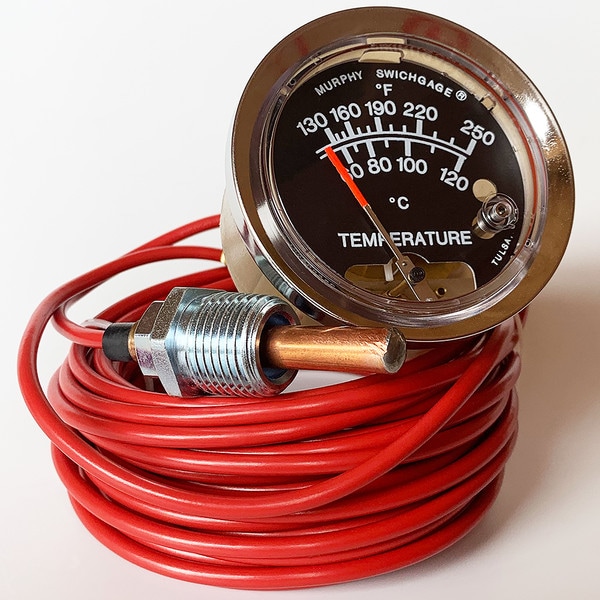

A25TEF-160-25-1/2-SR125 Temperature Swichgage® is a diaphragm-actuated, 2-1/2” (64 mm) dial temperature-indicating gage, with a built-in electrical switch for tripping alarms and/or shutdown devices. This rugged, built-to-last instrument is fully sealed from the environment by the unique combination of a polycarbonate case and lens, a polished stainless steel bezel, and O-ring seals.
“E” suffix = has an internal snap-acting SPDT switch.
“F” suffix = includes FS ground stud.
For series A25T, the gage pointer acts as a temperature indicator and as one switch pole which completes a circuit when it touches the adjustable limit contact. Contact(s) are isolated from ground. They have a self-cleaning motion to enhance electrical continuity. When subjected to heat, the liquid in the sensing bulb changes to vapor creating pressure against the diaphragm mechanism. The diaphragm translates this vapor pressure into a mechanical gage reading.
Literature:
- Sales Bulletin
- Installation Instructions
- Sensing Bulb/Scale/Capillary Length Combinations
- Thermowell Specifications
