AT-30-C Tachometer (20700248)
Murphy by Enovation AT-30-C (20700248) Tachometer

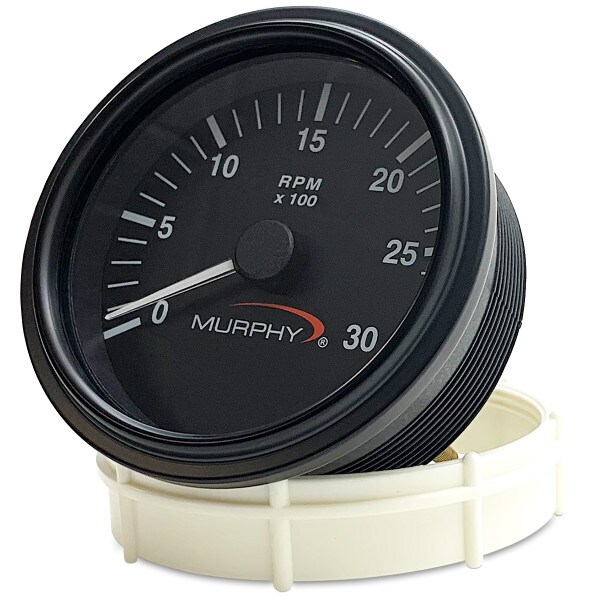

The AT Series tachometer is a rugged instrument with solid-state circuitry for indication of engine RPM.
It is equipped with a ring nut for mounting into a standard 3-3/8 in. (86 mm) dash mounting hole. A full 240° sweep of the pointer gives an accurate indication on a large easy–to–read scale, and the dial can be illuminated for night reading.
- Improved quality
- New, easy one-button calibration procedure
- Every model will accept all signal sources: alternator, magnetic pickup or ignition

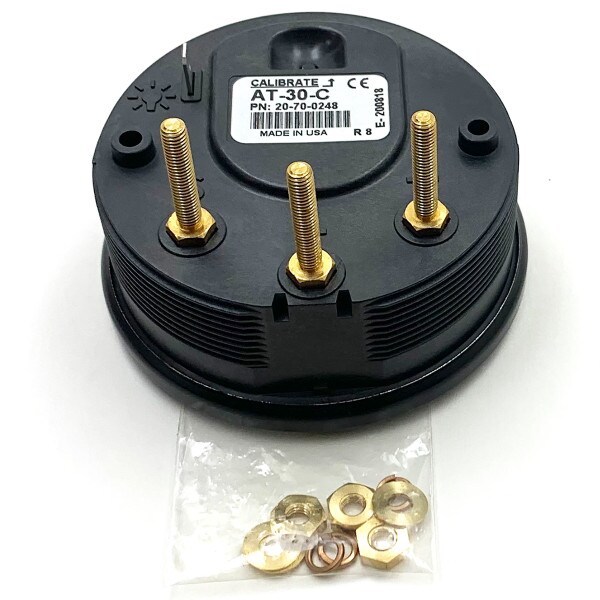

- Easy ring clamp for installation
- LED backlight
Features
- Power Input: 10-32 VDC (100 mA max at 32 VDC, does not include backlight)
- Backlight: LED, Red (75 mA max at 32 VDC)
- Accuracy:
- Tachometer: +2% full scale
- Hourmeter: +/- 0.02%
- Temperature Range: -40 to 185° F (-40 to 85° C)
- Dial (Face Plate): 240° sweep with white numerals
- Bezel: 304 stainless steel
- Scale: 0-3000 RPM
- Case Material: Nylon, 12% glass filled
- Hourmeter Range: 99999.9 hours in 0.1 increments.
- Electromagnetic Compatibility: 2004/108/EC
- IP66 front and IP32 back (vented case)
- RoHS Compliant
