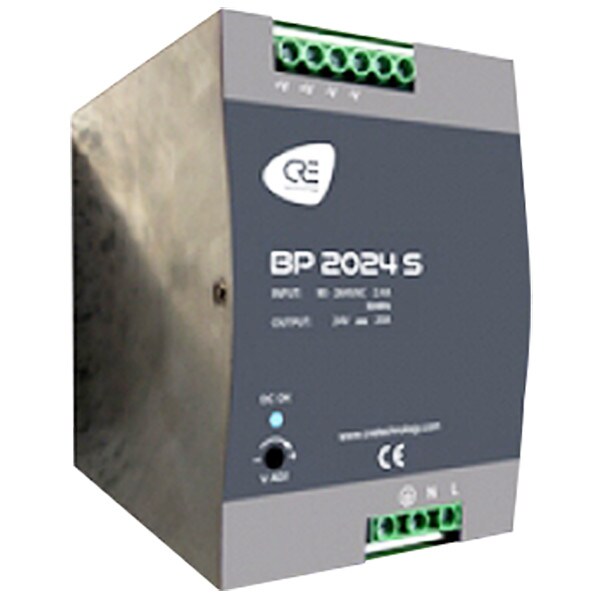

BP Range Battery Charger; 24V; 20A (BP2024S)

(0)No Reviews yet
$288.49
SKU: CRE - BP2024S: BP Range Battery Charger

Contact Our Sales Team 661-272-4700 or sales@MurCal.com

BP Range Battery Charger; 24V; 20A (BP2024S)

Classic, Heavy Duty & Reliable

CRE’s 24 Volt BP2024S battery charger offers a range of input voltages from 90 to 264VAC (127-370VDC). This model is rated at 24V of DC voltage with a rated current of 20A and a current range of 0 - 20A. It integrates a permanent short-circuit protection that accepts the electrical starters inrush current without damage. The ergonomic design and din rail support allow you to easily integrate it into your plant.
Rated power is 480W with a maximum ripple & noise of 80mVp-p. Ripple and noise are measured at 20MHz of bandwidth by using a 12” twisted pair wire terminated with a 0.1 uf & 47 uf parallel capacitor. Charger dimensions are 3.37” (85.5mm) W x 4.93” (125.2mm) H x 5.06” (128.5mm) D.

CRE is so confident in the quality and reliability of its battery chargers that we offer you a 3-year warranty for each product purchased. Thanks to a heavy-duty case and its free air convection cooling device, CRE battery chargers can operate in extreme temperature situations (between -20°C and +60°C).



Features


   •  Protections: short circuit, overload, over-voltage, over-temperature
   •  Battery charger with fault output relay, 24V 20A, single phase
   •  Switching frequency architecture
   •  Monophase
   •  Cooling by free air convection
   •  LED indicator for power on
   •  100% full load burn-in test
   •  Rail DIN mounting: TS-35/7.5 or TS-35/15
   •  3-year warranty


Literature

  1. Battery Chargers Sales Bulletin
  2. BP Series Product Specifications
  3. BP Battery Chargers Technical Documentation

MurCal is an Authorized Distributor of CRE Technology products.
MurCal provides experienced application and product support, before and after the sale.


For California customers: Prop 65 WARNING: This product may have been manufactured with or uses components that can expose you to chemicals which are known to the State of California to cause cancer. For more information go to www.p65warnings.ca.gov.
