BP Range Battery Charger; 24V; 40A; 3 phase (BP4024T)

(0)No Reviews yet
$750.49
SKU: CRE - BP4024T: BP Range Battery Charger- Closeout

This item is IN STOCK

Current Stock: 13

BP Range Battery Charger; 24V; 40A; 3 phase (BP4024T)

CRE’s 24 Volt BP4024T battery charger offers a range of input voltages from 340 to 550VAC (three phase). This model is rated at 24V of DC voltage with a rated current of 40A and a current range of 0 - 40A. It integrates a permanent short-circuit protection that accepts the electrical starters inrush current without damage. The ergonomic design and din rail support allow you to easily integrate it into your plant.
Rated power is 960W with a maximum ripple & noise of 80mVp-p. Ripple and noise are measured at 20MHz of bandwidth by using a 12” twisted pair wire terminated with a 0.1 uf & 47 uf parallel capacitor. Charger dimensions are 10.86” (276mm) W x 4.93” (125.2mm) H x 3.94” (100mm) D.

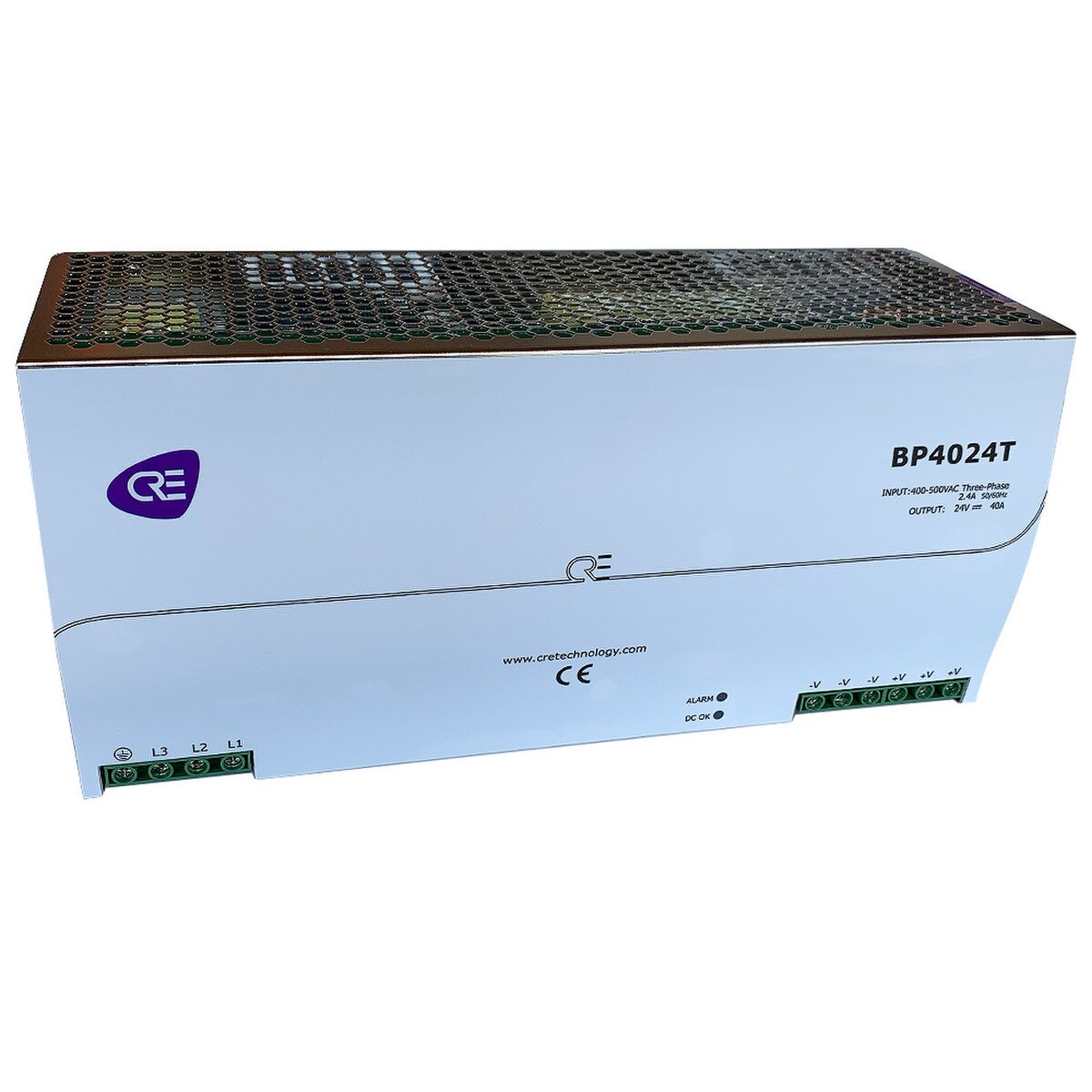

Larger Image: Front View of Battery Charger


CRE is so confident in the quality and reliability of its battery chargers that we offer you a 3-year warranty for each product purchased. Thanks to a heavy-duty case and its free air convection cooling device, CRE battery chargers can operate in extreme temperature situations (between -20°C and +60°C).


Features

   •  Protections: short circuit, overload, over-voltage, over-temperature
   •  Battery charger with fault output relay, 24V 40A, three phase
   •  Switching frequency architecture
   •  Three-phase
   •  Cooling by free air convection
   •  LED indicator for power on
   •  100% full load burn-in test
   •  Rail DIN mounting: TS-35/7.5 or TS-35/15
   •  3-year warranty


Literature


  1. Battery Chargers Sales Bulletin
  2. BP Series Product Specifications
  3. BP Battery Chargers Technical Documentation

MurCal is an Authorized Distributor of CRE Technology products.
MurCal provides experienced application and product support, before and after the sale.
