BP+305 Range Battery Charger; 24V; 10A (BP+1024M-305)

(0)No Reviews yet
$189.99
SKU: CRE - BP+1024M-305: BP+305 Range Battery Charger

This item is IN STOCK

Current Stock: 40

BP+305 Range Battery Charger; 24V; 10A (BP+1024M-305)

CRE’s 24 Volt BP+ 305 Range battery charger offers a range of input voltages in monophase. This model is rated at 24V of DC voltage with a rated current of 10A and a current range of 0 - 10A.
Rated power is 240W with a maximum ripple & noise of 100mVp-p. Ripple and noise are measured at 20MHz of bandwidth by using a 12” twisted pair wire terminated with a 0.1 uf & 47 uf parallel capacitor. Charger dimensions are 2.48” (63mm) W x 4.93” (125.2mm) H x 4.47” (113.5mm) D.

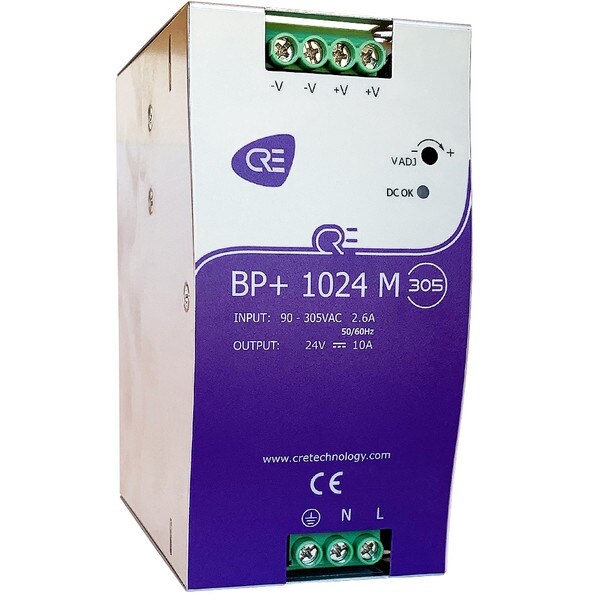

Larger Image: Front View of Battery Charger


Features:


  • Battery Charger (optimized size) 24VDC - 10A single phase,
  • Voltage input: 90 to 305VAC
  • Rail DIN mounting,
  • Switching frequency architecture.

Protections:


  • Short circuit,
  • Overload,
  • Overvoltage and over temperature,
  • Diode integrated,
  • 3 years warranty.



Literature

  1. Battery Chargers Sales Bulletin
  2. BP+305 Series Specifications
  3. BP Battery Chargers Technical Documentation

MurCal is an Authorized Distributor of CRE Technology products.
MurCal provides experienced application and product support, before and after the sale.
