BPRB Boost Mode Range Battery Charger; 24V; 20A (BPRB2024M)
BPRB Boost Mode Range Battery Charger; 24V; 20A (BPRB2024M)
Secure and Reliable, with Safety Relay & Boost Mode

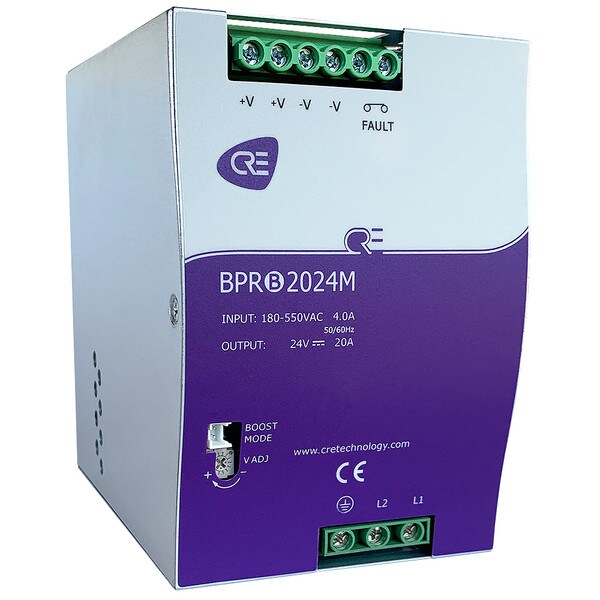

CRE’s 24 Volt BPRB2024M battery charger offers a range of input voltages from 180 to 550VAC. This model is rated at 24V of DC voltage with a rated current of 20A and a current range of 0 - 20A. It integrates a permanent short-circuit protection that accepts the electrical starters inrush current without damage. The ergonomically compact design and din rail support allow you to easily integrate it into your plant.
Rated power is 480W with a maximum ripple & noise of 150mVp-p. Ripple and noise are measured at 20MHz of bandwidth by using a 12” twisted pair wire terminated with a 0.1 uf & 47 uf parallel capacitor. Charger dimensions are 3.37” (85.5mm) W x 4.93” (125.2mm) H x 5.06” (128.5mm) D. The design includes a Fail Output Relay, and a Boost Mode Input.
At CRE TECHNOLOGY, we are so confident in the quality and reliability of our battery chargers that we are pleased to offer you a 3-year warranty for each product purchased.
Features
- Battery charger with FAULT output relay, 24V 20A.
- Single Phase
- Boost mode input feature
- Rail DIN mounting, switching frequency architecture, protection: short circuit, overload, overvoltage, overtemperature.
- 3 years warranty
Literature
- Battery Chargers Sales Bulletin
- BPRB Series Product Specifications
- BP Battery Chargers Technical Documentation
- Case Study: Off-Power Generation Engine Application
- Case Study: Mega Power Plant Application
MurCal is an Authorized Distributor of CRE Technology products.
MurCal provides experienced application and product support, before and after the sale.
