CANBridge (79700188)

CANBridge Configurable Module (79700188)

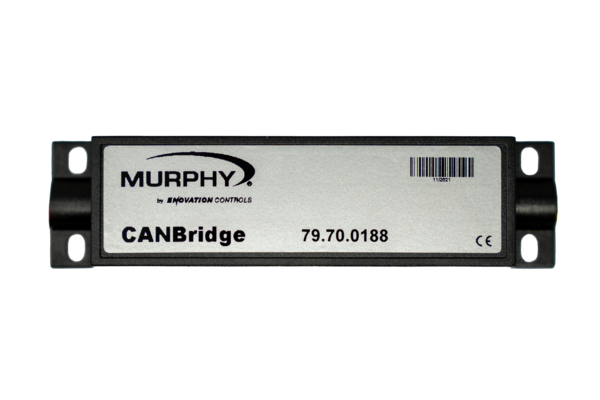

The Enovation Controls CANBridge is a compact module designed to enable the exchange of CAN communication data between two CAN networks. This can facilitate data exchange between networks operating at different baud rates. A software configuration tool simplifies setup and allows the user to save configuration settings in a file for future use.

CANBridge can be configured to allow the exchange of all CAN messages between the two networks, limit data exchange in one direction only, or filter bidirectionally on 11 or 29 bit identifiers. Additionally, the unit allows for using SAE J1939/NMEA2000 rules. J1939 data can be filtered on source address and PGN independently in both directions. This filtering supports up to 16 combinations of source address and PGN. NMEA2000 has the same options for filtering as J1939 but adds a method for each of the 16 filters to reduce CAN traffic by retransmitting only every nth message. The NMEA filters also support fast-packet.

CANBridge is compact and light enough for inclusion in many wiring harnesses, but can also be surface mounted via four fixing holes. The case is fully sealed in epoxy resin for high impact and environmental resistance.

Features:

• Termination:Selectable independent termination of CAN 1 & CAN 2
• Baud Rate: Configurable independent baud rate of CAN 1 & CAN 2 (250 Kbps, 500 Kbps, 1 Mbps)
• Filtering: Selectable filtering is possible in each direction. Filtering via source address, PGN, Identifier length (11 or 29 bit), and up to 16 rules per direction for SAE J1939 or NMEA 2000.
• Retransmit: The unit supports the option to retransmit messages using a different source address.
• NMEA: The 16 rules based filters include additional support for transmitting only every nth message to reduce CAN traffic. The filters also. include an option for fast packet support.
