Sender CAN® SAE J1939 Input and Output Module (78700604)
Sender CAN® SAE J1939 Input and Output Module (78700604)

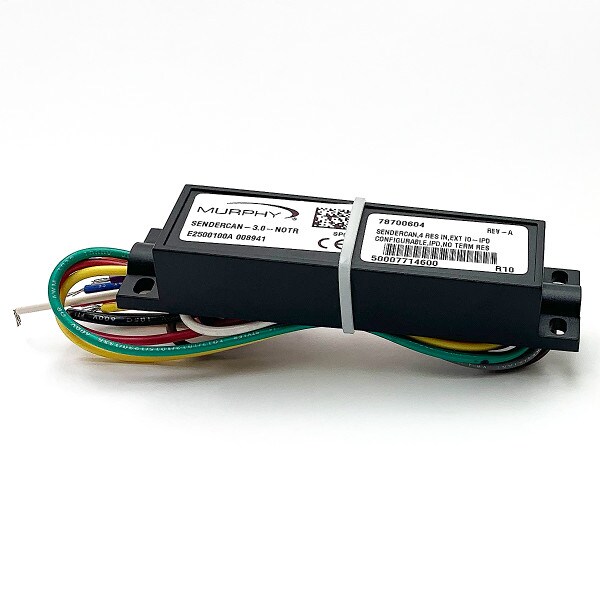

The SenderCAN® is a compact, encapsulated input and output module for J1939 CAN bus systems. SenderCAN allows the integration of analog and digital measurement, control and indicating devices into modern CAN and ECU-based engines and systems.
SenderCAN has up to four inputs and two outputs, each of which is factory configured to OEM requirements. Inputs can be set for use with resistive sender or switch signals, which are translated into J1939 CAN bus messages with appropriate PGN address, data scaling and transmission rate. Outputs can be configured to drive gages, lamps, relays or other control devices based on received J1939 data.
Standard versions are available for use with common senders (for example, the FuelCAN™ and MeCAN™), but SenderCAN is primarily intended for OEM-specified input, output and CAN bus requirements. Please note that minimum order quantities or charges apply for custom solutions.

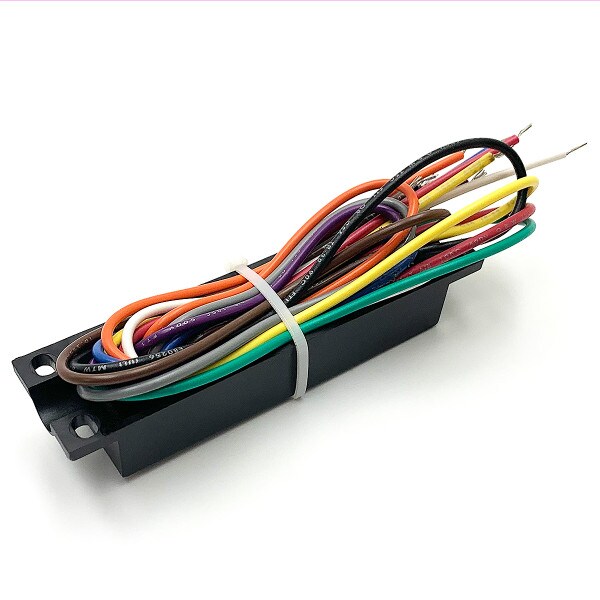

SenderCAN is compact and light enough for inclusion in most wiring harnesses but can also be surface mounted. The case is fully sealed in epoxy resin for high impact and environmental resistance.
Features:
• Operating voltage: 7 to 35 VDC
• Compatible with SAE J1939 CANbus engines
• Up to 4 sender/switch inputs
• Up to 2 gauge/control outputs
• OEM specified, factory set input/output scaling, PGN address and update rates
• Compact, high impact ABS, sealed epoxy-filled case
• Environmental sealing: IP65 case, exposed lead ends
