CDV300R CANdrive™ (79700105) *SPECIAL ORDER ITEM*
CDV300R CANdrive™ J1939 to electric gage interface. 8x status/fault LEDs, connector rearward (79700105)
As part of the MurphyLink family, the CANdrive CDV300R is an Electric Gage Interface for modern electronic engines. The CANdrive acts as an interface between ECU CANbus/J1939 transmitted data and standard electric indicating gages.
CANdrive and electric gages are an alternative solution to retrofitting of engine senders, magnetic pickups and associated wiring.
CANdrive has dedicated outputs for a tachometer, oil pressure and coolant temperature electric gages. Configurable switches allow for selectivity between 12 or 24 VDC systems, and for all gage outputs to be selected as either Murphy, VDO or Datcon.
The CANdrive CDV300R is packaged in a compact, surface mounted case with epoxy encapsulation for maximum durability and environmental sealing.
Electrical connection is via a 12-way automotive-type connector.

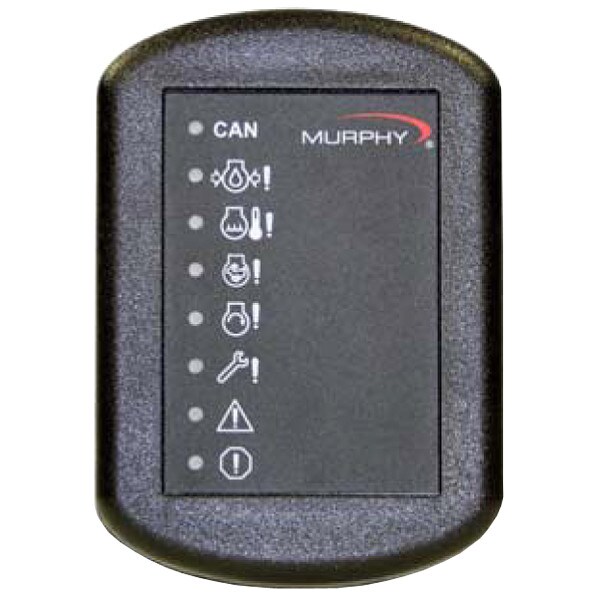

The CDV300R has 8x status/fault LEDs with the connector positioned rearward.
Literature:
Installation & Operations Manual
