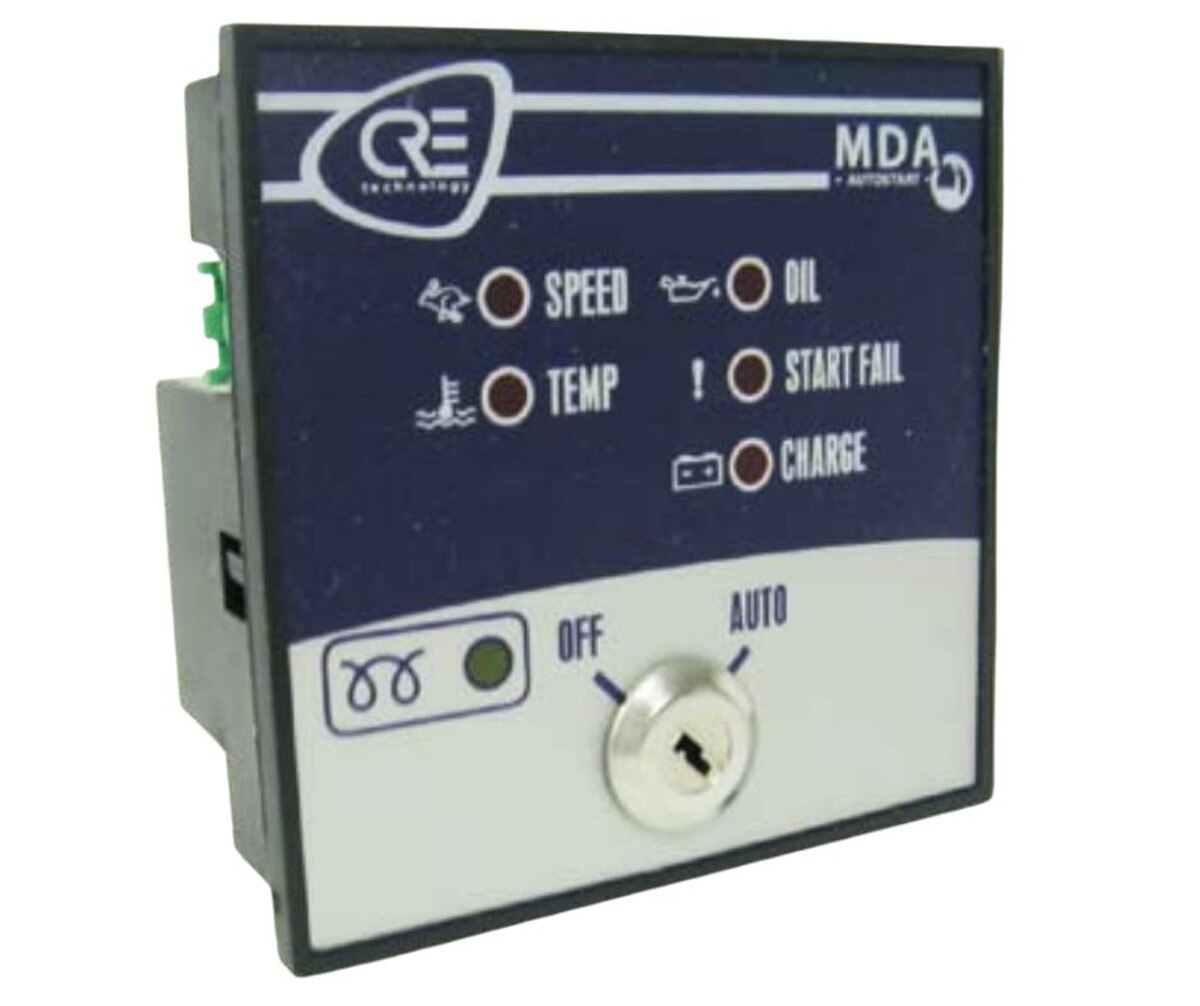

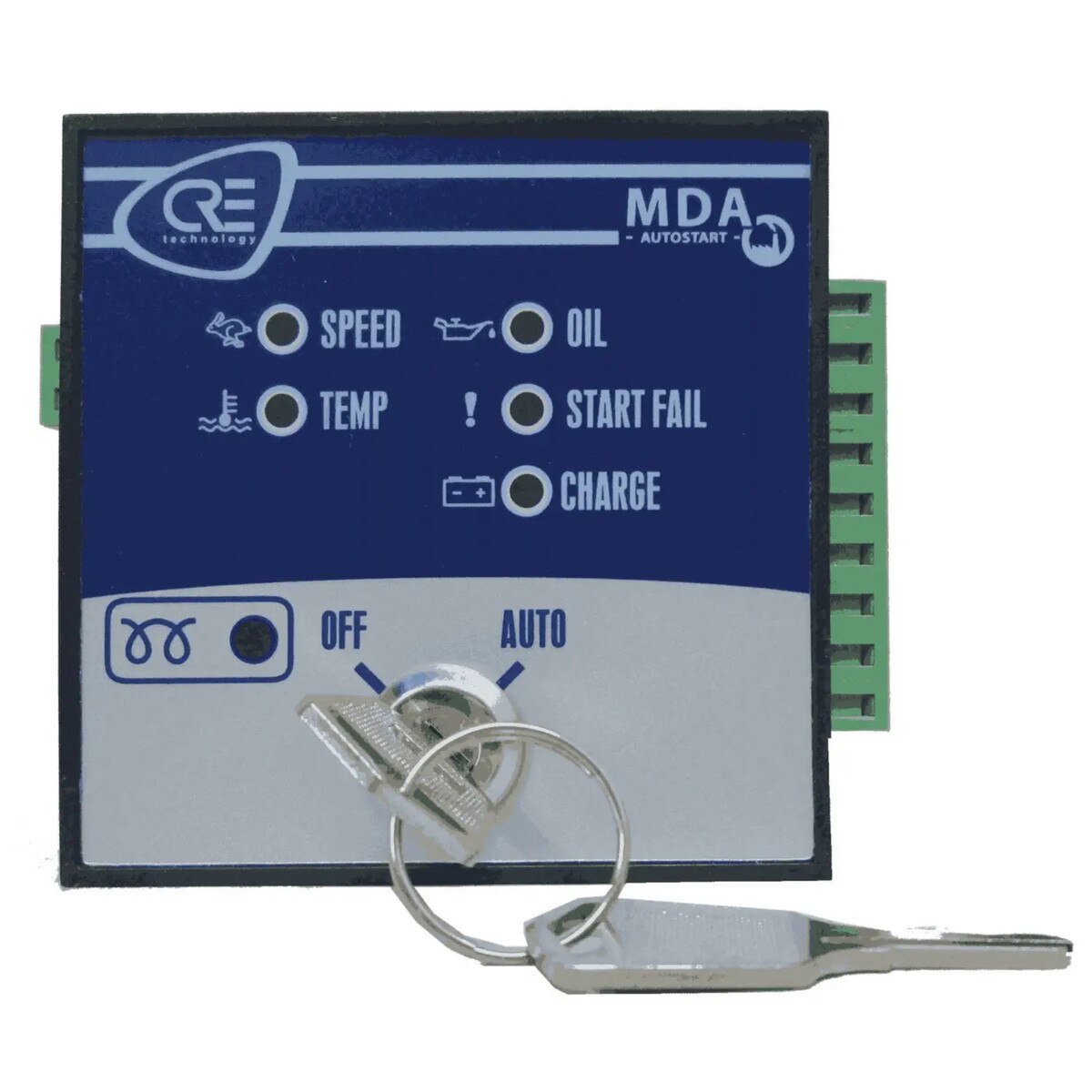

MDA Auto Start Unit (A60Y1)

MDA Auto Start Unit, 50/60 Hz, preheat or ETS output. Volt Free Relay outputs. (A60Y1)

A SIMPLE PRODUCT FOR BASIC FUNCTIONS When the engine is running, the unit monitors fault conditions and shuts down the engine automatically if an alarm occurs. The alarms are identified with LEDs which display the first one to occur. On an OFF position, the module is de-energized, and the remote start is disabled with no current consumption. The unit uses high current two-part connectors for easy replacement.

ENERGIZE TO STOP CONTROL The MDA is also able to control ‘Energize to Stop’ engines. When the ‘Energize to Stop’ option is selected, the auxiliary relay output will be energized during the stop timer and the led associated with this condition will be switched on. The selection of engine type is made by a jumper switch. 50/60 Hz

COMPATIBILITY The unit is able to operate with both 50 and 60 Hz systems. The selection is made with a jumper switch.

RELIABLE AND SIMPLE The MDA is dedicated to basic applications which need no extra costs or expensive hardware. CRE Technology has just added two things: Reliability and After Sales Service. All CRE Technology products aim to provide the same satisfaction levels. The MDA has passed EMC and Low Voltage tests, and all units are 100% tested before delivery.

AFTER SALES SERVICE Like every CRE Technology product, the unit also benefits from our technical support. All CRE products are delivered with one year warranty.


Literature:

Sales Bulleting & Specs

MurCal is an Authorized Distributor of CRE Technology products.
MurCal provides experienced application and product support, before and after the sale.
