MDM Manual Start Unit (A60Z3)
MDM Manual Start Unit, 50/60 Hz, preheat or ETS output. Volt Free Relay outputs. (A60Z3)

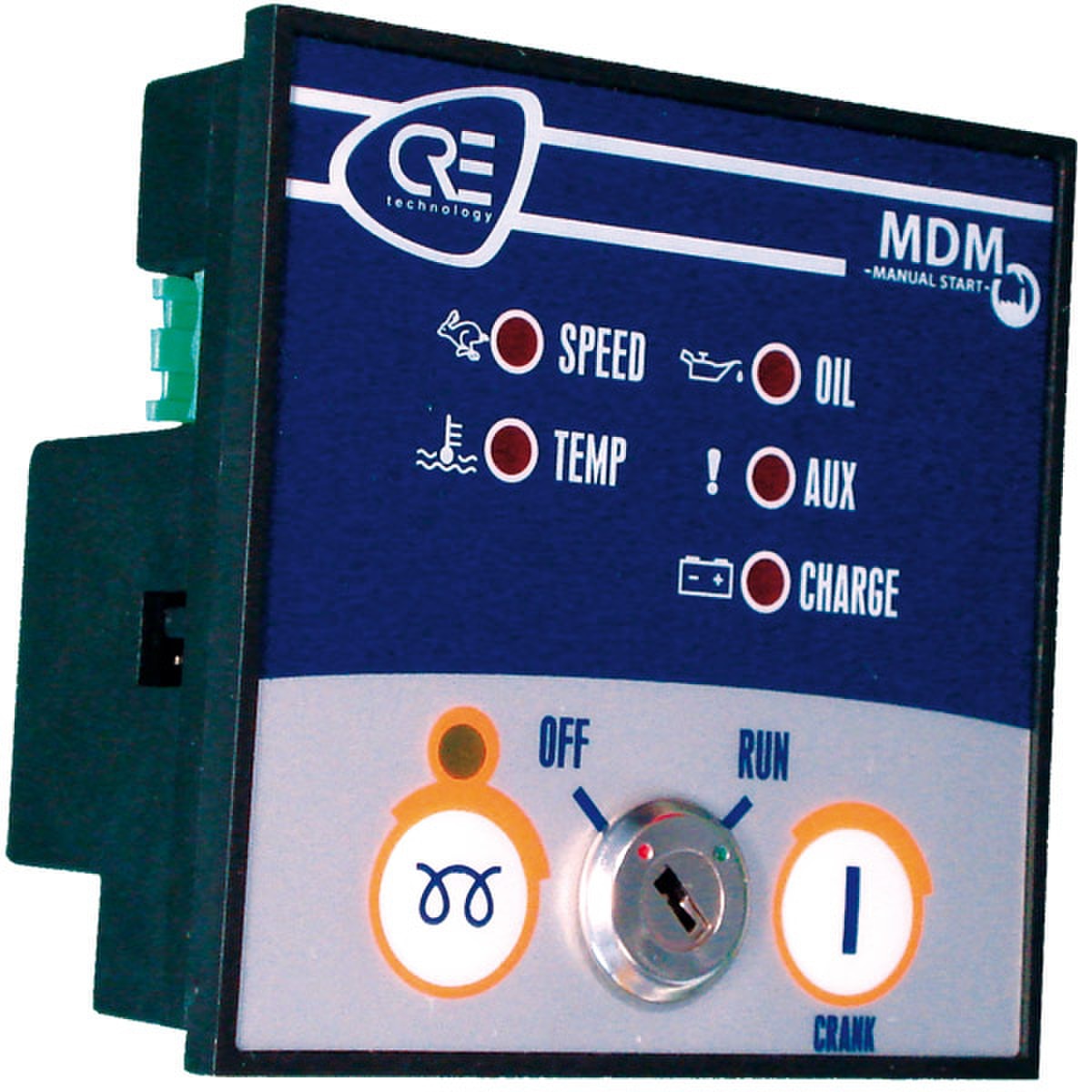

The MDM unit from CRE TECHNOLOGY is a basic, microprocessor-controlled unit designed to start and stop the genset manually using the key switch and pushbuttons on the front panel. It has high power relay outputs enabling it to interface directly with diesel gensets.
When the engine is running, the unit monitors fault conditions and shuts down the engine automatically if an alarm occurs. The alarms are identified by LEDs.
This unit is perfect for backup mode solution.

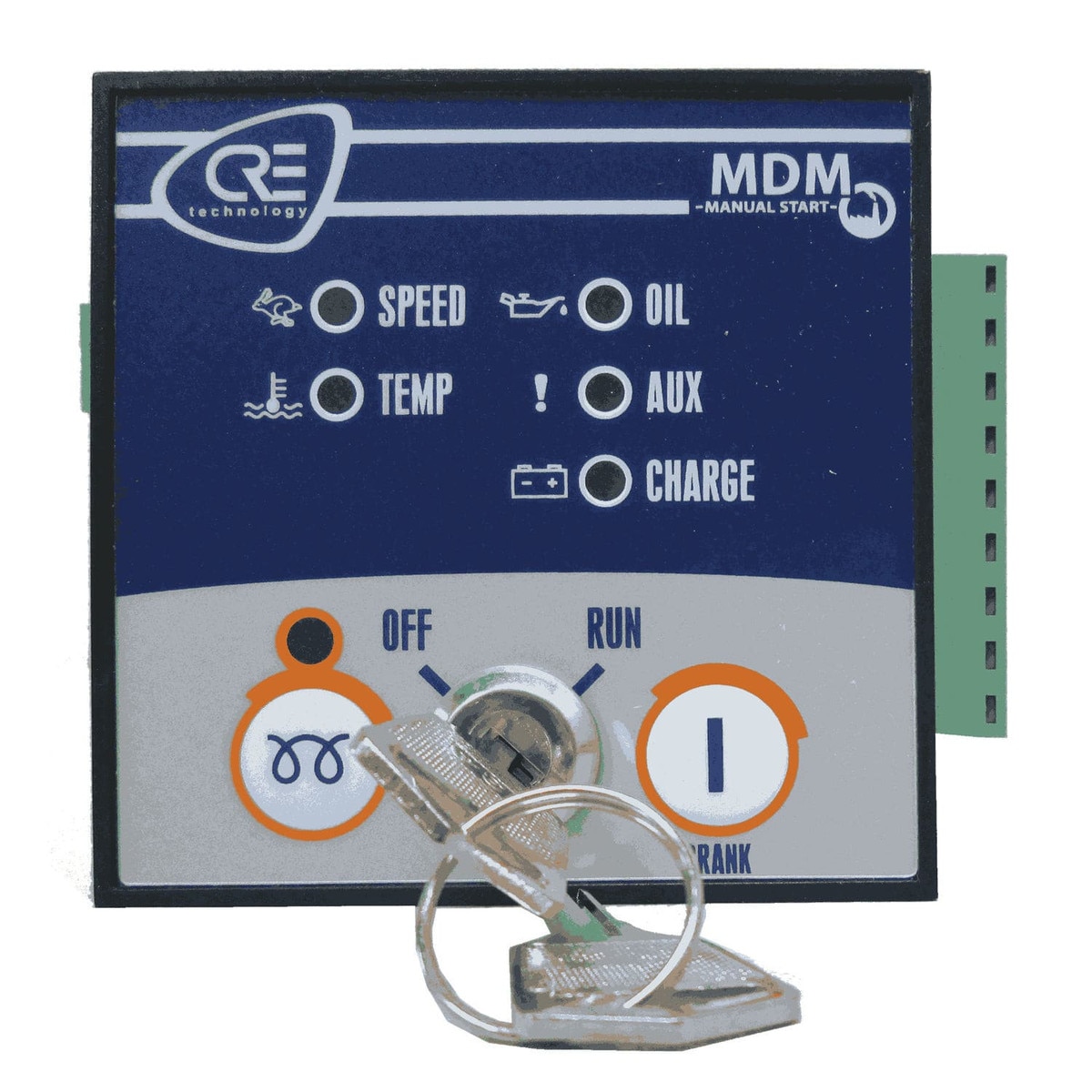

A SIMPLE PRODUCT FOR BASIC APPLICATIONS The manual start and stop sequences have been reduced to their simplest form. The front panel provides “RUN” and “OFF” positions, with a preheat button when required. This button is also used in the “energize to stop” mode. The alarm LEDs show any engine fault conditions: overspeed, underspeed, high engine temperature, low oil pressure, auxiliary shutdown.
ENERGIZE TO STOP CONTROL The MDM is also able to control ‘Energize to Stop’ engines. When the ‘Energize to Stop’ option is selected, the auxiliary relay output will be energized during the stop timer and the led associated with this condition will be turned on. The choice of engine type is made using a jumper switch. 50/60 HZ COMPATIBILITY The limits for the correct generator frequency are 25 to 57 Hz when in 50Hz operation and 25 to 68Hz for 60Hz operation.
RELIABLE AND SIMPLE The MDM is dedicated for basic applications which require no extra costs or expensive hardware. The MDM has passed EMC and low voltage tests, and all units are 100% tested before delivery.
AFTER SALES SERVICE Like every CRE Technology product, the unit also benefits from our technical support. All CRE products are delivered with one year warranty.
Literature:
Sales Bulleting & Specs
