CRE -SCR 2.0 Synch Check Relay (A60X2)

(0)No Reviews yet
$254.49
SKU: CRE -SCR 2.0 Synch Check Relay (A60X2)

This item is IN STOCK

Current Stock: 10

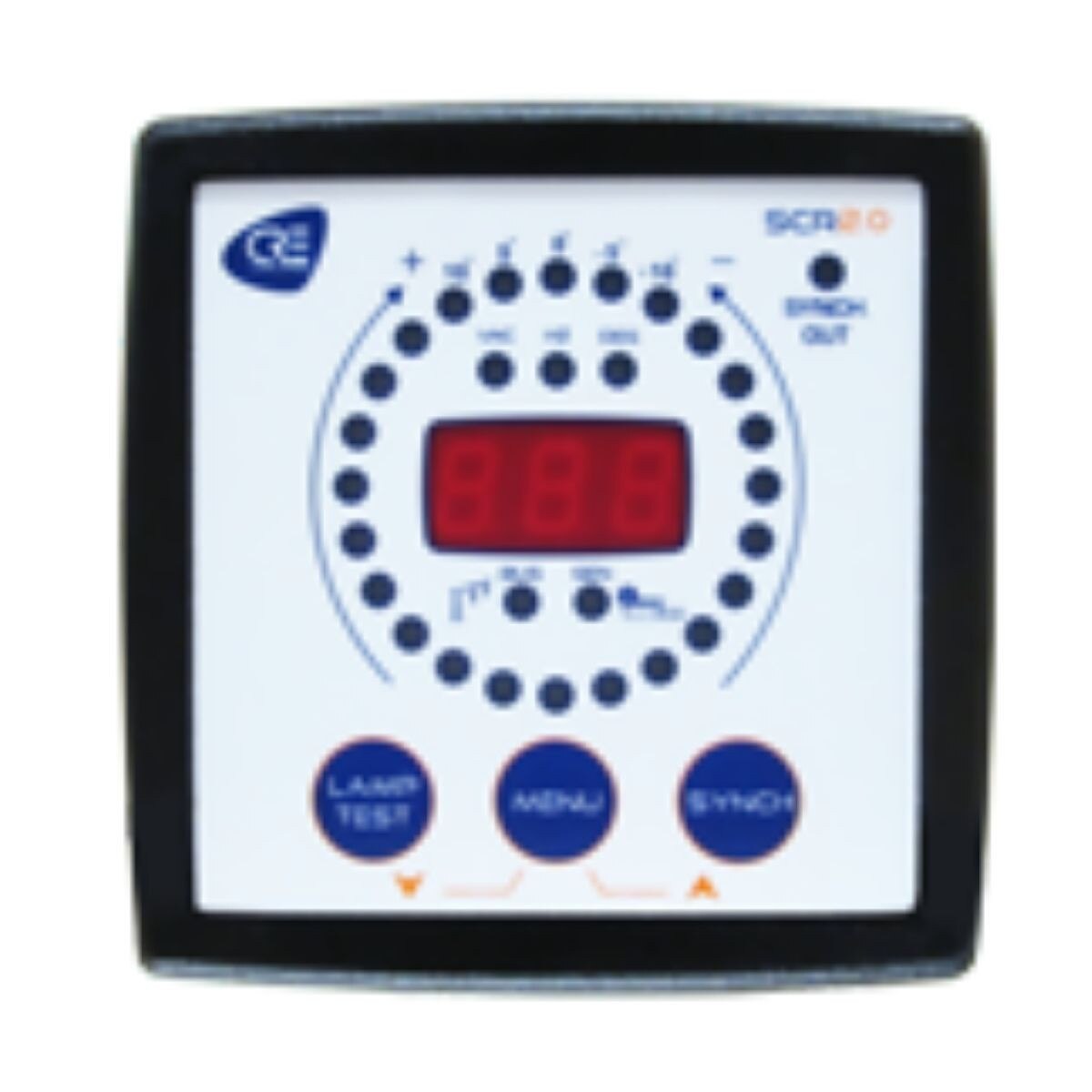

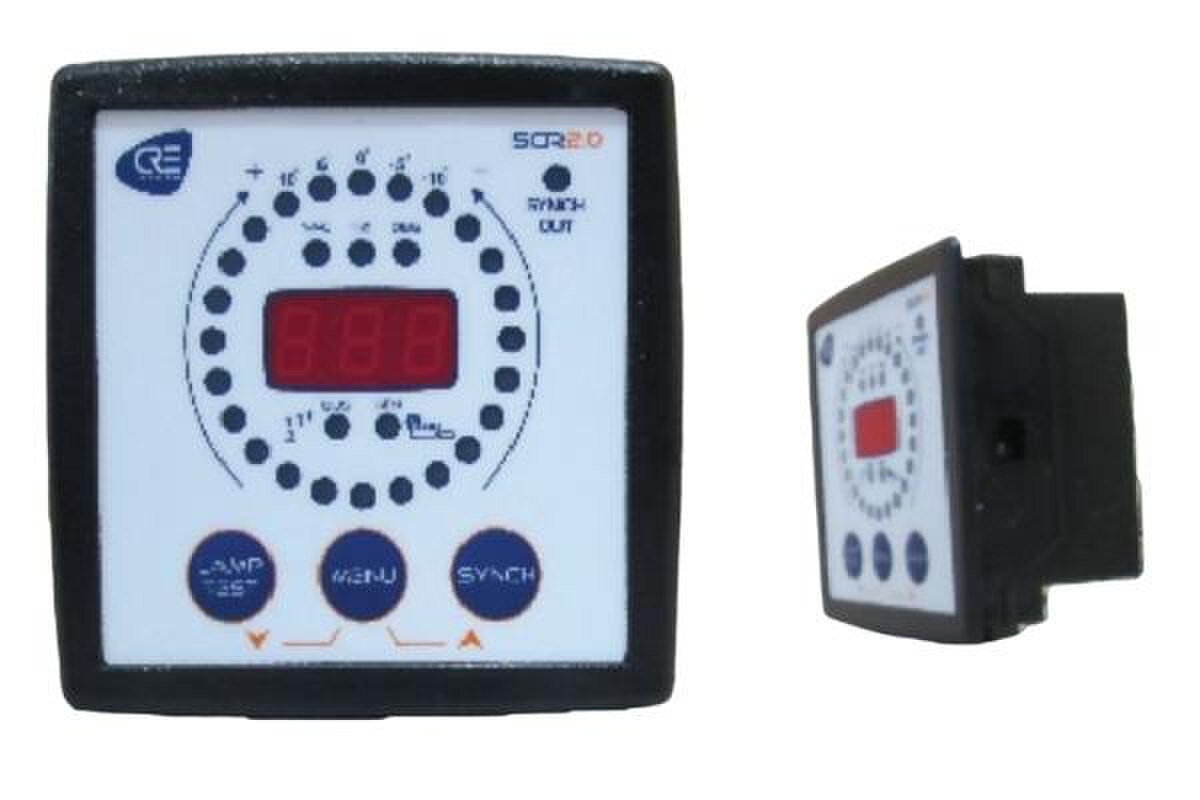

Synchroscope+Sync check relay 96mmx96mm, plastic enclosure. Requires external 12-24VDC power supply.  (A60X2)



The SCR2.0 is a microprocessor-controlled synchroscope with programmable synch check relay in a DIN96 front panel mounted package. It monitors the voltage and frequency of 2 independent power networks as well as the instantaneous phase angle between them.

The measured parameters are displayed on the 3-digit digital display. The 24 led circular synchroscope displays the phase angle between the 2 networks. The synchroscope display is only activated if both network voltages are within the set limits.

A SIMPLE PRODUCT FOR SAFETY FUNCTIONS
Synchronization checking is enabled either via the SYNCH CHECK ENABLE signal input or by pressing the front panel SYNCH pushbutton. If all the necessary conditions are satisfied:
• the busbar voltage between set limits
• genset phase voltage between set limits
• busbar-genset frequency difference below the set limit
• busbar-genset voltage difference below the set limit
• busbar-genset phase angle below the set limit

The SYNCH CHECK relay will be energized. If the busbar is not powered up, the synch checking may be overridden with the DEAD BUS ENABLE signal input.

FRONT PANEL CONFIGURATION
The SCR2.0 module provides a comprehensive set of digitally adjustable threshold levels and timers. All settings are modified via front panel pushbuttons, and do not require an external unit. The MENU pushbutton allows the digital display to navigate between various measured parameters.

RELIABLE AND SIMPLE
The SCR2.0 is dedicated to basic applications which require no extra costs or expensive hardware. All CRE TECHNOLOGY products aim to provide the same satisfaction levels. The SCR2.0 has passed EMC and low voltage tests, and each unit is 100% tested before delivery.

RELAY OUTPUTS
The unit provides a synch check relay output with volt free contacts. The relay output is capable of driving a 16A/250VAC load



Literature


Sales Bulletin


 MurCal is an Authorized Distributor of CRE Technology products.
MurCal provides experienced application and product support, before and after the sale.
