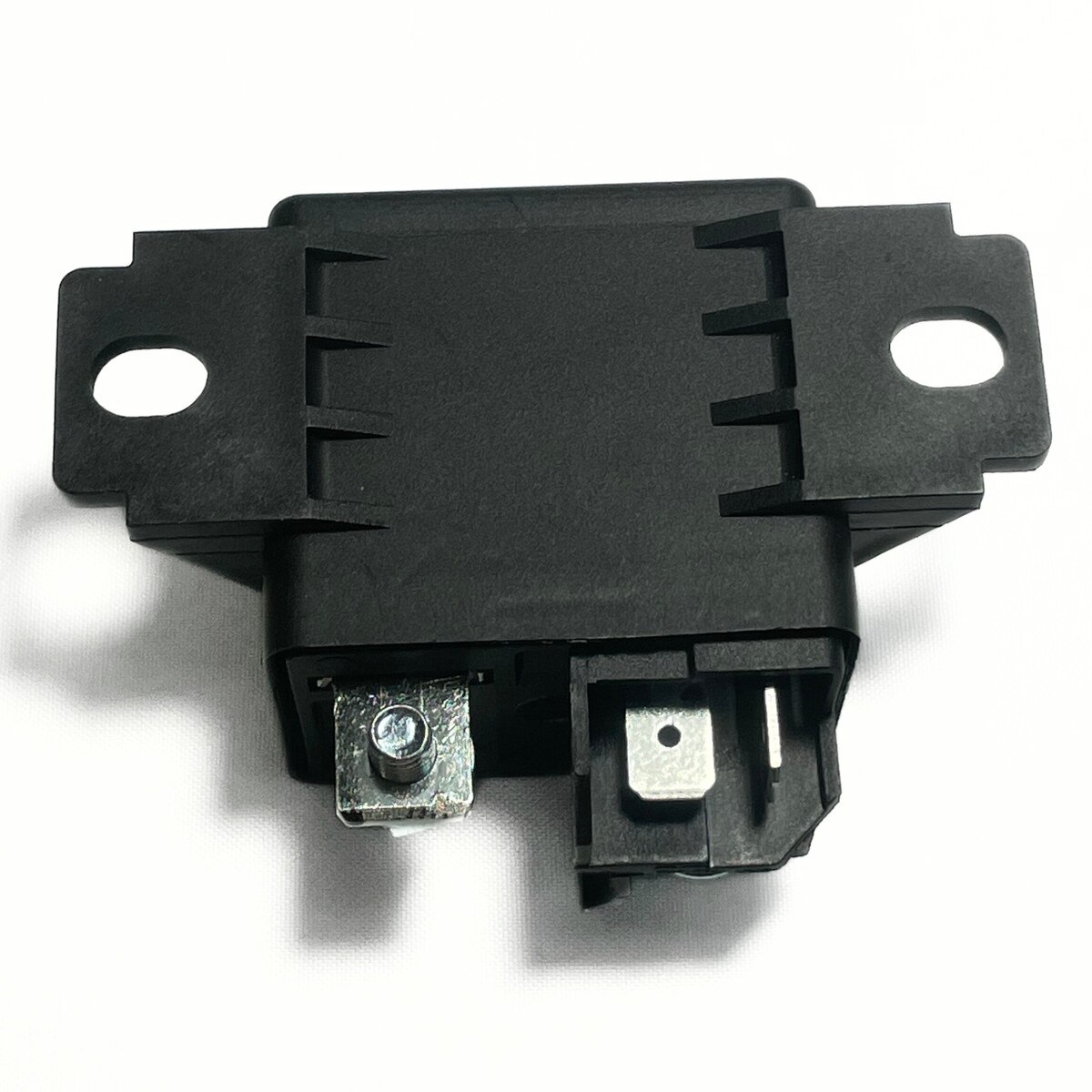

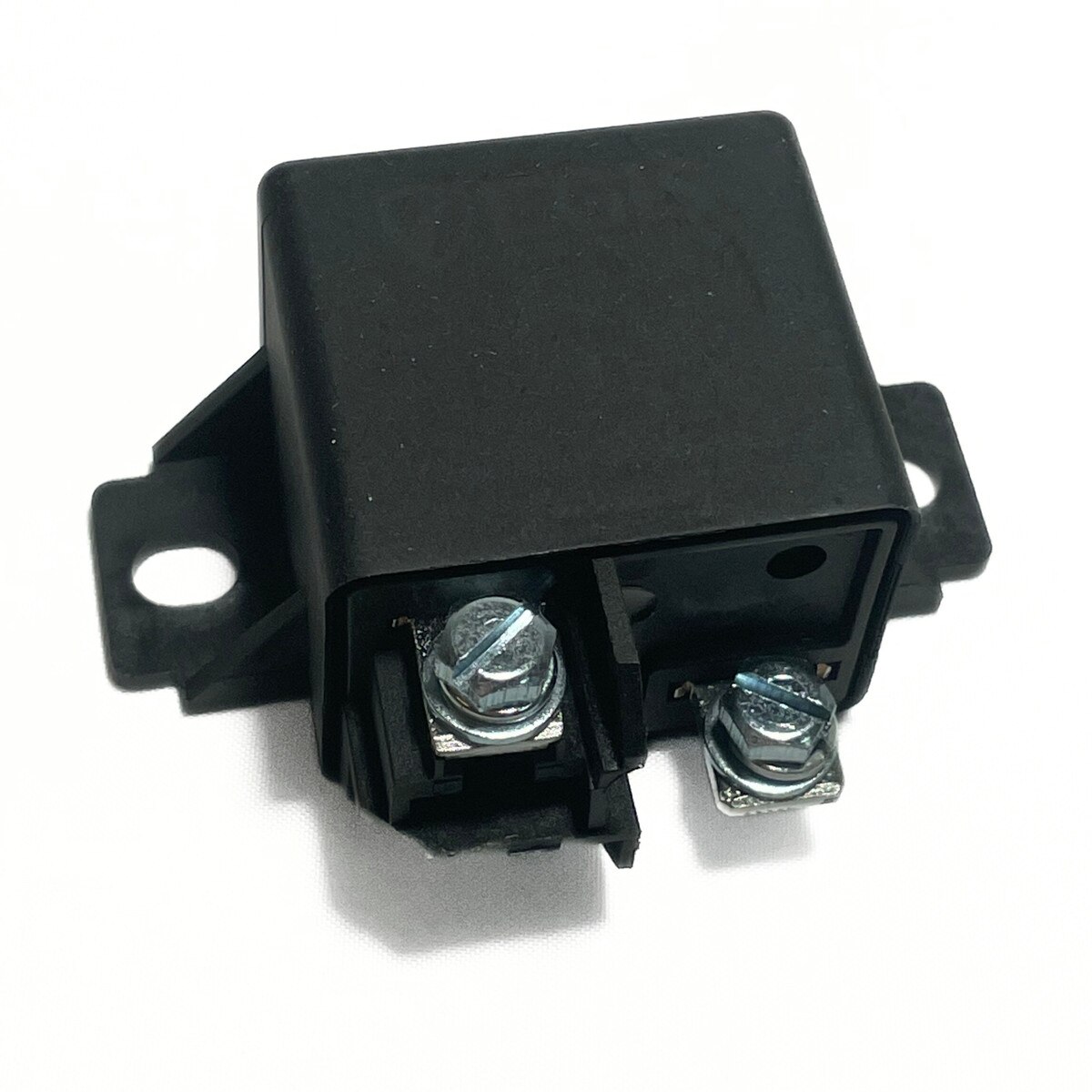

EGIS Relay 12V 75 Amp, Dual Diode (901643)
EGIS Relay 12V 75 Amp, Dual Diode (901643)
- Bi-Furcated Contact reduce contact bounce, increase long term reliability. This enables the relay to conduct electrical switching more efficiently, reducing unnecessary heat build up and contact wear.
- Dual Diode circuit protection ensure flyback voltage does not affect control signal circuitry. A great option for sensitive electrical systems.
- High Intermittent Amperage rating of 150 amps for up to 3 seconds making this relay great for temporary high equipment start up amp draw applications.
- Offset Input/Output Terminals and integrated divider design help prevent accidental contact shorts
- High Temperature Ratingof 125C/257F makes this a great relay for high temperature installation environments like engine bays and other low ventilation spaces.
- Bullet-proof Construction: Robust automotive grade relay with IP54 ingress protection and reinforced mounting tabs ensure secure mounting.
- Dual Mounting Holes on either side for easy mounting with 1/4-20"/M6 1.25 Bolts or screws up to #14 screw.
- Incorporate The Highest Quality Materials for superior performance and has a high 100,000 electrical switching cycle capacity.
- Enhanced Vibration and Shock Protection, ensures enhanced reliability and a long service life and maintains electrical system operational readiness.
Literature:
MurCal is an Authorized Distributor of EGIS products.
MurCal provides experienced application and product support, before and after the sale.
