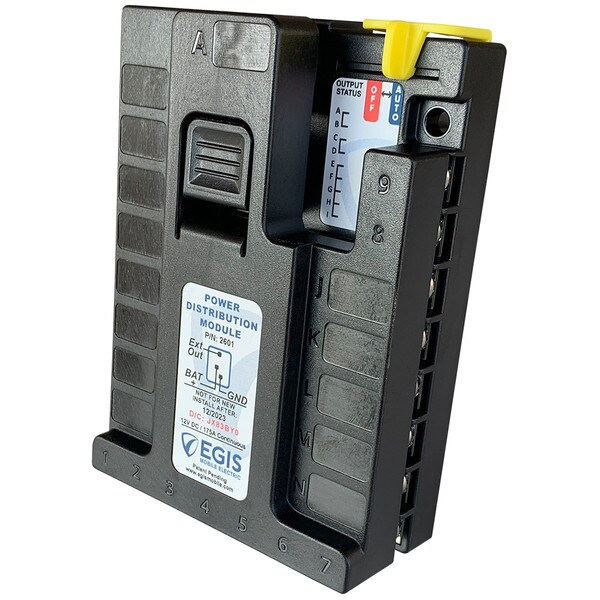

EGIS PDM 14 Circuit + Ground w/Kill Switch (2601B)

(0)No Reviews yet

Contact Our Sales Team 661-272-4700 or

EGIS PDM 14 Circuit + Ground w/Kill Switch (2601B)



  • Compact Solution Combines Intelligent Battery Protection, Power Switching, Circuit Protection, Ground Return Buss, and Optional Manual Override Switch.
  • Reduce Install Space and Total Installed Cost, Four (4) Separate Functions in One Product
  • Three (3) High-Amp (1-45A) Outputs Allow Protection All Circuits with One Solution
  • Three Output Groups Independently Set to 24/7, Ignition Switched, or Time Delay
  • Expandable Up to 31 Fused Outputs with RT or CT series Fuse Blocks


  • Ultra-Low Power Draw eliminates vehicle downtime due to dead batteries. Lowest off-state current draw (1.3 mA).
  • Optional Under and Over Voltage Protection prevents battery and electrical load damage, can optionally be applied to 24/7 configured outputs for additional protection.
  • LED Indicators for On/Off, Blown Fuse Indication, or Voltage/Temp Abnormalities
  • Ignition or V-Sense trigger options for on/off.
  • Remote and Local Kill Switch Options: Provide unique ability to isolate all auxiliary loads, including optionally outputs set to 24/7
  • 4 Year Industry Leading Warranty


Sales Bulletin



MurCal is an Authorized Distributor of EGIS Mobile Electric products.
MurCal provides experienced application and product support, before and after the sale.
