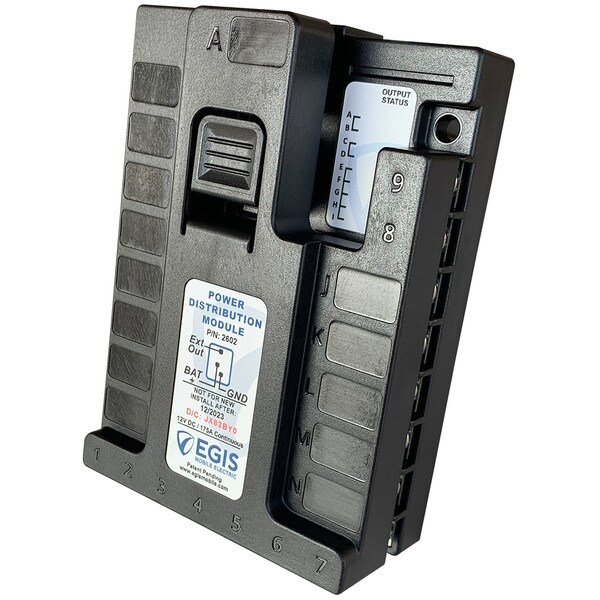

EGIS PDM 14 Circuit + Ground (2602B)
EGIS PDM 14 Circuit + Ground, 175 A, 12 V (2602B)
- Compact Solution Combines Intelligent Battery Protection, Power Switching, Circuit Protection, Ground Return Buss, and Optional Manual Override Switch.
- Reduce Install Space and Total Installed Cost, Four (4) Separate Functions in One Product
- Three (3) High-Amp (1-45A) Outputs Allow Protection All Circuits with One Solution
- Three Output Groups Independently Set to 24/7, Ignition Switched, or Time Delay
- Expandable Up to 31 Fused Outputs with RT or CT series Fuse Blocks
- Ultra-Low Power Draw eliminates vehicle downtime due to dead batteries. Lowest off-state current draw (1.3 mA).
- Optional Under and Over Voltage Protection prevents battery and electrical load damage, can optionally be applied to 24/7 configured outputs for additional protection.
- LED Indicators for On/Off, Blown Fuse Indication, or Voltage/Temp Abnormalities
- Ignition or V-Sense trigger options for on/off.
- Remote and Local Kill Switch Options: Provide unique ability to isolate all auxiliary loads, including optionally outputs set to 24/7
- 4 Year Industry Leading Warranty
MurCal is an Authorized Distributor of EGIS Mobile Electric products.
MurCal provides experienced application and product support, before and after the sale.
