ESPM-200 Pressure Sender (05701753)

ESPM-200: Pressure Sender (05701753)

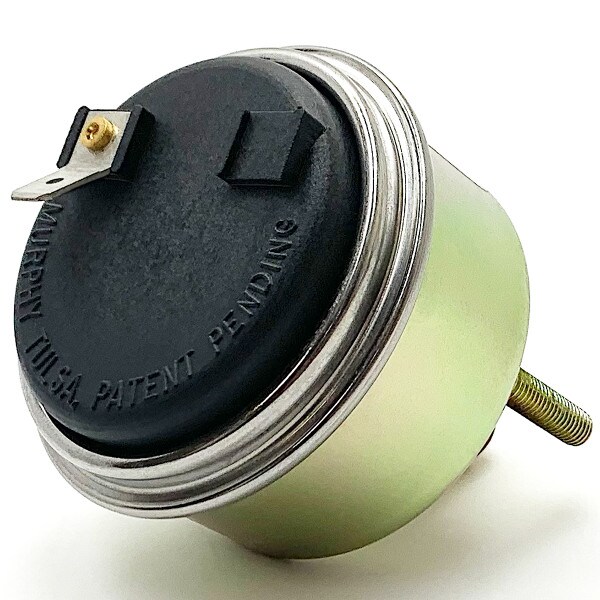

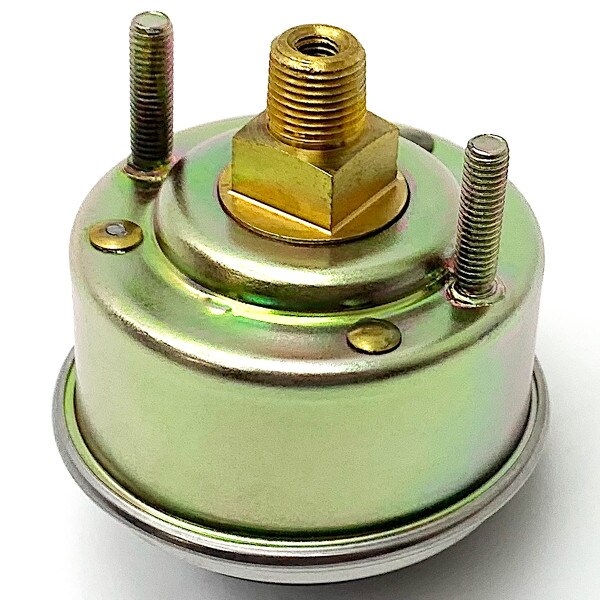

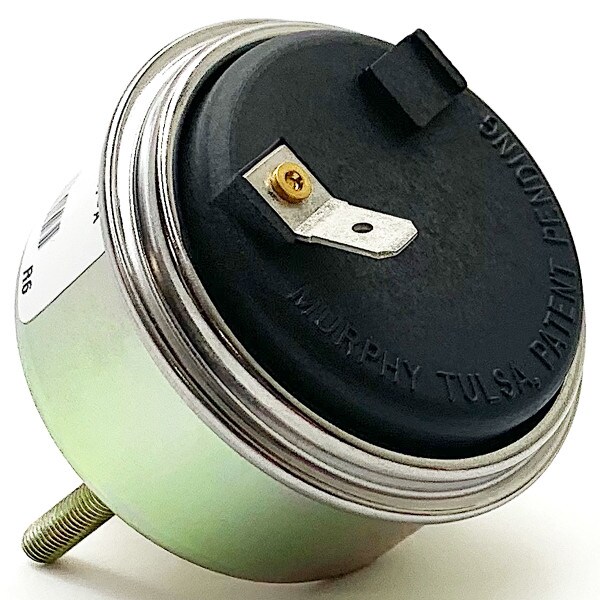

The ESPM-200 Pressure Sender is a 1-wire-to-ground pressure sender, 200 psi max, with mounting off-equipment recommended.
The ESPM-200 is designed to be used in conjunction with our EG Series Swichgage® Instruments as well as CAN I/O modules.

NOTE: Always provide proper circuit protection with fuses or circuit breakers.

Literature:


1. Sales Bulletin
2. Electric Gage Series Brochure
3. Installation Instructions (1999)
4. Installation Instructions (2008)
5. Installation Instructions for Off-Equipment Mounting Kit #30000213 of Gear Oil Pressure Sender
6. Resistive Table for Electric Gage Pressure Senders
