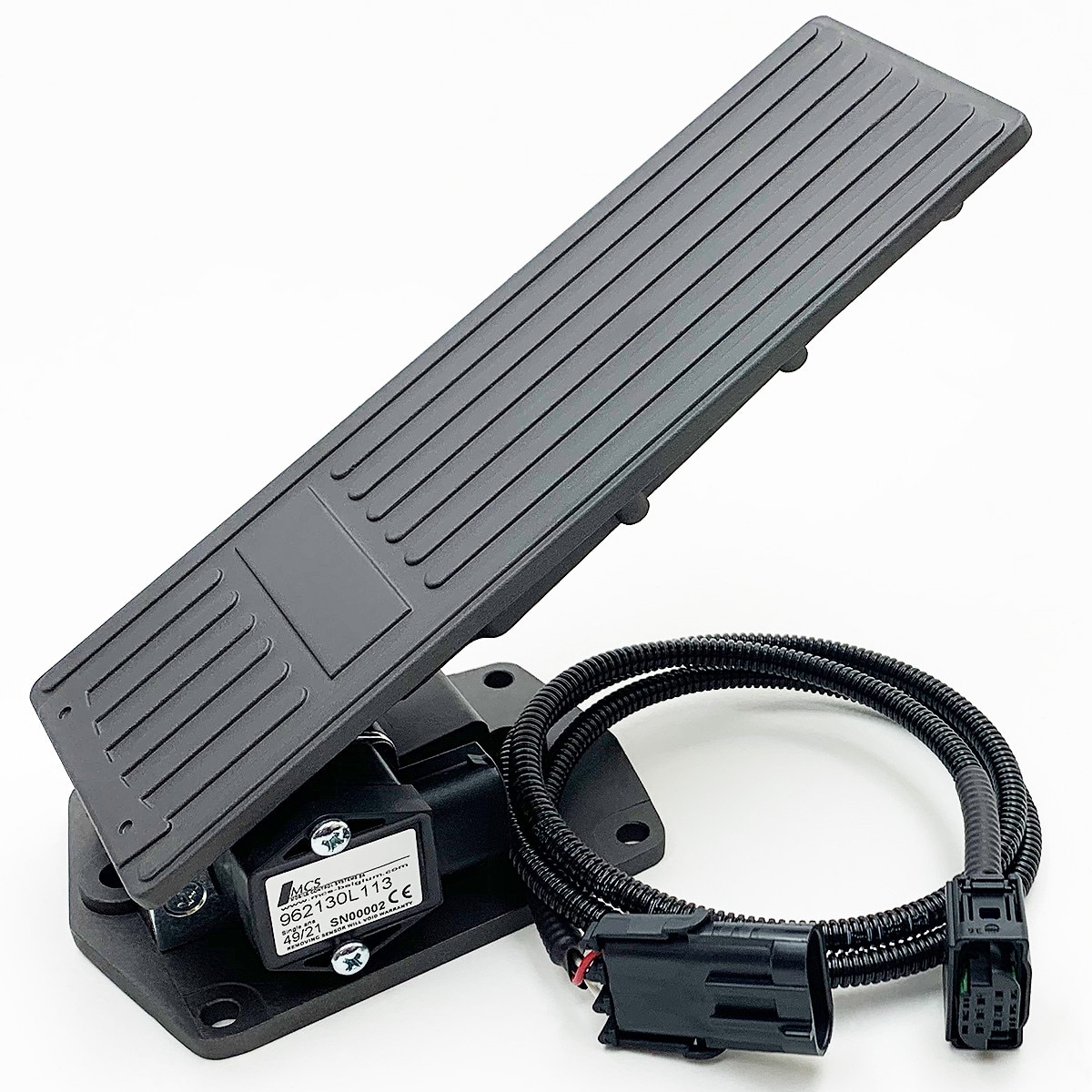

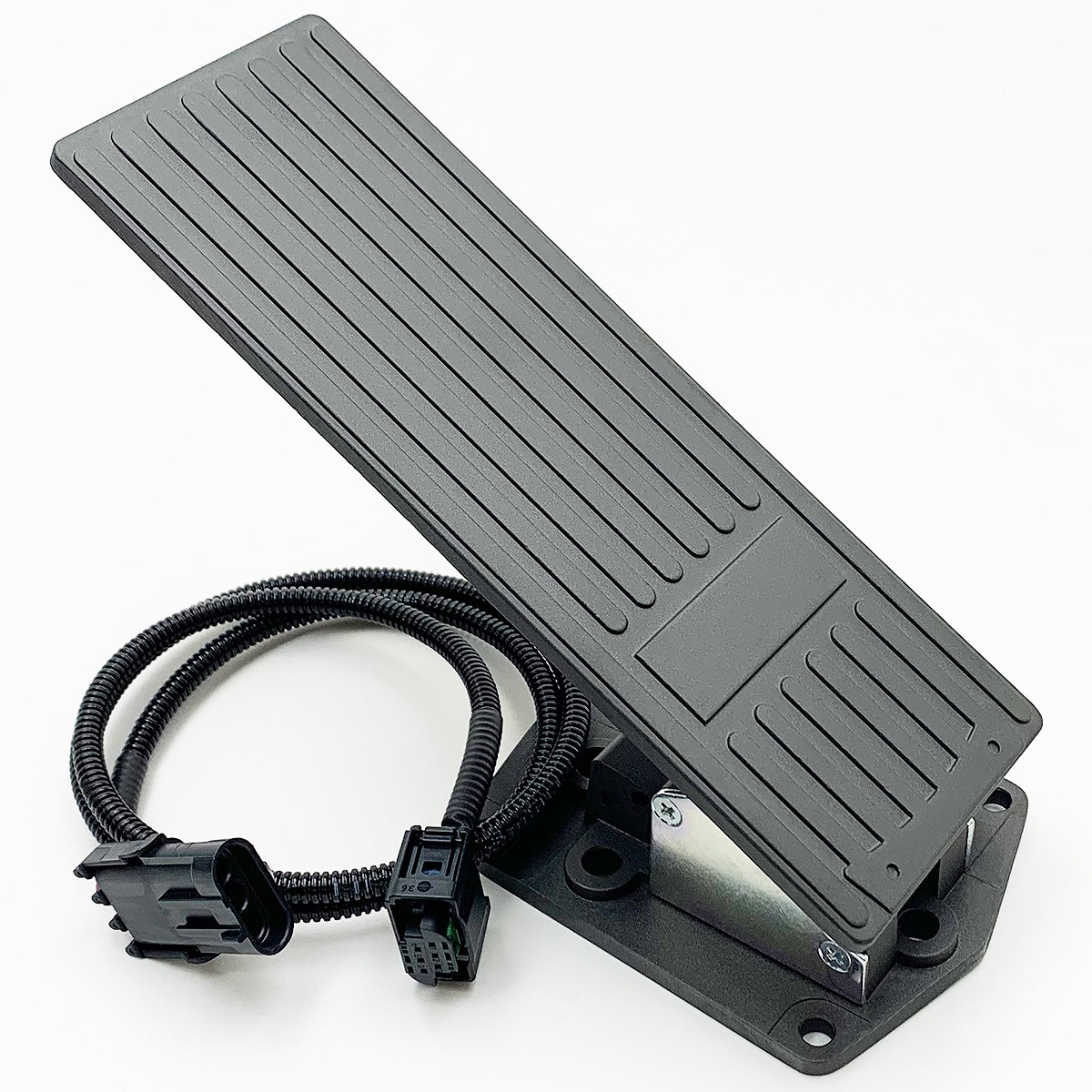

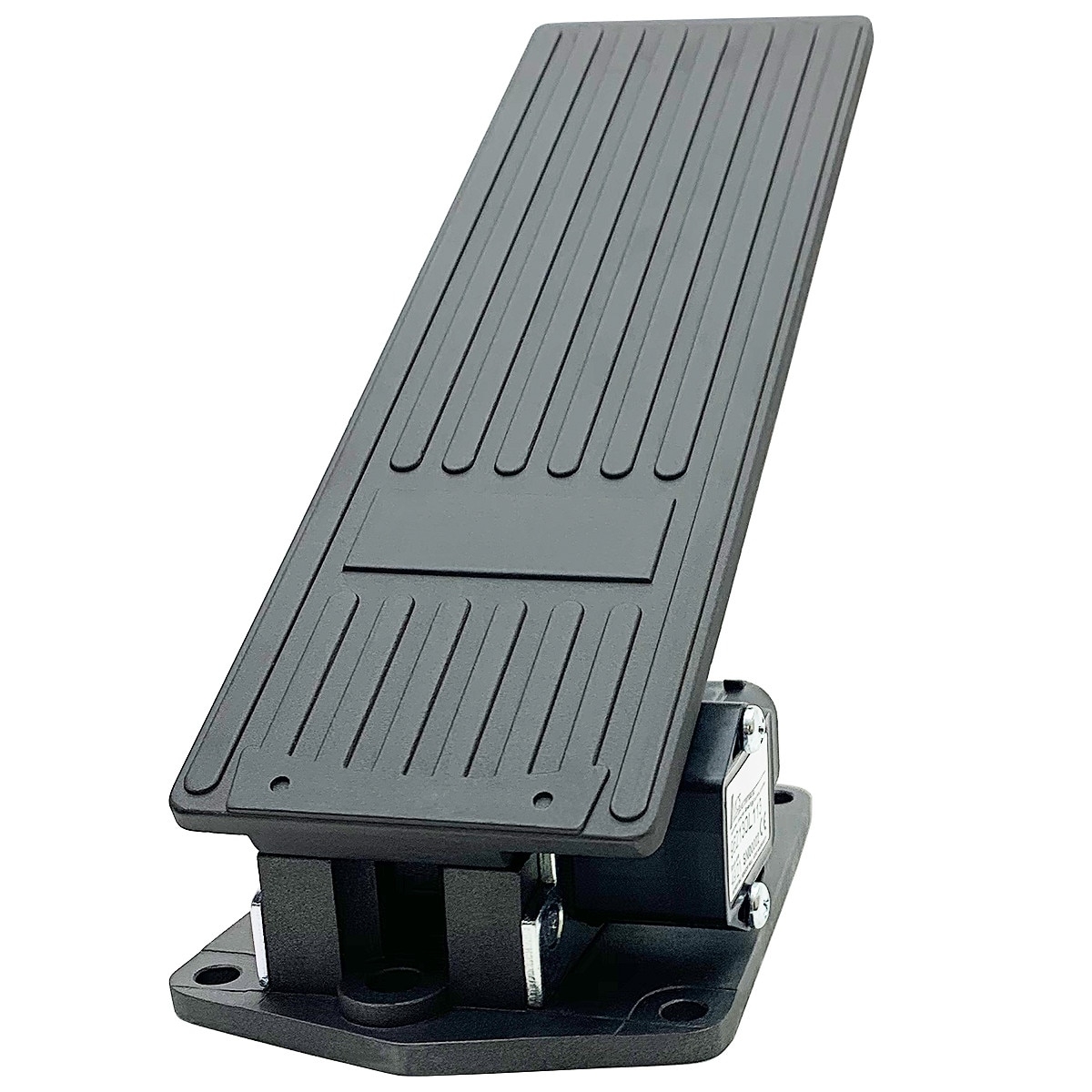

Electronic Floor Mounted Throttle Pedal 30°, Single Analog, w/ Wire Harness (962 130 L113)

(0) No Reviews yet
$189.25
SKU: MCS Electronic Pedal 5-28VDC 30° (962130L113)

This item is IN STOCK

Current Stock: 5

Electronic Floor Mounted Throttle Pedal 30°, Single Analog, w/ Wire Harness (962 130 L113)

All electronic throttle controls are fitted with programmable hall effect sensors. The signals generated by the electronic throttle controls will allow a smooth and precise engine speed control. This model is a programmable single analog sensor with programmable electronic Idle Validation Switch (IVS).

The output values are programmable and hence can be adapted to the customer’s specifications. Electronic throttle controls can be connected directly to the engine management system, or engine electronic control module.

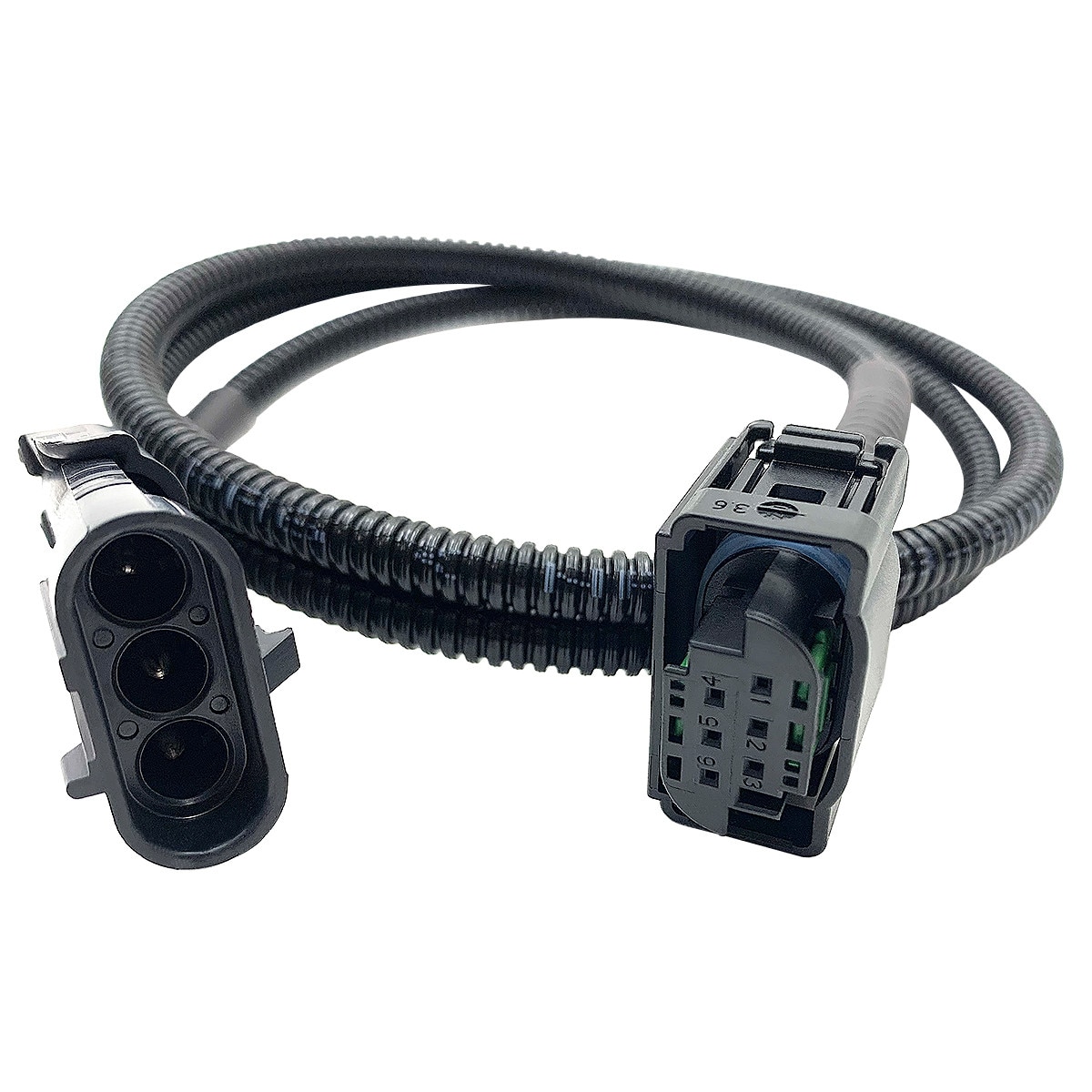

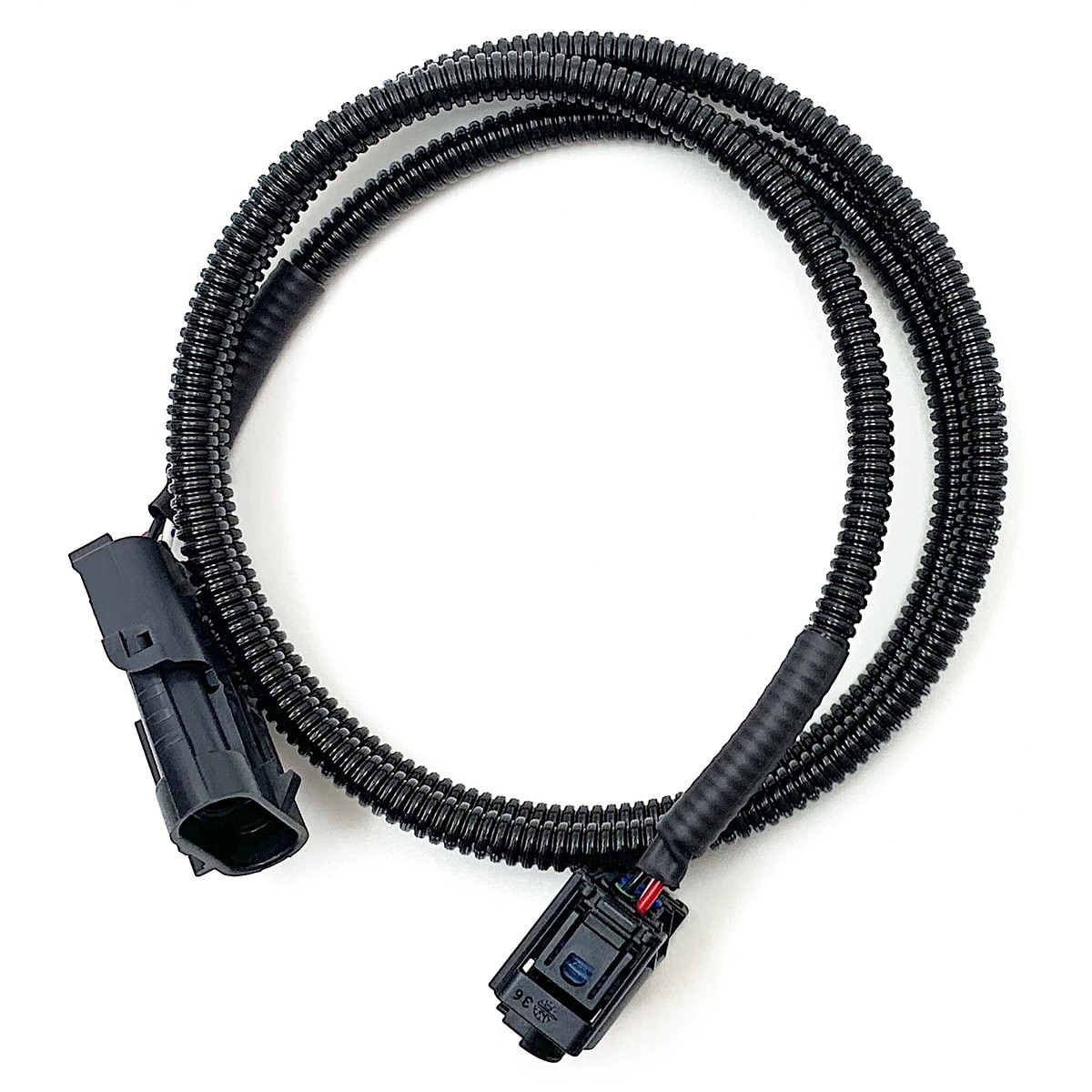

The wire harness (PEH 0962 142 100) measuring 1,000 mm (+/- 30 mm), approx. 39”, is included.

This model replaces the Williams 403653 / DDEC 345593.

Mechanical Specifications:

•  Two “built-in” return springs

•  Additional return spring built in the sensor

•  Die cast aluminum treadle and mounting plate

•  Complies with FMVSS 124

•  Protection classification: IP66 (IP67 if LHE sensor)

•  Travel angle: 22°

•  Pedal Angle: 30°

•  Connector: AMP, 6 pin, waterproof (IP69)

•  Supply voltage: Between 5V and 28V DC



Literature:

  1. Specifications Manual, 962 Series
  2. 962 X30 XX Drawing
  3. 962 130 L113 Drawing with Connectors
  4. Wire Harness, PEH 0962 142 100 Drawing
  5. Pedal Tool Data Sheet
