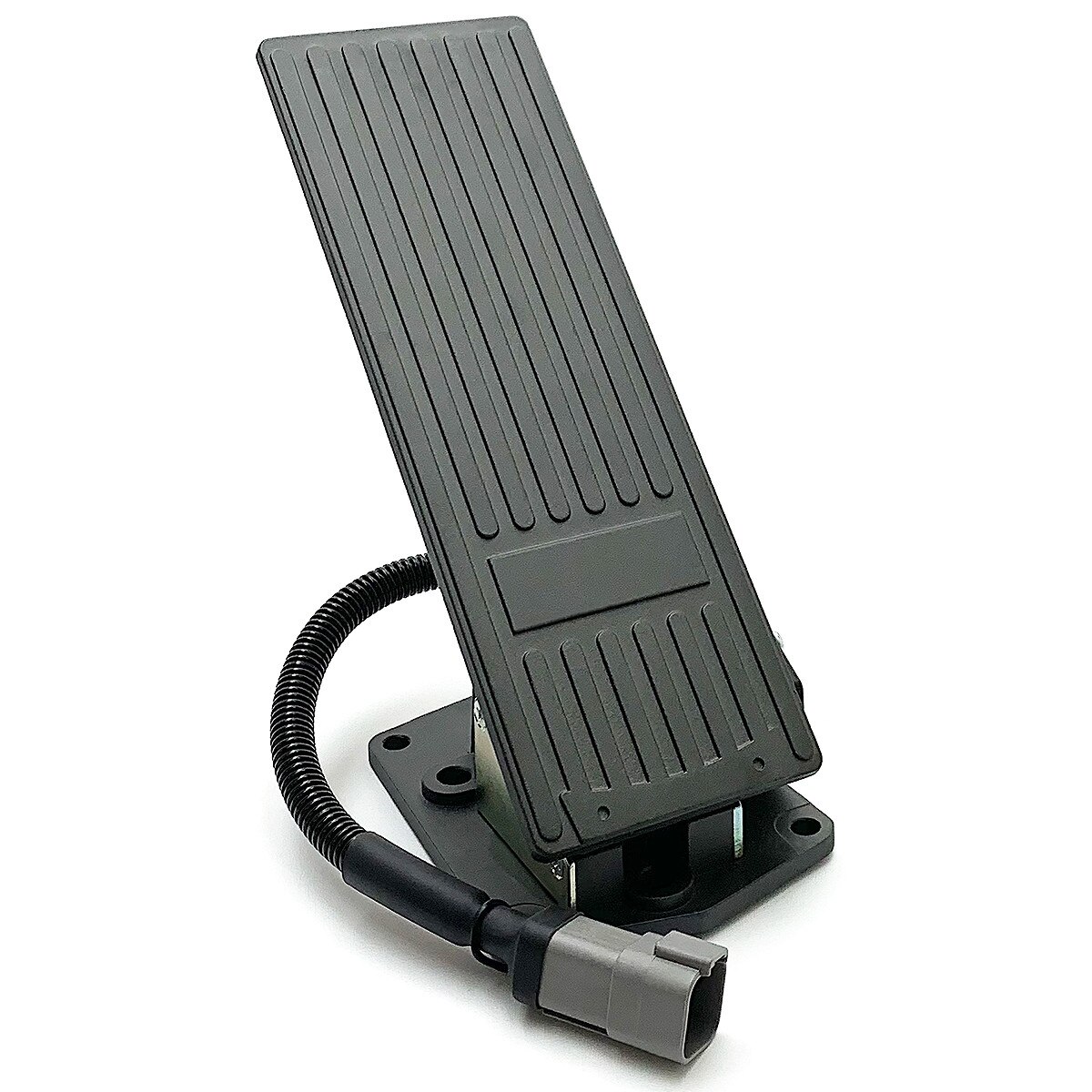

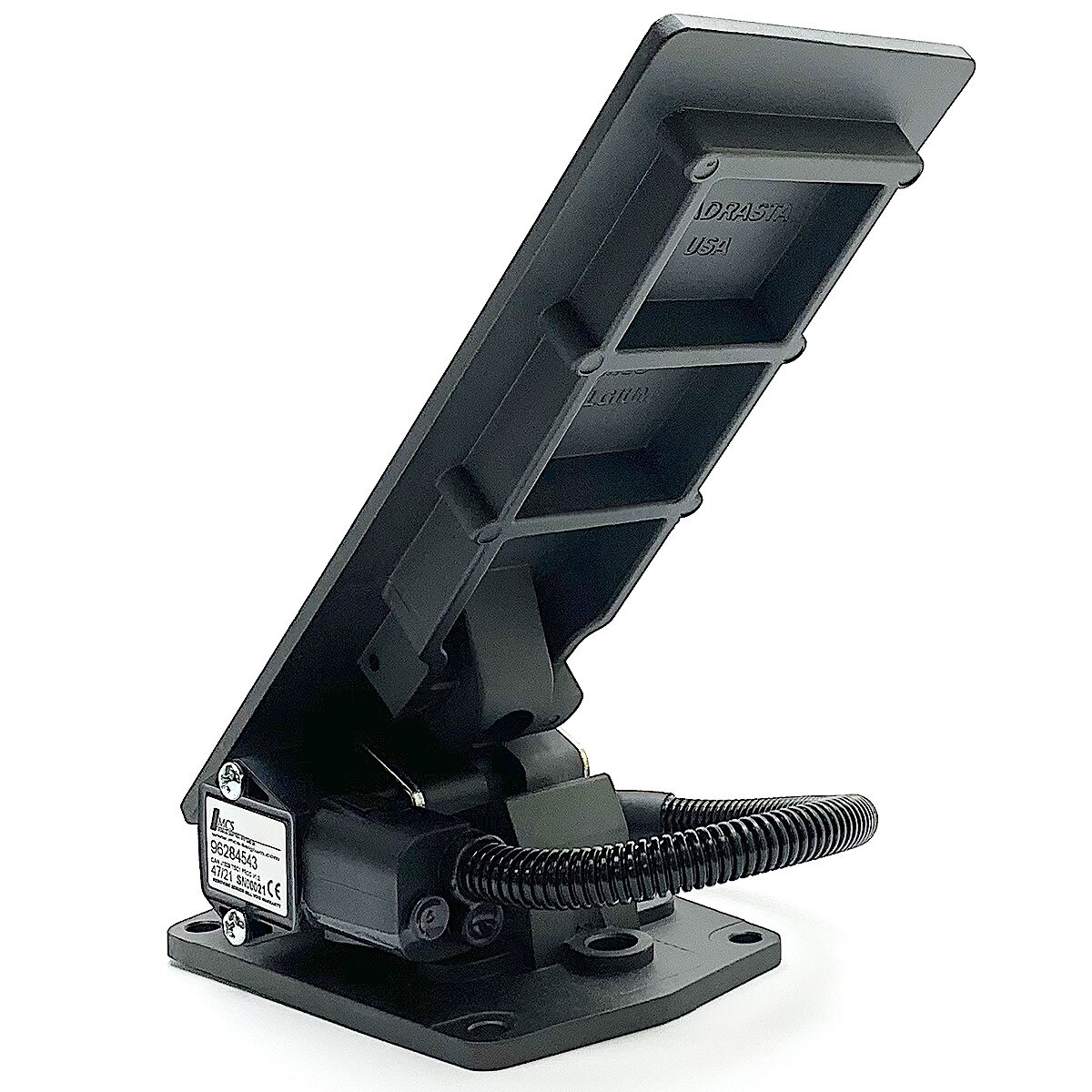

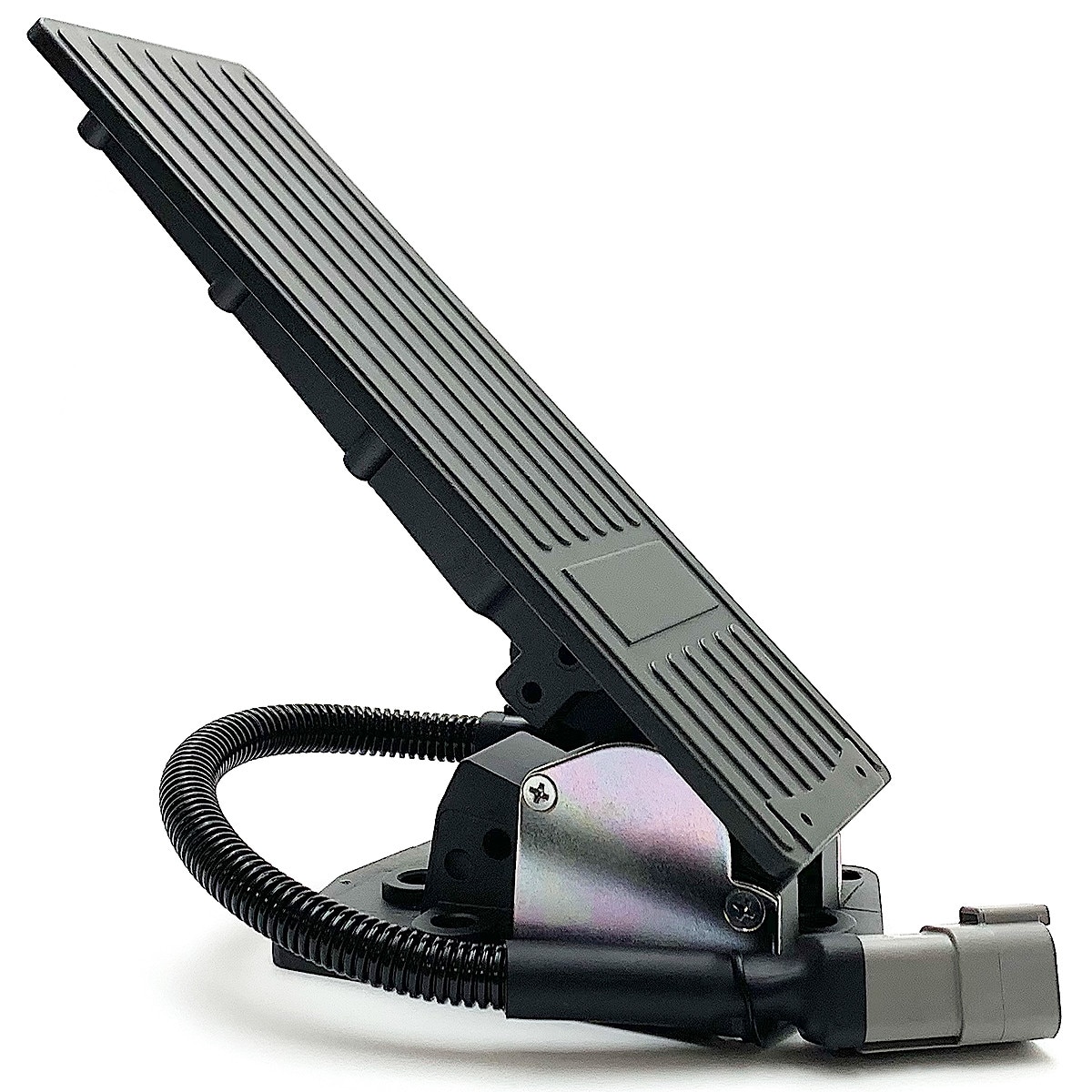

J1939 TSC1 Floor Mounted Throttle Pedal 45° (962 845 43)

(0) No Reviews yet
$340.50
SKU: MCS J1939 TSC1 Floor Mounted Pedal 45° (96284543)

This item is IN STOCK

Current Stock: 6

J1939 TSC1 Floor Mounted Throttle Pedal 45° (962 845 43)



All electronic throttle controls are fitted with programmable hall effect sensors. The signals generated by the electronic throttle controls will allow a smooth and precise engine speed control.

The output values are programmable and hence can be adapted to the customer’s specifications. Electronic throttle controls can be connected directly to the engine management system, or engine electronic control module.



Mechanical Specifications:



•  Two “built-in” return springs

•  Additional return spring built in the sensor

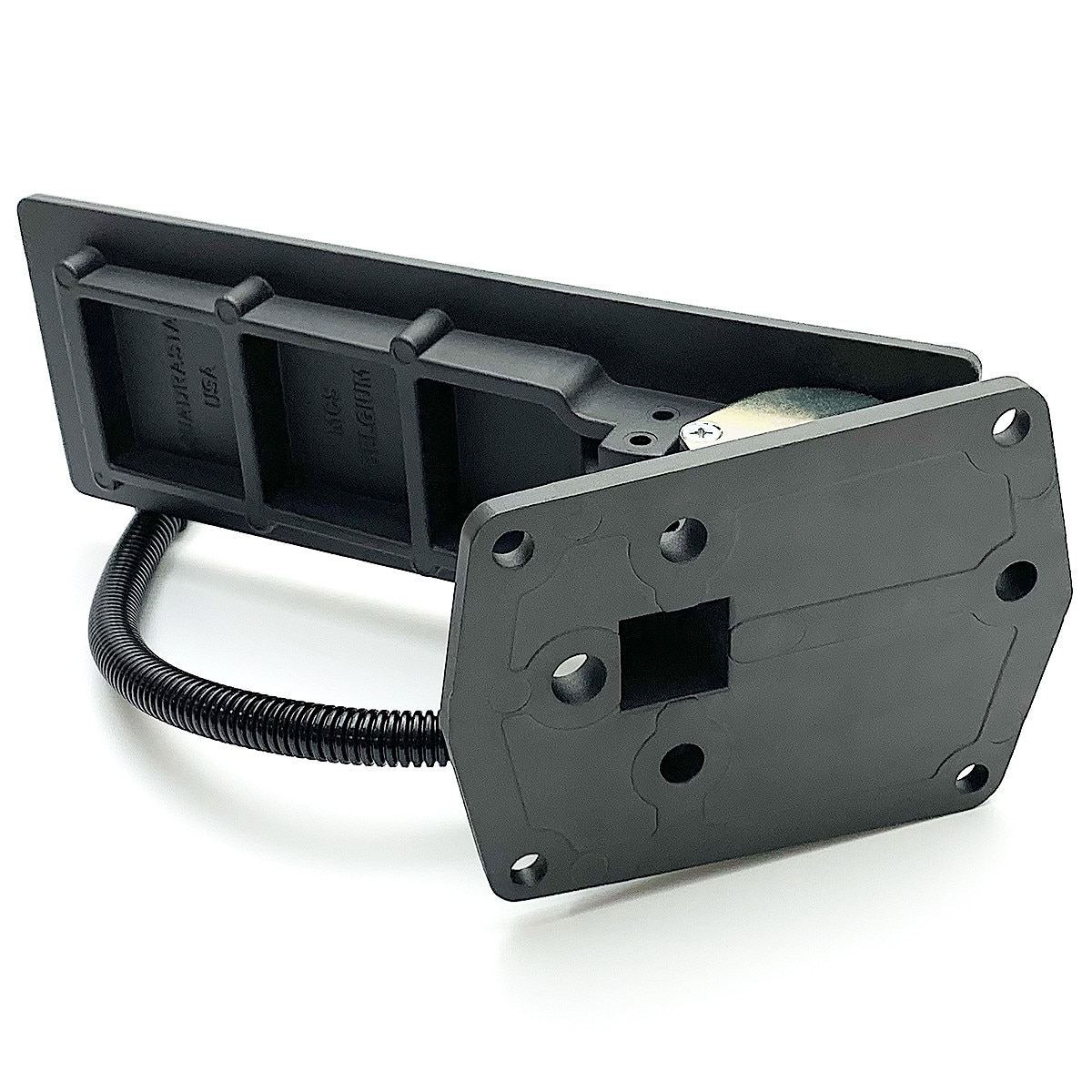

•  Die cast aluminum treadle and mounting plate

•  Complies with FMVSS 124

•  Protection classification: IP66 (IP67 if LHE sensor)

•  Travel angle: 22°

•  Pedal Angle: 45°

•  Connector: AMP, 6 pin, waterproof (IP69)

•  Supply voltage: 12.0V / 24.0V

•  Output signal: CAN J1939 protocol

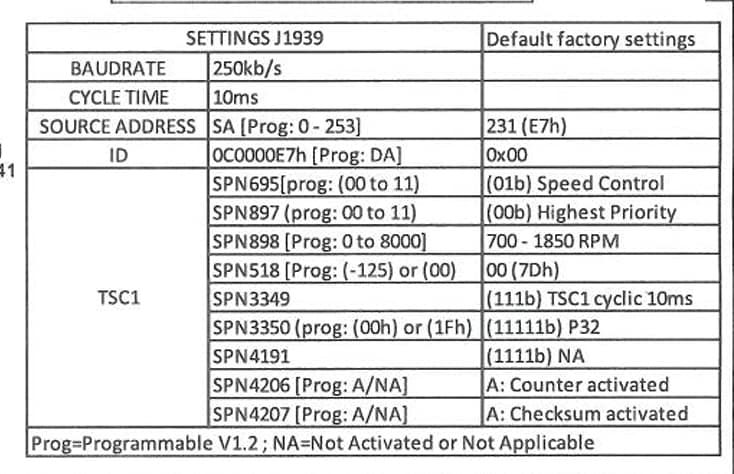

J1939 Parameters:



•  J1939 messages and signals can be activated according to MCS Throttle default values or customer specifications

•  J1939 Parameters like SA (Source Address) or NAME fields can be set according to MCS Throttle default values or customer specifications

•  Optional messages such as DTC (DMx, FMI, MIL, …) can be activated upon customer request

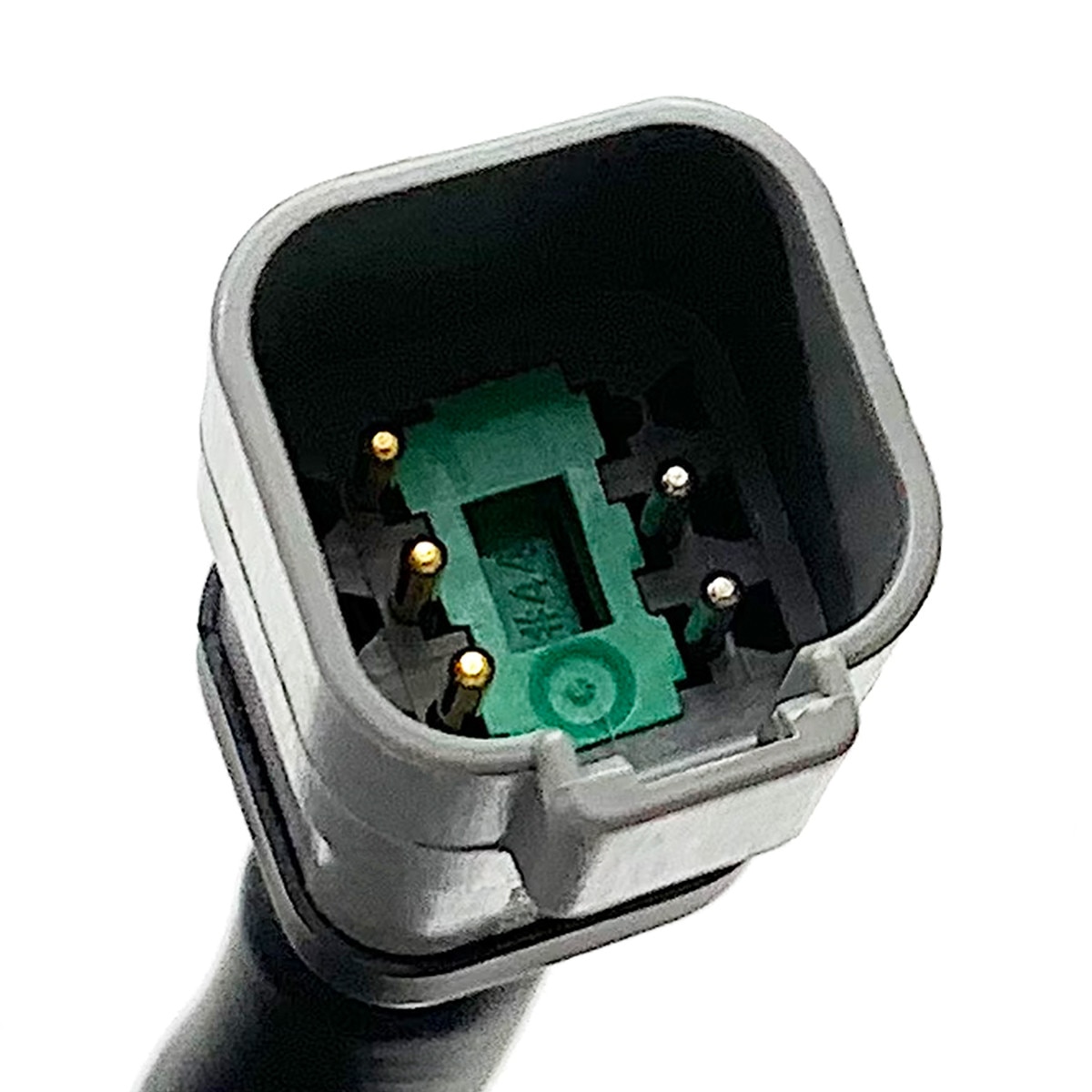

•  J1939 Connector: Deutsch DT06-3S



Literature:

  1. Specifications Manual, 962 Series
  2. 962 X45 XX Drawing
  3. 962 845 43 Drawing with Connectors / J1939 Settings
  4. Pedal Tool Data Sheet





      For California customers: Prop 65 WARNING: This product may have been manufactured with or uses components that can expose you to chemicals which are known to the State of California to cause cancer. For more information go to www.p65warnings.ca.gov



    1. Specifications Manual, 962 Series
    2. 962 X45 XX Drawing
    3. 962 845 43 Drawing with Connectors / J1939 Settings
    4. Pedal Tool Data Sheet
