Enovation Powerview Audible Alarm PVAA20-A (78700055)
Enovation PowerView Audible Alarm PVAA20-A (78700055)
The Murphy PowerView Audible Alarm 2" with Brushed Silver Bezel PVAA20-A alerts operators to fault conditions via piezoelectric alarm and relay contacts. It also has a temporary silencer button that silences the audible tone for 2 minutes on warnings and 30 seconds on shutdown conditions. This gage can be powered by 12 or 24 VDC systems.
PRODUCT FEATURES:
- 2-inch size PowerView Gage
- Bezel Type (flat lens) A20 Brushed Silver
- Simple Installation and Wiring Design
- For Modern Electronic Engines and Equipment Using SAE J1939 Controller Area Network
PRODUCT SPECIFICATIONS:
- Murphy Part No.: PVAA20-A
- Bezel Type: (flat lens) A20 Brushed Silver
- Sound Output Level (PVAA20): 90 dB @ 30 cm
- Relay Rated Load (PVAA20): 0.5 A, 125 VAC; 1 A, 24 VDC
- Relay Maximum Switching Capacity (PVAA20): 62.5 VA, 30W
- External Audible Alarm Output (PVAA20): 28 VDC, 30 mA max. (current sink)
- Temporary Silence Button (PVAA20): Charge transfer technology
- Maximum Panel Thickness: 3/8 in. (9.6 mm)

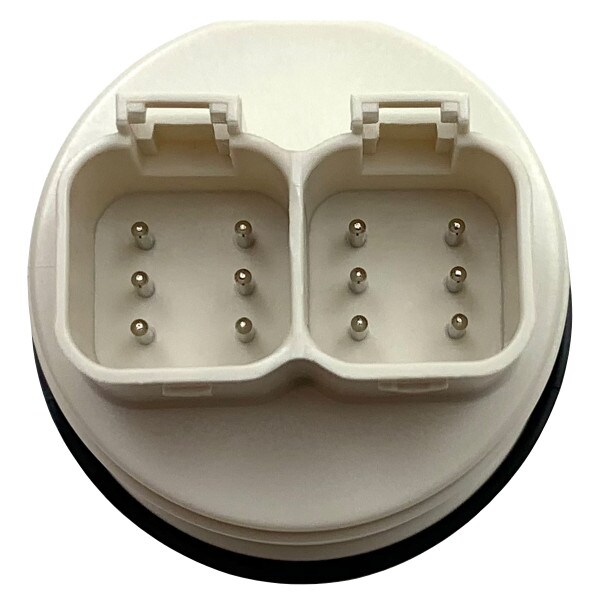

- Connectors: 6-Pin Deutsch DT06 Series
- Shipping Weight: 1 lb. (450 g.)
- Shipping Dimensions: 6 x 6 x 6 inch (153 x 153 x 153 mm.)
- Environmentally Sealed Enclosure: Sealing: IP68, ±5 psi (±34.4 kPA) • Case and Clamp Material: Polyester (PBT) • Lens Material: Polycarbonate • Bezel Material: Polyester (PBT)
