Compliance FL-50 Flange Assembly (47000003)
Details
FL-50 Flange Assembly (47000003): Used in conjunction with the FL-50 valve to adapt the gas piping to the valve, 2" NPT.

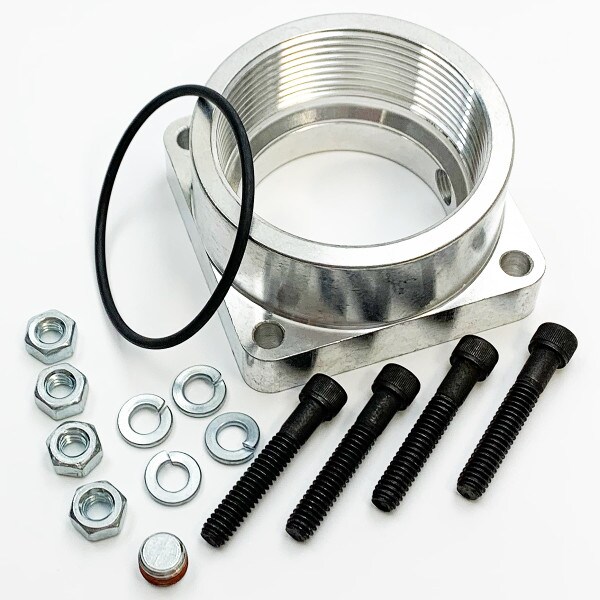

The FL-50 Flange Assembly from Compliance Controls offers a convenient way to adapt a standard 2" NPT gas line pipe to the valve. Two FL adaptors are required for each FL-50 valve. The adaptor flanges are machined on one side for mating to the FL valve flange and tapped to 2" NPT. The flange adaptor incorporates a 1/8" NPT port for measurement of the fuel pressure. This flange adaptor includes the following parts: 1 - oil resistant, hydrocarbon rated sealing gasket. 4 - 3/8" x 1.25" bolts with nuts and lock washers. These adaptors are tested for a maximum working pressure of 75 psig.
MurCal is an Authorized Distributor of FW Murphy products.
MurCal provides experienced application and product support, before and after the sale.
