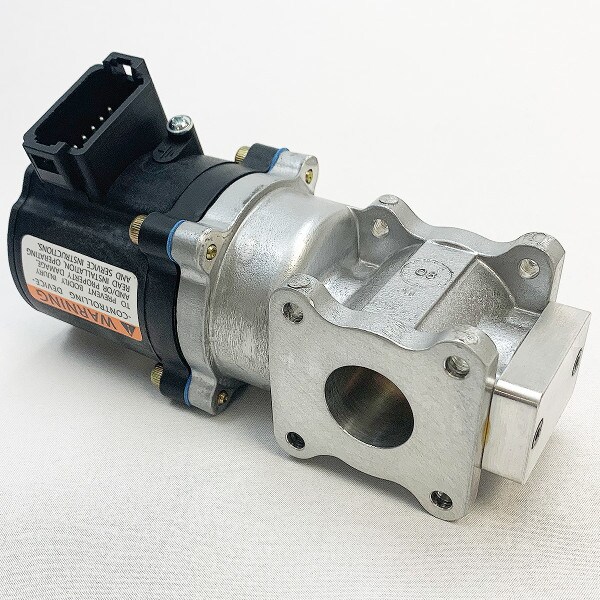

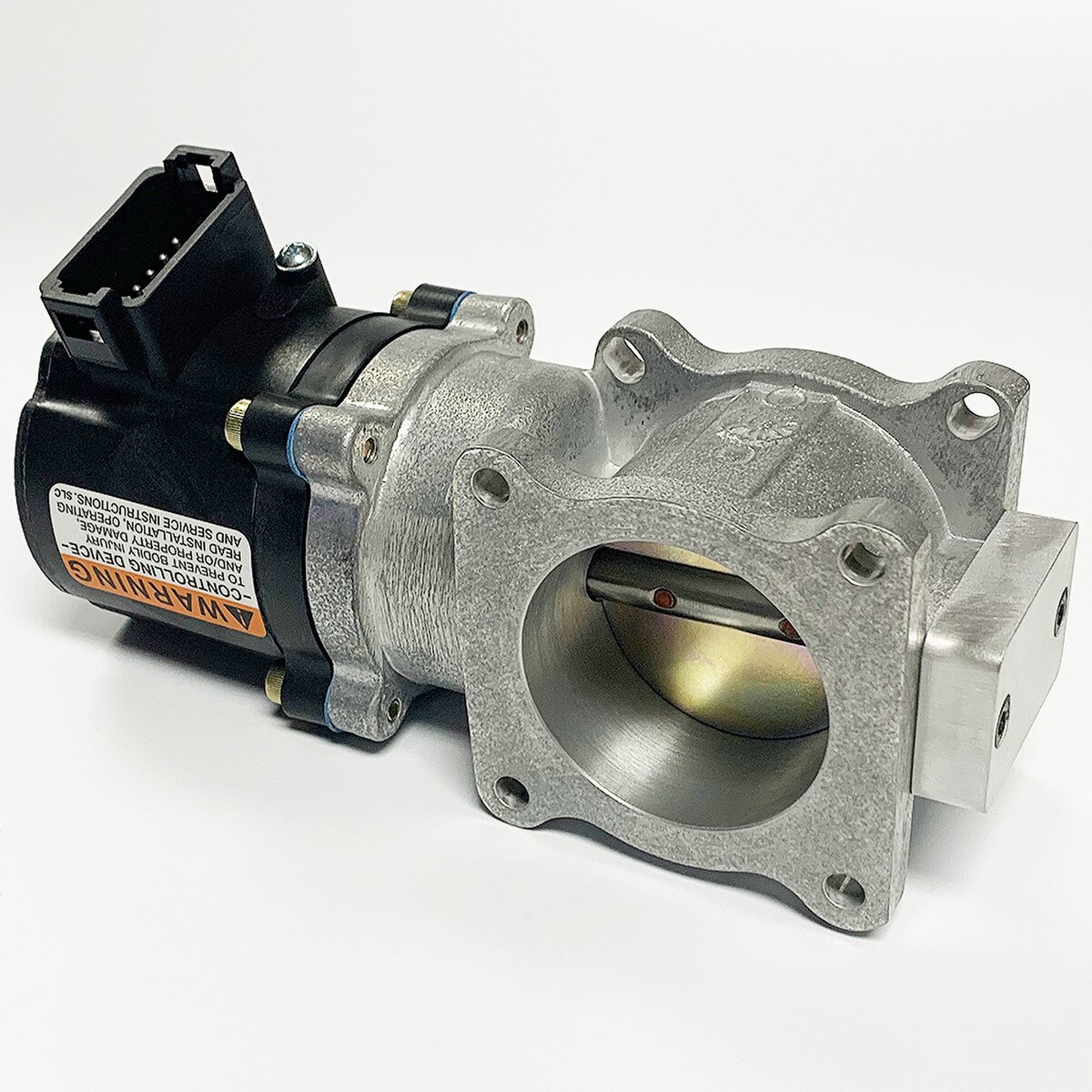

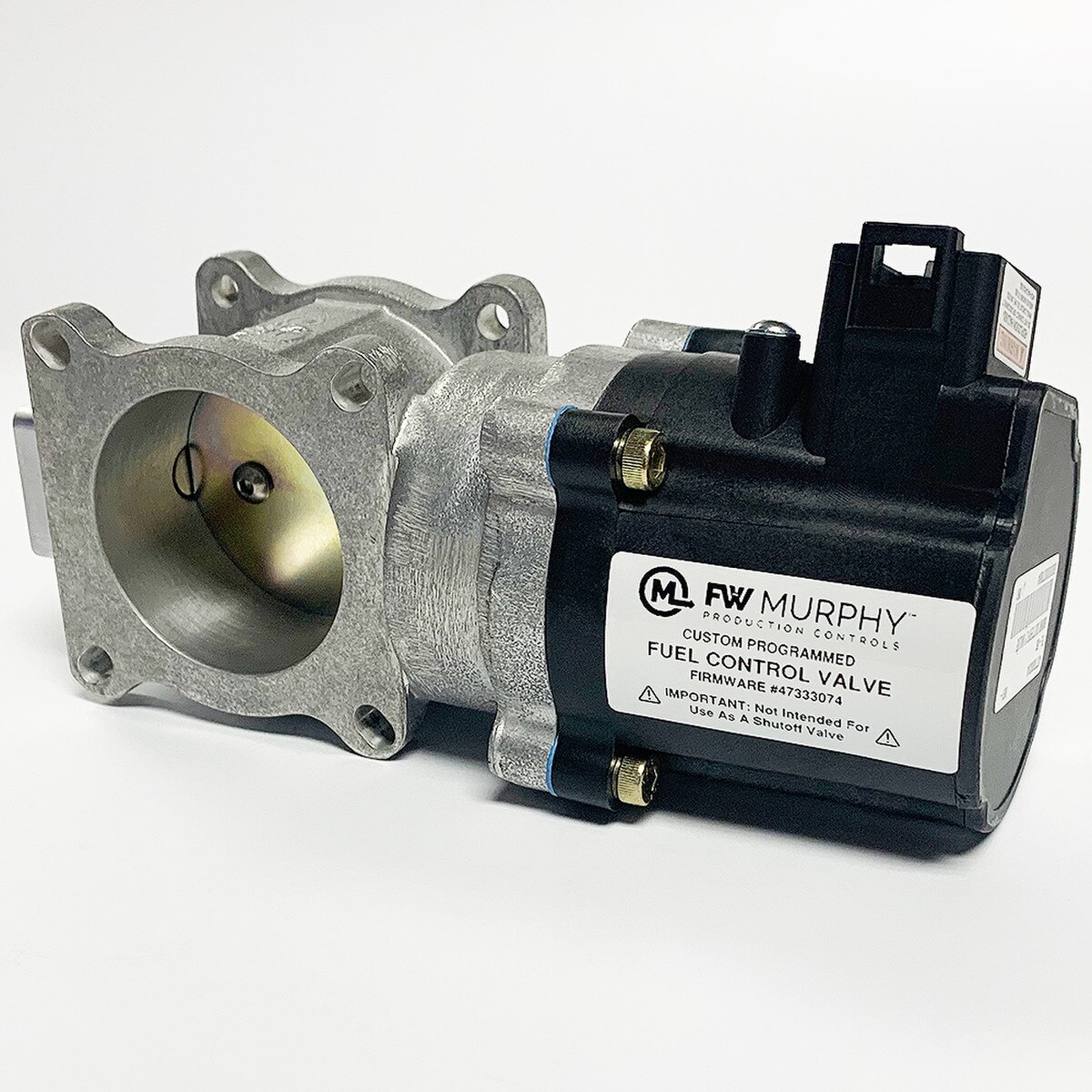

The FL-50 from Compliance Controls is an electrically actuated, full authority valve, that controls all fuel flow to the carburetor or mixer. The Valve position responds proportionally to the valve command. The FL-50 full authority fuel valve has a bore size of 50 MM. Command input from the AFR64-R or AFR64-L control is a pulse width modulated signal along with an outside power source between 9-32 VDC. The valve gives a position feedback to the MEC-R or MEC-L that varies from 0.5 to 4.5 vDC. One valve is required for each control bank on the engine.
