Enovation FLC300R2-NOTR FuelCAN sender (78700694)
Enovation FLC300R2-NOTR FuelCAN sender (78700694)

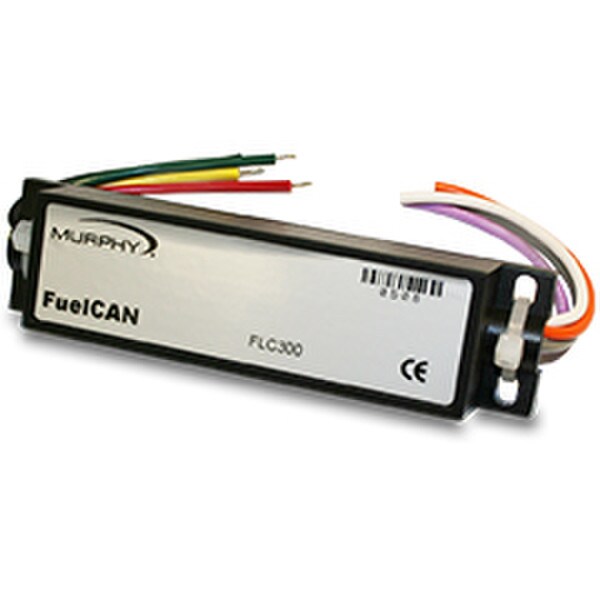

FuelCAN (with no terminating resistor) is a compact interface that translates an analog fuel level sender signal into digital SAE J1939 CANbus data.
The device allows integration of standard senders into modern J1939/CANbus engine instrument and control systems.
FuelCAN modules have three inputs (only one of which is connected at any one time):
input 1 is configured for use with Murphy ES series resistive fuel level senders;
inputs 2 and 3 can be used with fuel level senders having compatible resistance ranges.
FuelCAN inputs can also be factory-configured for use with other types of fuel level or resistive senders.
A rear facing LED indicates input/CANbus status.
FuelCAN is compact and light enough to be incorporated into wiring harnesses but can also be surface mounted via four holes.
The polycarbonate case is fully sealed in epoxy resin for high impact and environmental resistance.
Literature:
MurCal is an Authorized Distributor of Murphy by Enovation products.
MurCal provides experienced application and product support, before and after the sale.
