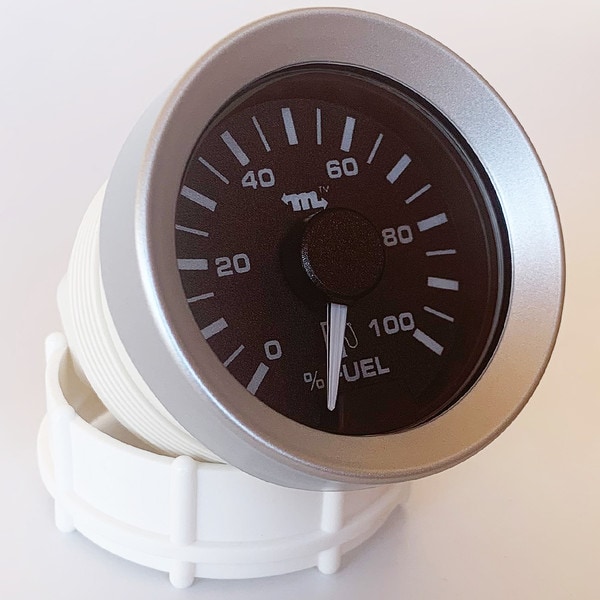

PVCAN20-J-100-A PowerView® CAN Percentage Fuel Level Gage (78700472)
PVCAN20-J-100-A (78700472) PowerView® CAN Percentage Fuel Level Gage; 100 psi
Specifications
- Power Supply Input Voltage: 12/24V (8-32VDC Minimum and Maximum Voltage)
- Power Supply Operating Current: Typically 70mA
- Backlight Maximum Current: 45mA
- Input: CAN (SAE J1939)
- Operating Temperatures: -40°F to 185°F (-40°C to 85°C)
- Storage Temperatures: -76°F to 185°F (-60°C to 85°C)
- Dial: White numerals over black background
- Gage Accuracy: Better than ±1% of full scale
- Environmentally Sealed Enclosure: IP68: ±5PSI (±34.4kPa).
- Case Material: Polycarbonate/Polyester (PC+PBT)
- Clamp Material: Polyester (PBT)
- Lens Material: Polycarbonate
- Bezel Material: ABS
- Maximum Panel Thickness: 3/8 in. (9.6mm)

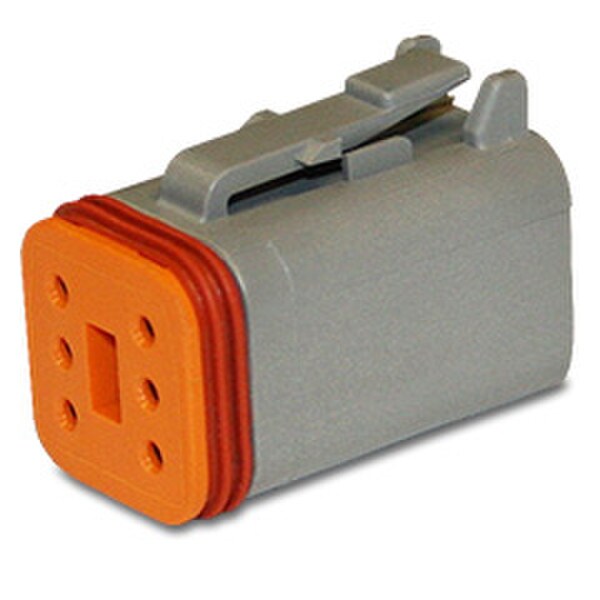

- Connectors: 6-Pin Deutsch DT06 Series
Literature:
Sales Bulletin
