J1939 CAN Throttle Control (CT-327)
J1939 CAN Throttle Control Knob
Plug & Play Solution with Four Programmable Settings

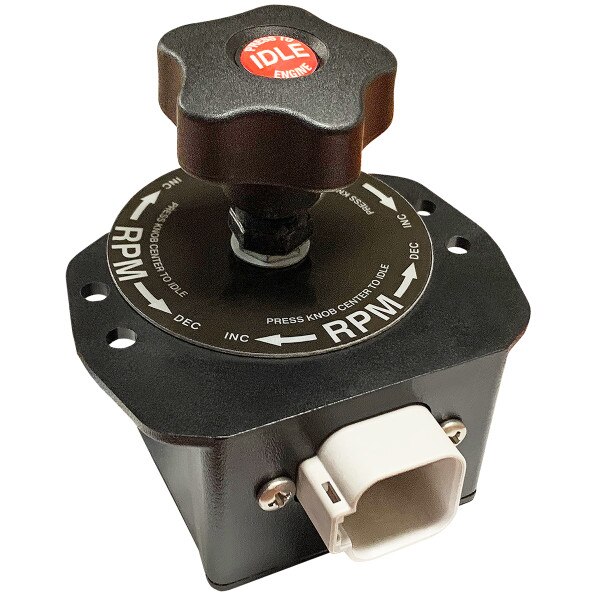

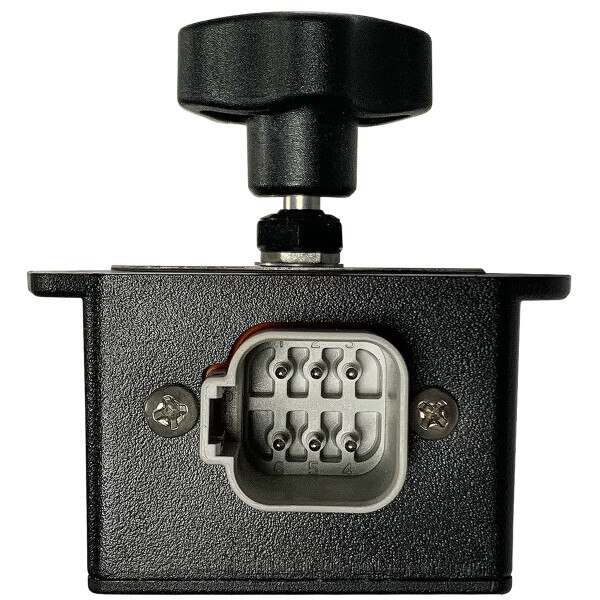

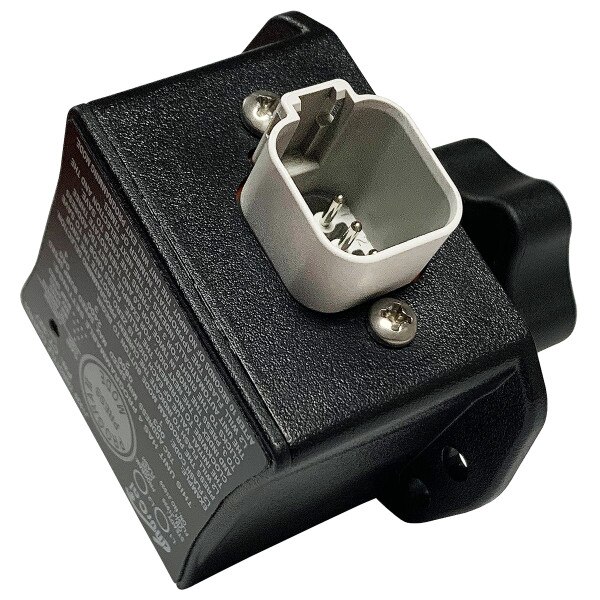

The CT-327 CAN Throttle Knob for J1939 engines provides the look and feel of a traditional throttle knob. A rugged, IP67-rated controller with a watertight, plug and play connector.

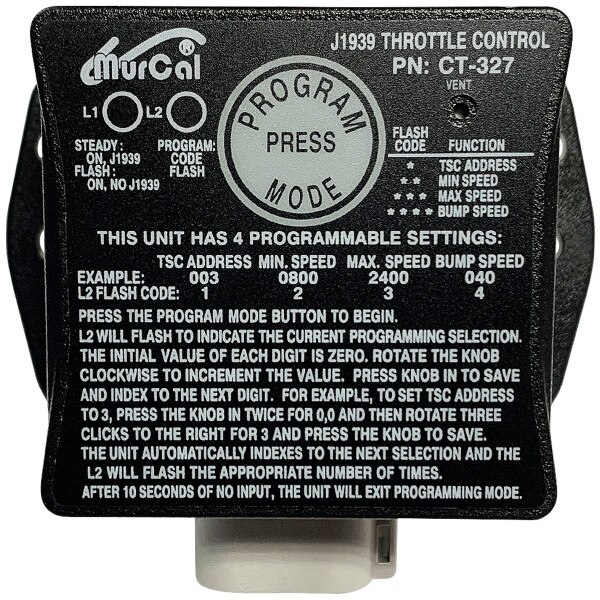

Easy-to-use settings are configurable through the CT Series unit, and include:
• Engine Manufacturer
• TSC Address
• Minimum Speed
• Maximum Speed
• Ramp Rate
• Bump Speed
• RPM per Rotation

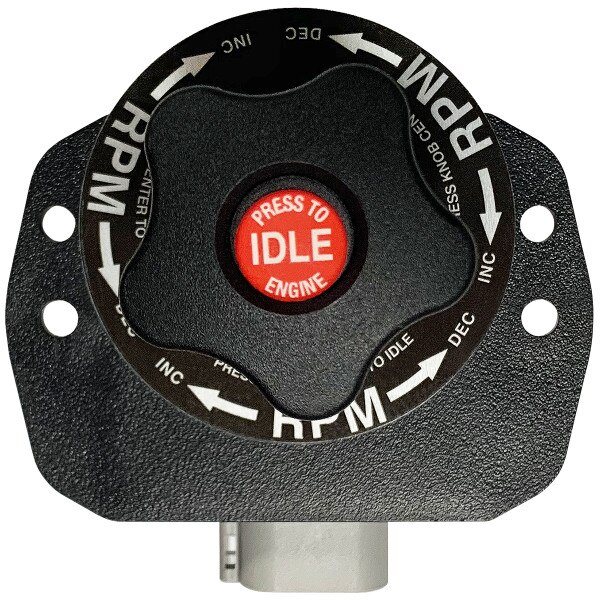

Clockwise rotation to increase speed and counterclockwise rotation to decrease speed. Each “click” of the knob changes speed by the selected BUMP SPEED. Built-in PRESS-TO-IDLE allows the operator to push down on knob for immediate reduction of speed to selected MINIMUM SPEED.
Two configurable digital inputs are available to integrate throttle operation with equipment requirements. A partial list of standard digital input settings include:
• Ramp to Minimum Speed
• Ramp to Maximum Speed
• Ramp Up
• Ramp Down
• Knob Off
• Knob On
Configuration of digital input settings require additional programming, or a factory pre-set.
Q. Will the CT-327 work with J1939 throttling?
A. The CT-327 will only broadcast TSC1 messaging for speed control. If the ECU will take it, great. You can also set the TSC1 address in the CT-327 as well. This product does not have an address search option. You have to know that the ECU is set for to match it.
