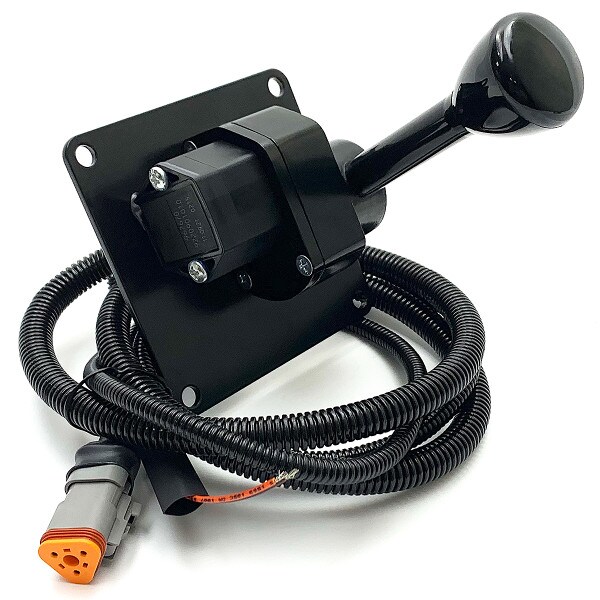

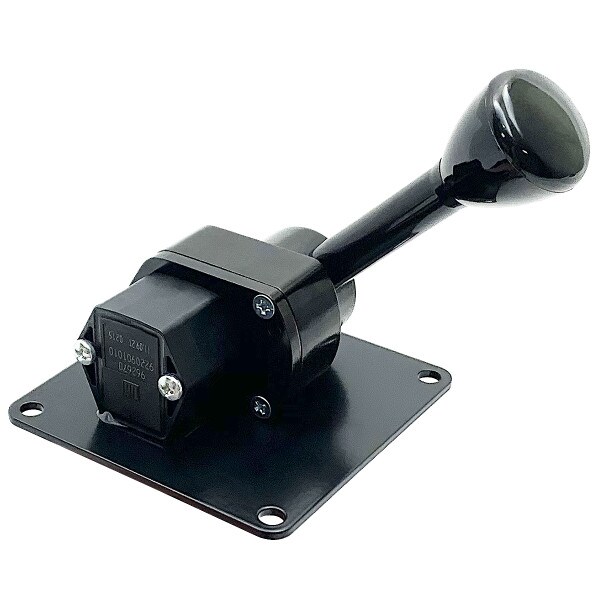

J1939 Top Mounted Hand Throttle (972 890 25)
J1939 Top Mounted Hand Throttle (972 890 25)
All electronic throttle controls are fitted with programmable hall effect sensors. The signals generated by the electronic throttle controls will allow a smooth and precise engine speed control.
The output values are programmable and hence can be adapted to the customer’s specifications. Electronic throttle controls can be connected directly to the engine management system, or engine electronic control module.
Mechanical Specifications:
- Adjustable actuating force
- No return spring
- Allows engine constant RPM at selected rate through lever position
- Easy to use in combination with Throttle Pedal or Throttle Position Sensor
- Very convenient whenever engine is operated from one, or several, remote stations
- CE certified
- Travel angle: 90 degrees
- Supply voltage: 12.0V / 24.0V
- Output signal: CAN J1939 protocol
J1939 Parameters:
- J1939 messages and signals can be activated according to MCS Throttle default values or customer specifications
- J1939 Parameters like SA (Source Address) or NAME fields can be set according to MCS Throttle default values or customer specifications
- Optional messages such as DTC (DMx, FMI, MIL, …) can be activated upon customer request
- J1939 Connector: Deutsch DT06-3S
Literature:
MurCal is an Authorized Distributor of Mobile Control Systems products.
MurCal provides experienced application and product support, before and after the sale.
