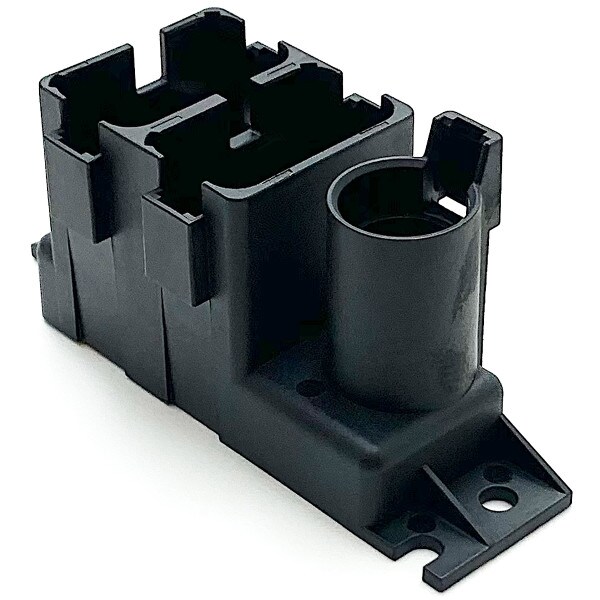

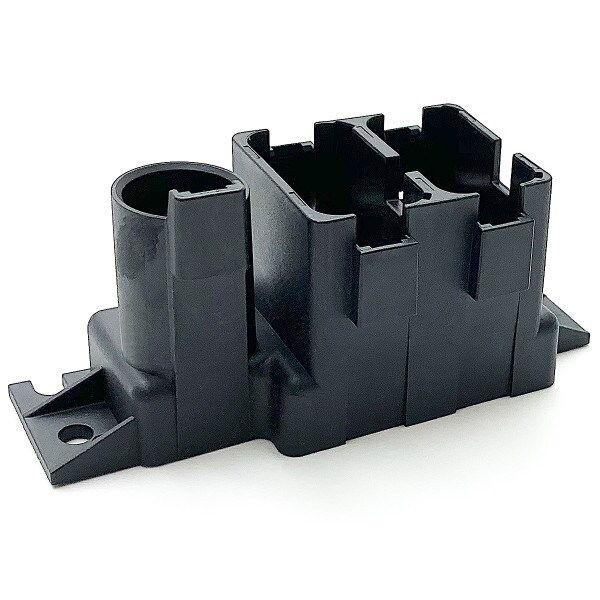

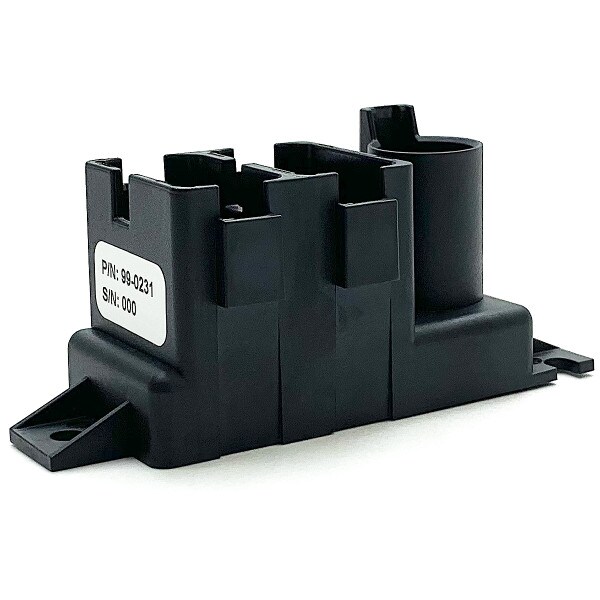

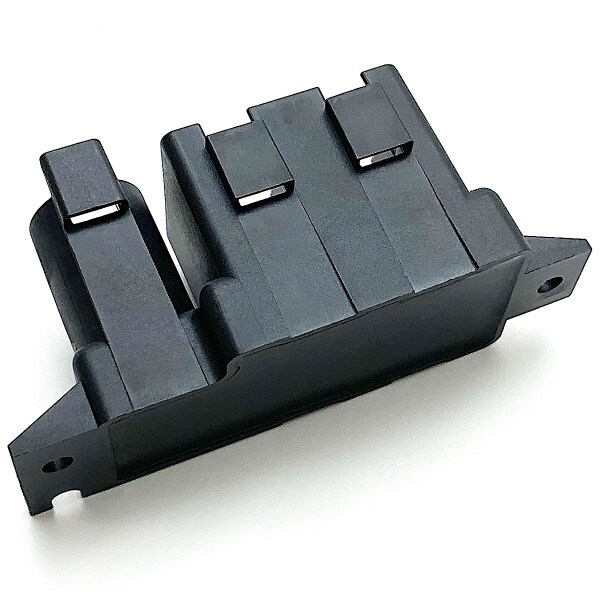

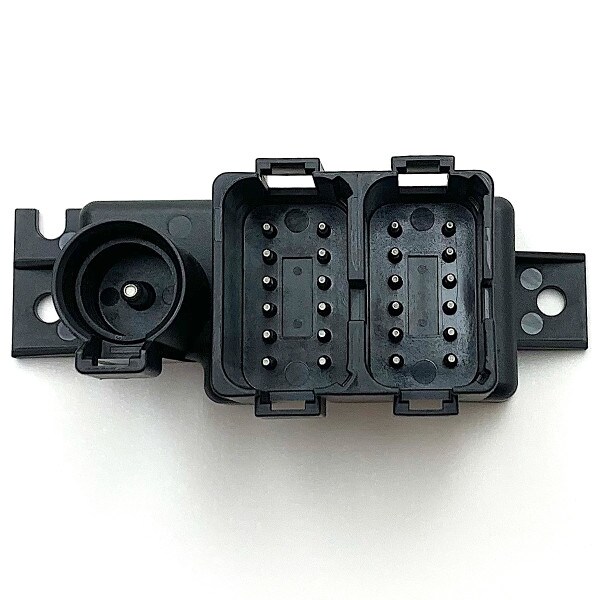

24 Position Sealed Power Bus Splitter (99-0231)

(0)No Reviews yet
$24.85
SKU: Trombetta - 24 Position Sealed Power Bus Splitter (99-0231)

This item is IN STOCK

Current Stock: 47

24 Position Sealed Power Bus Splitter (99-0231)



This CAN bus splitter provides a cost effective and space efficient way of connecting multiple devices to the J1939 CAN bus. This module reduces cost by eliminating "Y" adapters and extra harnesses typically used to provide additional connections to the bus.

Product Features

•  Reduces bus harnessing
•  Reduces actual and production costs
•  Reduces bus connections increasing quality & durability
•  Eases troubleshooting of harnesses
•  Potted for a true IP67 rating
•  Operating & storage temperature rating: -45°C to +85°C
•  Connectors:
    •  J1 = DT04-8PA 8-pin Deutsch Connector
    •  J2 = DT04-2P 2-pin Deutsch Connector
    •  J3 = DT04-3P 3-pin Deutsch Connector
    •  J4 = DT04-3P 3-pin Deutsch Connector
    •  J5 = DTF15-12PA 12-pin Deutsch Connector
•  Dimensions: 4” x 3” x 2.5”
•  Rugged ABS Housing


Literature:


Sales Bulletin
