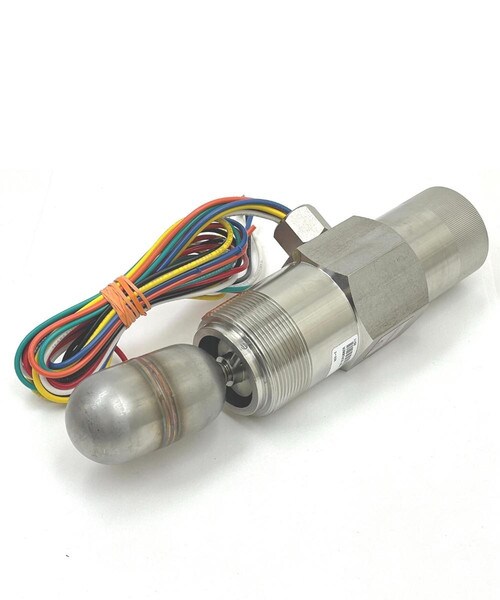

LS200SS-D Liquid Level Switch (15700773)
LS200SS-D: Liquid Level Switch control for scrubber - DPDT (15700773)
The Murphy 2000 PSI Liquid Level Switch LS200SS-D is float activated to operate an electrical DPDT snap switch for alarm or shutdown of an engine or electric motor. The LS200SS-D connects directly into the vessel wall and can be used with a Murphy weld collar (P/N 15050375) or Murphy external float chamber (P/N 15700799).
Specifications:
- 2" NPT Process connection
- More robust design
- Electric model
- Designed for harsh gas compressor scrubber applications
- 304 stainless steel float operates in 0.55 specific gravity and heavier fluids
- LS200 series rated for 2000 psi (13.8 MPa) [138 bar] working pressure
- All models screw directly into the vessel or can be mounted via external float chamber
- 316 stainless steel body for corrosive atmospheres (meets NACE standard MR-01-75 for direct exposure to H2S service)
- Listed for Class I, Div. 1, Grp. C & D locations
- Canadian Registration Number OF1476.2
- Trip on rising liquid level only
- DPDT Snap Switch
Features:
- Murphy Part No.: LS200SS-D
- Body: 316 stainless steel (meets NACE standard MR-01-75 for direct exposure to H2S service)
- Float: 304 stainless steel to operate in 0.55 specific gravity or heavier fluids
- Pressure rating: 2000 psig (13.8 MPa) [138 bar]
- O-ring: Viton
- Process connection: 2” NPT
- Temperature rating: -20 to 300°F (-29 to 149°C)
- Electrical: DPDT (see “Electrical” section for configuration/rating)
- Wiring: 18 AWG x 36 in. (1.0 mm2 x 916 mm)
- Approximate Shipping Weight: 6 lb. 10 oz. (3 kg)
- Approximate Shipping Dimensions: 14 x 5 x 3-1/2 in. (356 x 127 x 89 mm)
- Insertion Depth (inches): Standard 4.6; w/ 1” Extension 5.6
- Vertical Clearance (inches): Standard 2.8; w/ 1” Extension 3.15
