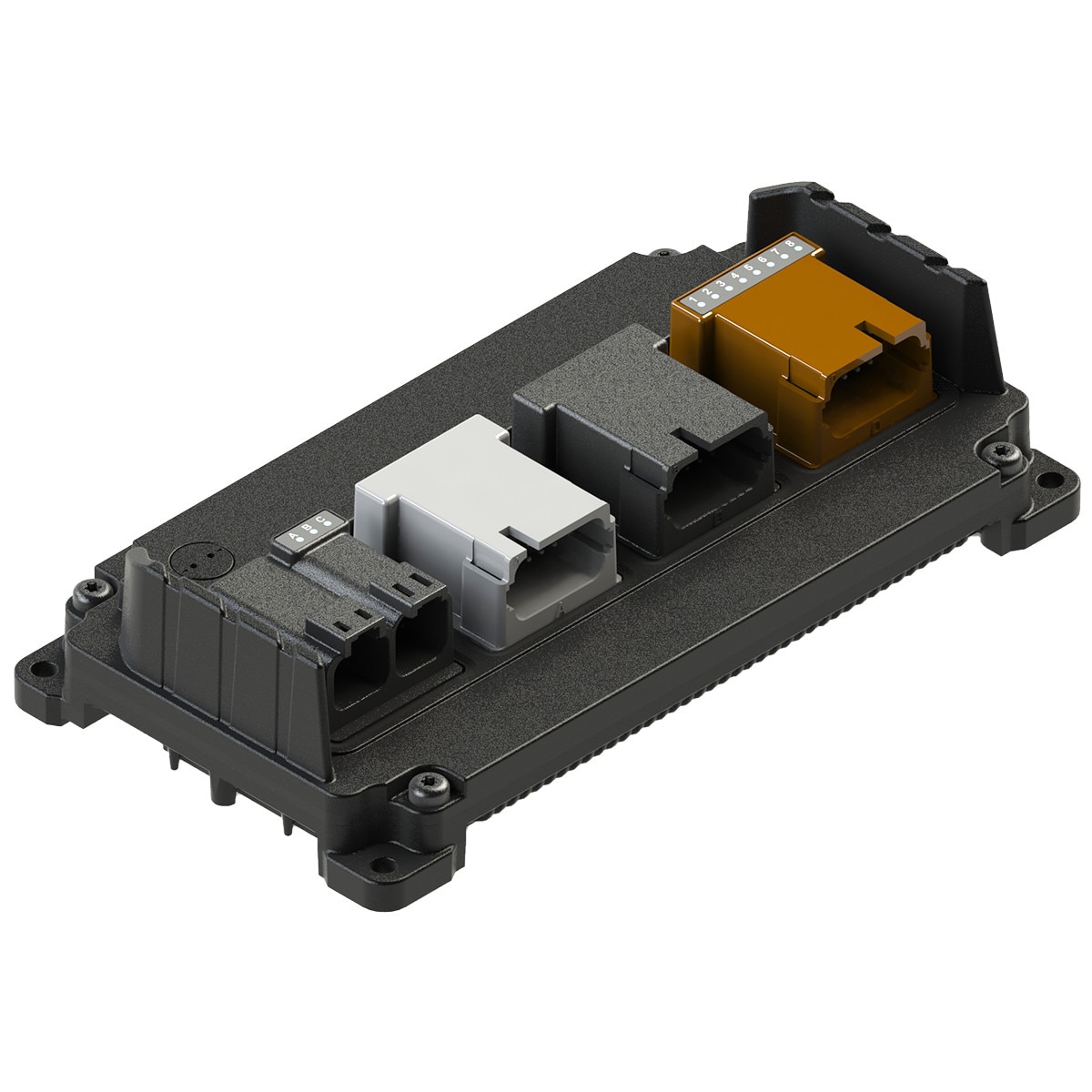

MC4-21-14-H8: uControl® High-Current Mobile Machine Controller (58700007)

(0)No Reviews yet
$1,172.99
SKU: MC4-21-14-H8 uControl Mobile Controller (58700007)

This item is IN STOCK

Current Stock: 3

MC4-21-14-H8: uControl® High-Current Mobile Machine Controller (58700007)



The uControl® MC4-21-14-H8 High-Current Mobile Machine Controller offers flexible I/O with high-current control for a variety of equipment needs and applications. Featuring three (3) CAN 2.0B/J1939 channels, 21 analog inputs and 22 software selectable outputs (eight (8) 15A PWM / six (6) 4A PWM / eight (8) high-current), the MC4-21-14-H8 controller delivers extreme durability with precision control for any size job.

The eight high-current (15A PWM) outputs offer extra power with dedicated status LEDs for each high-current output.

Simplify your equipment control using reliable, software selectable, universal outputs with feedback. The MC4-21-14-H8 controller works great with extended low voltage operation and also provides short circuit and overload protection. MC4-21-14-H8 controllers feature a rugged IP69K-sealed aluminum enclosure with gel potting that allows it to be mounted where you need it, including high-heat and high-vibration areas like in engine compartments or on attachments.



Features:



•  Open/Short Circuit Protection and Overcurrent Protection
•  Built to Perform in High Heat and High Vibration Areas
•  Features Universal Inputs and Flexible Proportional Outputs
•  Eight (8) High Current Outputs with Individual LED Indicator Lights
•  Integrate Quickly with ACE or Program with CODESYS


The uControl MC4-26-20 Mobile Machine Controller is programmable with ACE or CODESYS, both intuitive new development environments from Enovation Controls.



Helpful Links:

  1. Enovation Controls Technical Specification
  2. ACE Quick-Start-Guide
  3. CODESYS Tools for uControl Series Controllers



Literature:



  1. uControl MC4-21-14-H8 Datasheet
  2. uControl Mobile Controller Family Bulletin
  3. uControl Series Technical Brochure
  4. ACE Bulletin
  5. uControl Controller Series Overview Brochure
  6. uControl Technical Reference Manual


MurCal is an Authorized Distributor of Murphy by Enovation products.
MurCal provides experienced application and product support, before and after the sale.
