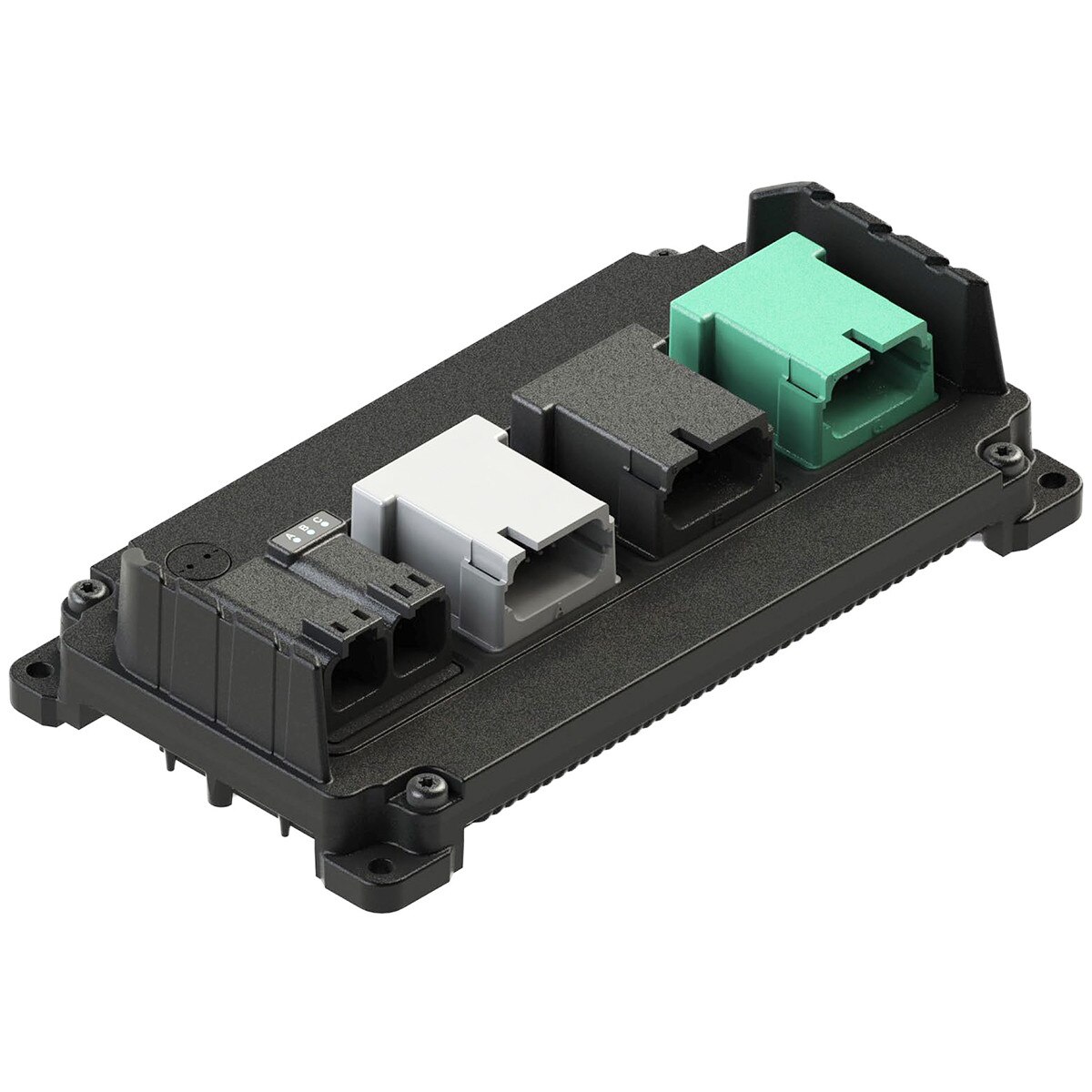

MC4-26-20: uControl® Mobile Machine Controller (58700006)
MC4-26-20 (58700006): uControl mobile controller; (20) standard software selectable outputs: (10) 4A PWM and (10) dual-range 4A / 0.5A PWM; (26) analog inputs, (3) CAN 2.0B/J1939 channels.
The uControl® MC4-26-20 Mobile Machine Controller brings powerful hydraulic control and offers flexible I/O options for a variety of equipment needs and applications. With the most I/O of any controller in the uControl series, the MC4-26-20 features three (3) CAN 2.0B/J1939 channels, 26 analog inputs and 20 software selectable outputs. The MC4-26-20 controller delivers extreme durability, precision control, and works great with extended low voltage operation. It also provides short circuit and overload protection.
Simplify your equipment control using reliable, software selectable, universal outputs with feedback. The MC4-26-20 controller features a rugged IP69K-sealed aluminum enclosure with gel potting that allows it to be mounted where you need it, including high-heat and high-vibration areas like in engine compartments or on attachments.
Features:
• Built to Perform in High Heat and High Vibration Areas
• Easy to Scale Up or Down Within the Hardware Family
• Features Universal Inputs and Flexible Proportional Outputs
• Open/Short Circuit Protection and Overcurrent Protection
• High Current Model Available
The uControl MC4-26-20 Mobile Machine Controller is programmable with ACE or CODESYS, both intuitive new development environments from Enovation Controls.
Helpful Links:
- Enovation Controls Technical Specification
- ACE Quick-Start-Guide
- CODESYS Tools for uControl Series Controllers
Literature:
- uControl MC4-26-20 Datasheet
- uControl Mobile Controller Family Bulletin
- uControl Series Technical Brochure
- ACE Bulletin
- uControl Controller Series Overview Brochure
- uControl Technical Reference Manual
MurCal is an Authorized Distributor of Murphy by Enovation products.
MurCal provides experienced application and product support, before and after the sale.
