MC500 Power Unit Panel 12 VDC (4021049-12)
MC500 Power Unit Panel 12 VDC (4021049-12)

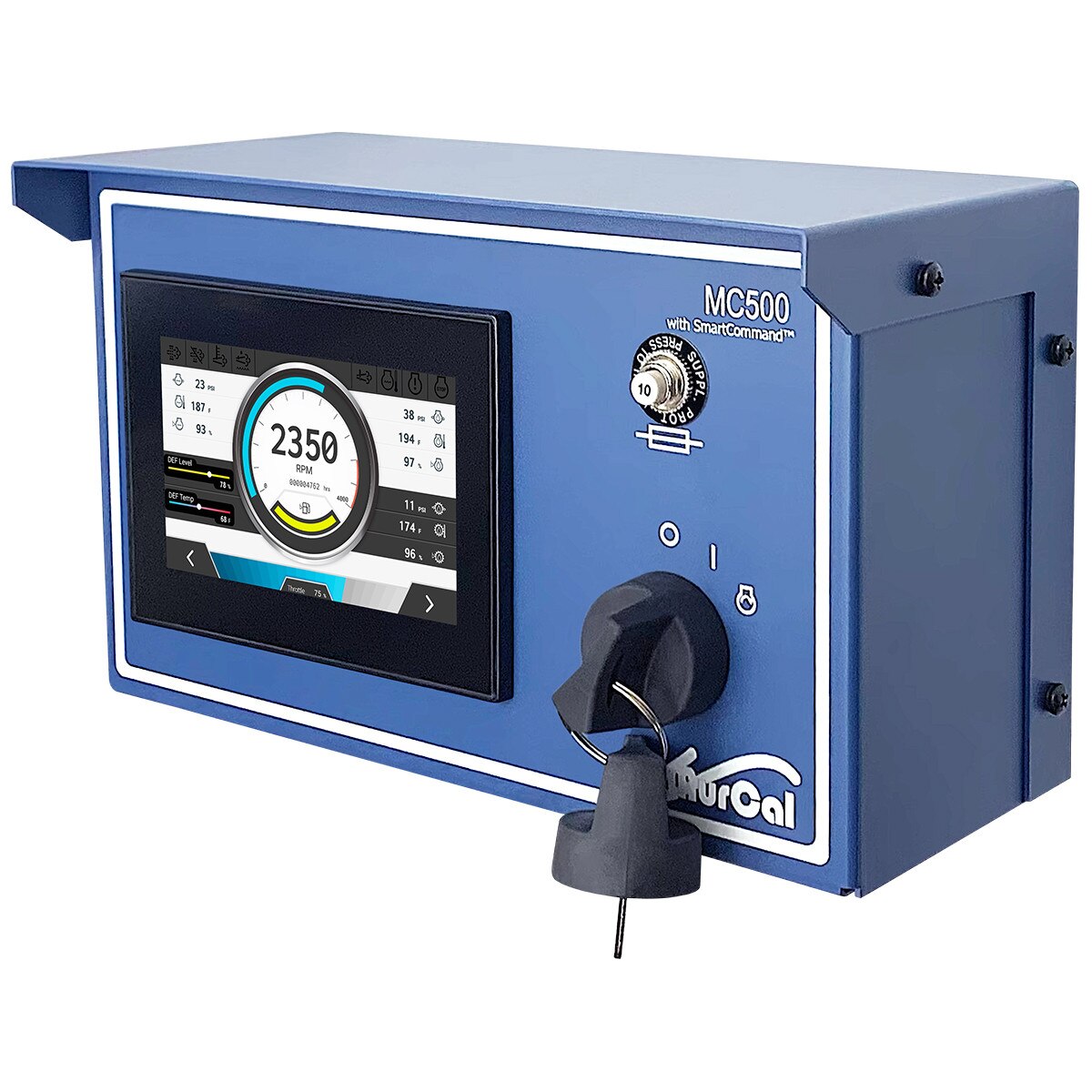

MurCal’s MC500 Power Unit Panel is a 12 Volt engine panel that combines several features that enhance the Powerview® PV500-MC SmartCommand™ display in terms of functionality and environmental protection.

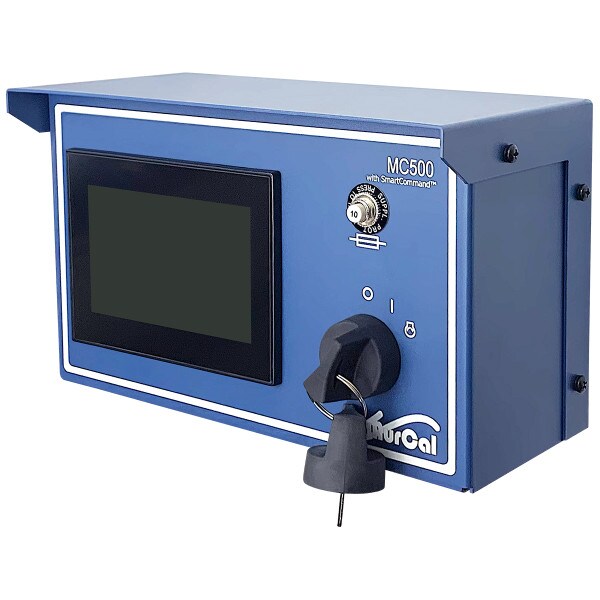

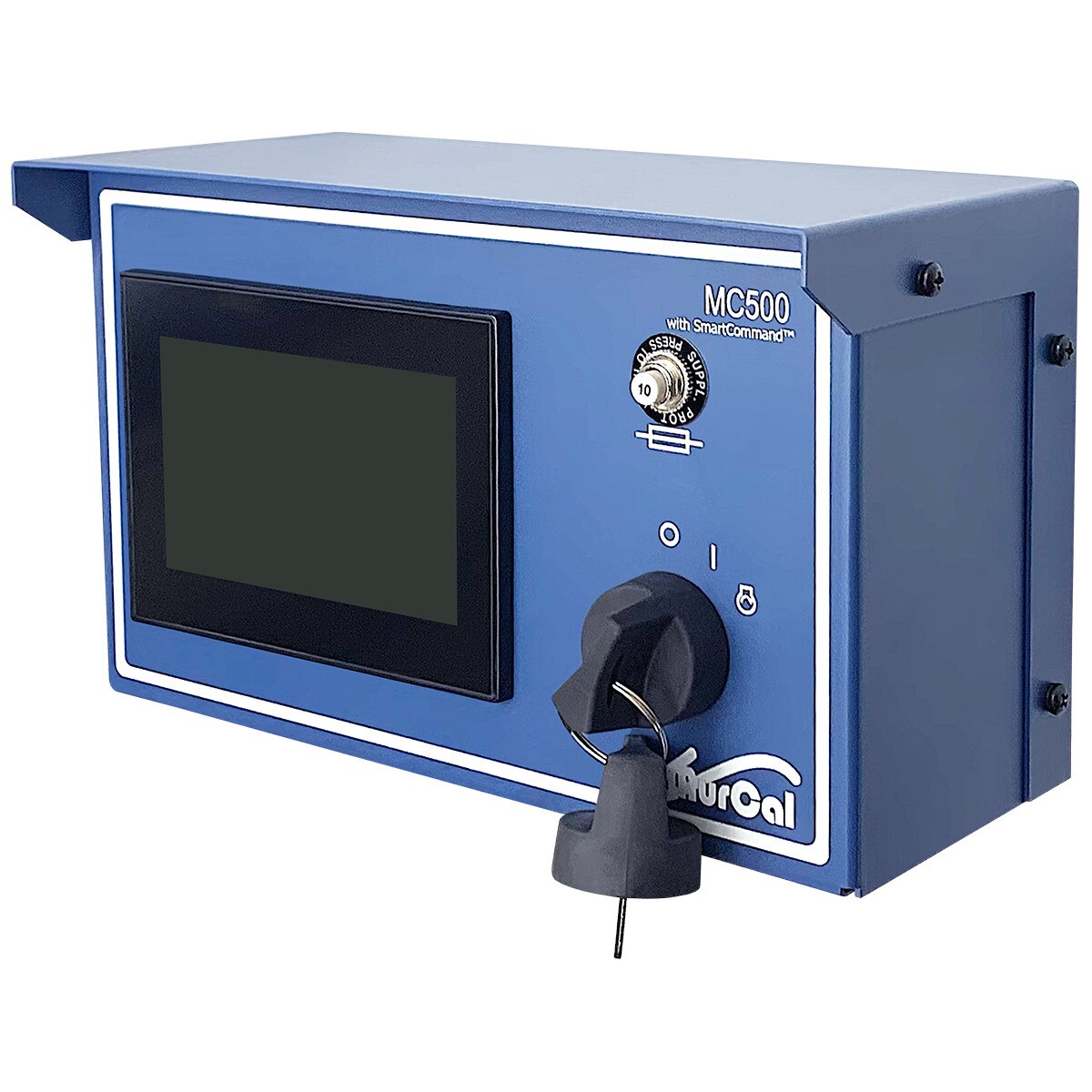

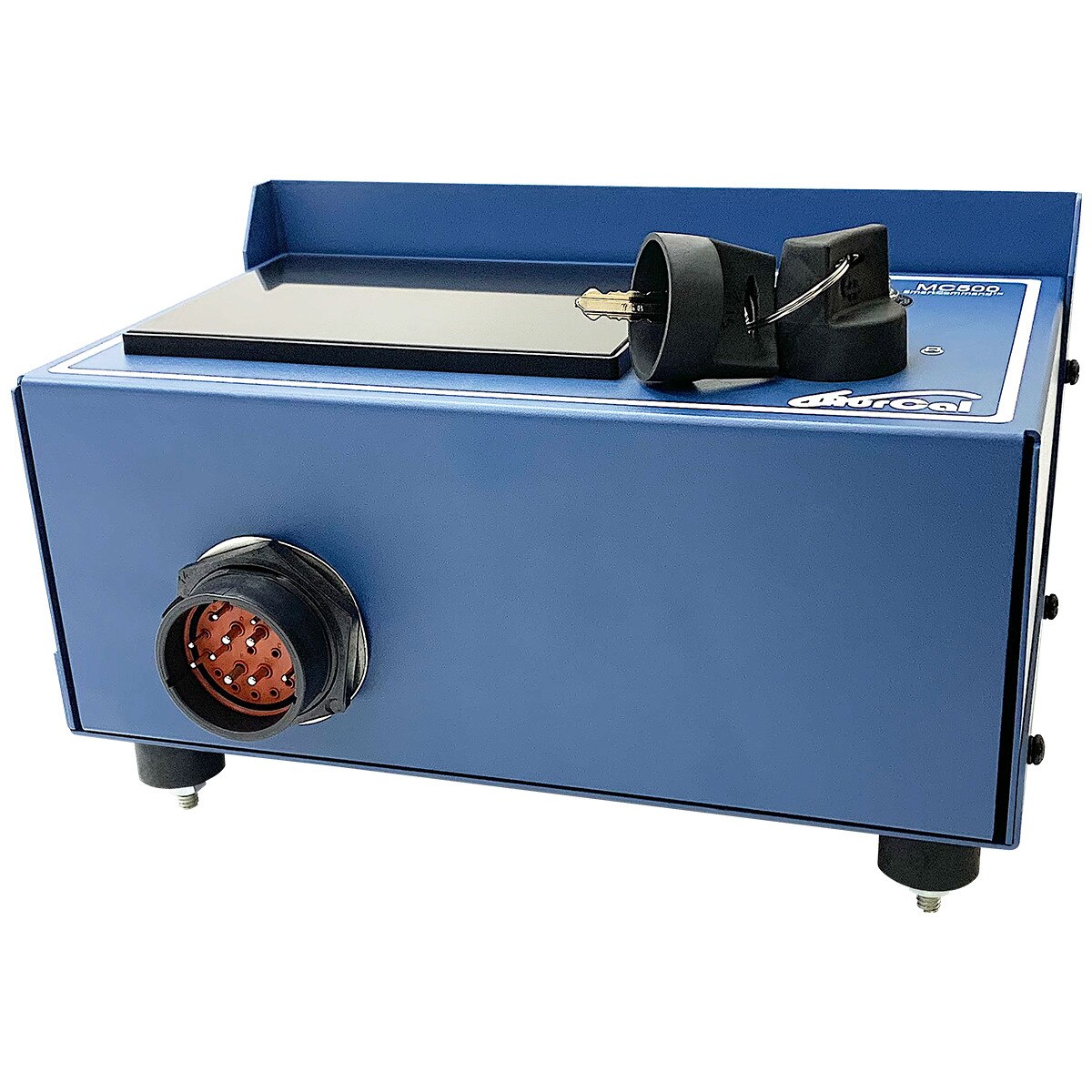

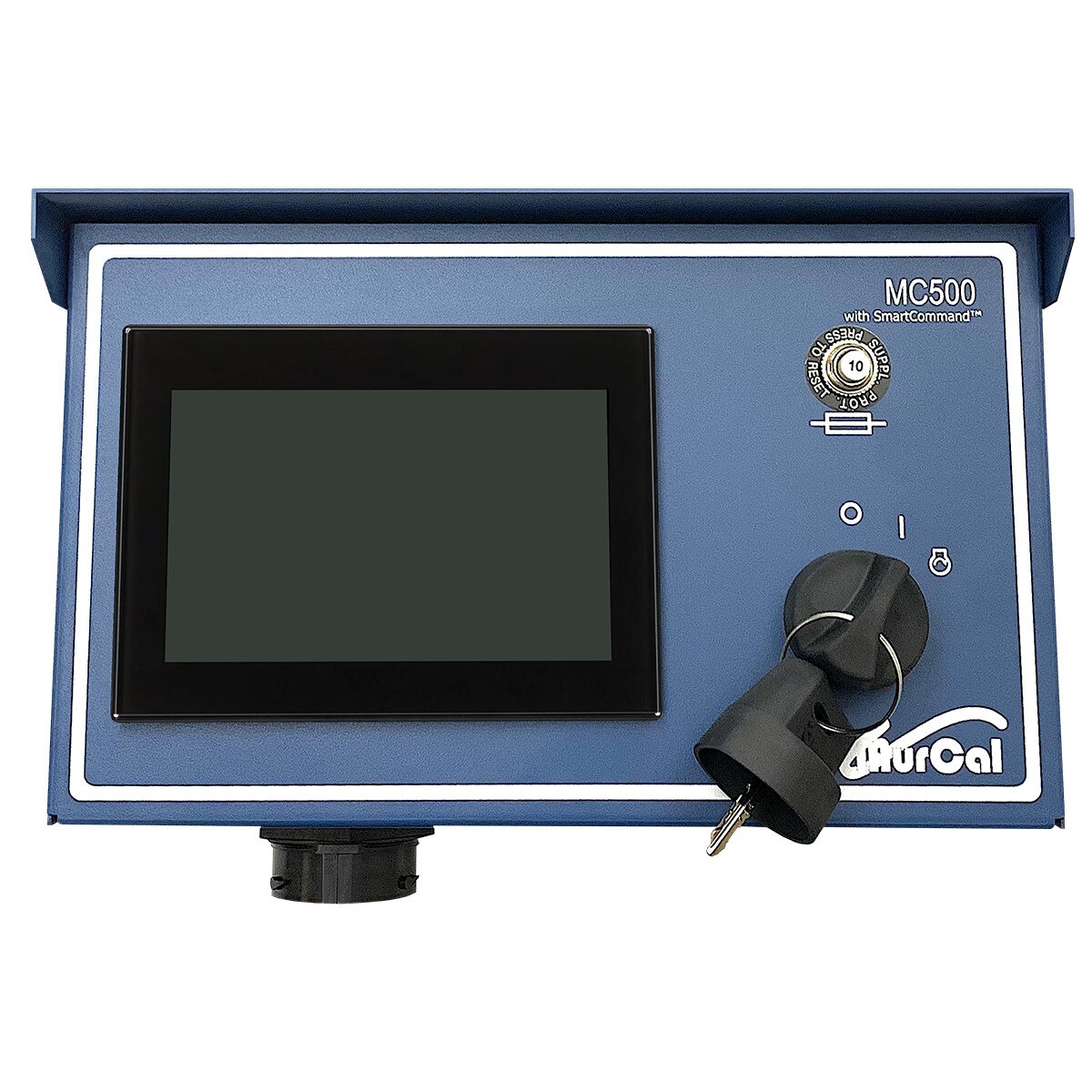

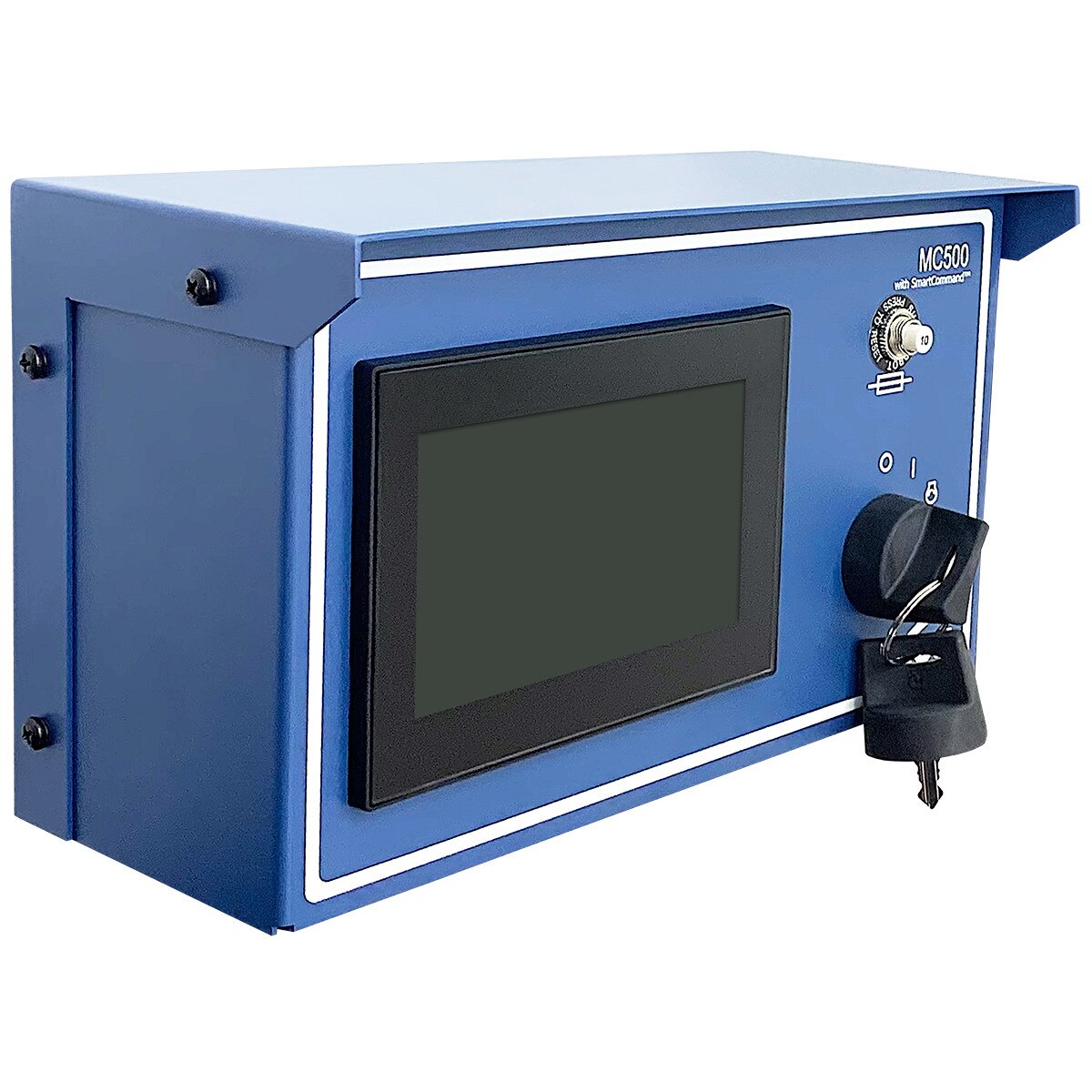

The MC500 Power Unit Panel is a two-piece, powder-coated metal enclosure that measures 10” W x 6”H x 4” D, and features:
- Powerview® PV500-MC SmartCommand™ customizable display and controller
- 4 (Four) Position Keyswitch: ACC, OFF, ACC/IGN, START; with spring return, key boot, and anti-restart
- 10A Panel Mount Breaker

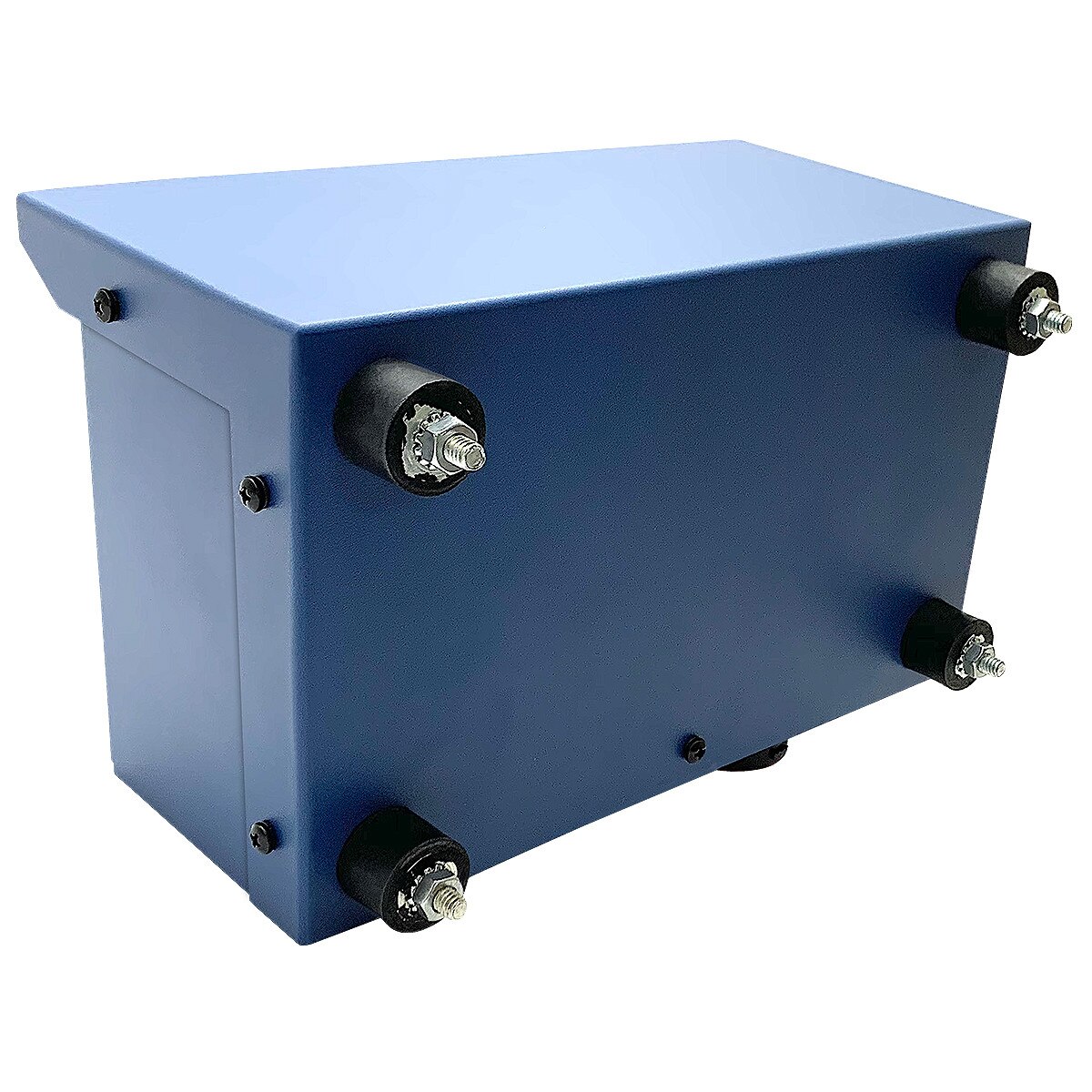

- 4 (Four) Shockmount Assemblies, CM x 1/2"
PV500-MC Display with SmartCommand™
A Powerful, Affordable, and Configurable Solution
MurCal’s PV500-MC Display with SmartCommand™ provides a simple and robust software solution for display and monitoring of industrial, on-highway and marine engines. By combining Enovation’s PowerView® 500 display with our proprietary SmartCommand™ software configuration package, you have the ability to customize the critical information needed to accurately monitor your engine’s performance straight out-of-the-box.
Feedback was gathered from our clients regarding the struggles they’ve faced integrating PowerView® displays with their engine control projects. Our response was to create a product centered around these 4 key points:
- a software solution that is affordable and easy to understand
- a smart design that offers simple, yet flexible, configuration options
- a way to avoid customized programming that can be costly and difficult to comprehend
- a helpful, easy to use Set-Up Wizard that walks you through a series of configuration screens to connect your engine to your new control display in minutes.
SmartCommand™ software was developed with the end-user in mind. SmartCommand™ effortlessly connects an affordable, configurable control solution to your engine control project.

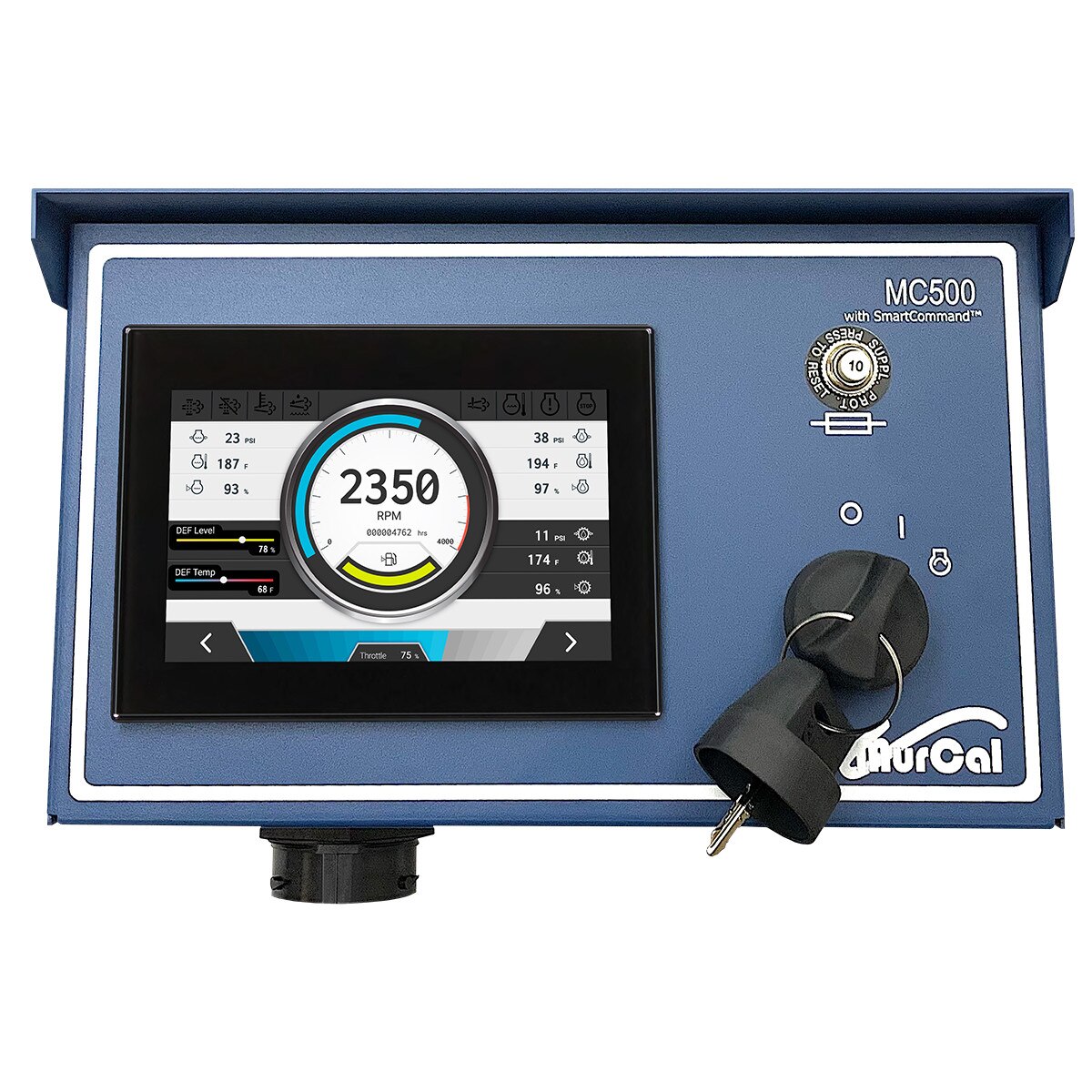

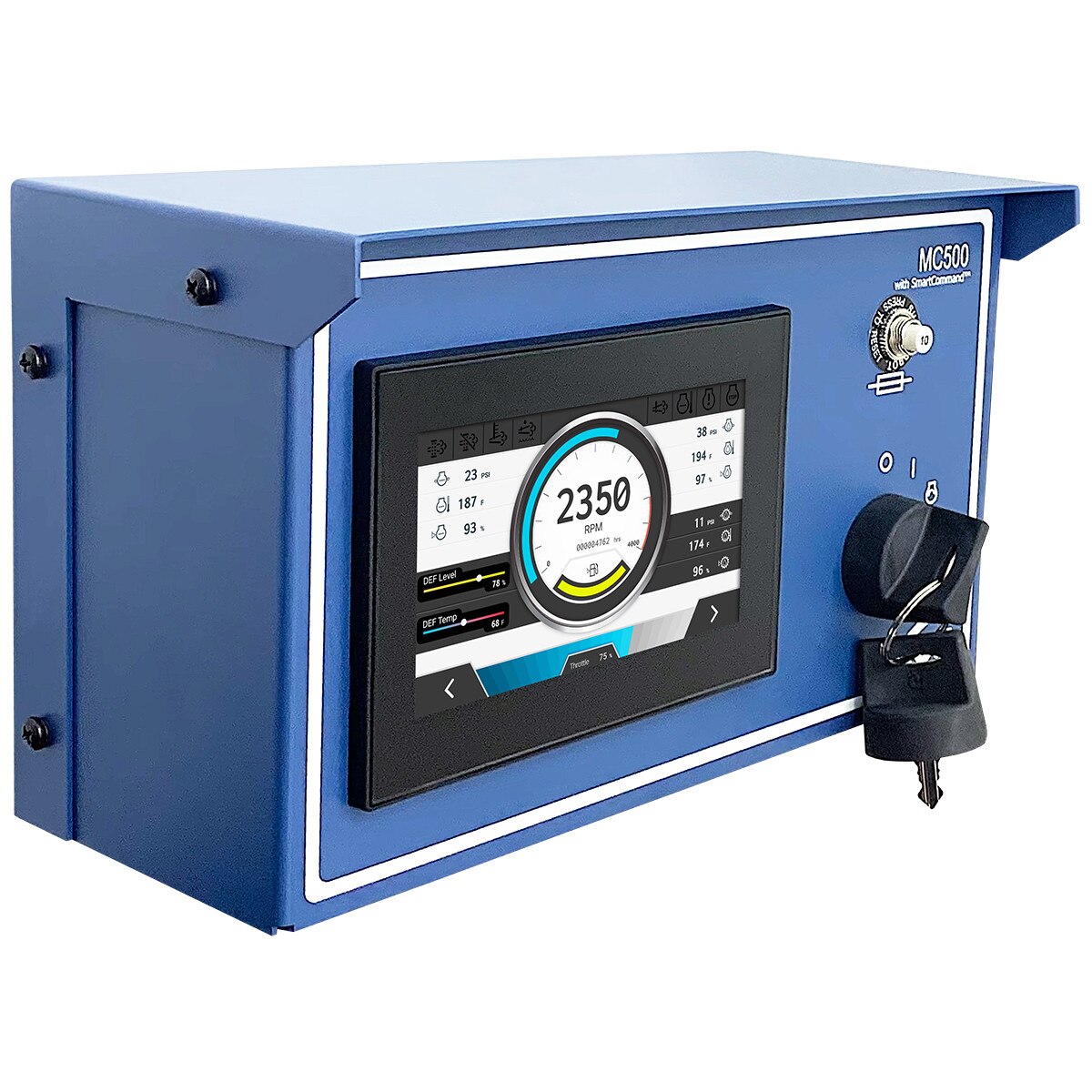

SmartCommand™ is pre-loaded on Enovation’s PowerView® 500 display, a full-color touchscreen display that integrates vital engine, transmission and diagnostic information into an easy-to-read operator interface. The display is easily viewed in full sunlight and contains an optically bonded LCD inside an IP67-rated case to keep it safe in all-weather environments. A high-speed processor allows it to boot quickly as well as seamlessly showcase graphics, transitions and videos. The glove-friendly touchscreen and rugged design make it a perfect solution for all types of environments and applications. When combined with SmartCommand™ the display is unbeatable.
When you receive your new PV500-MC Display with SmartCommand™, simply connect the display and follow the Set-Up Wizard to pre-configure the display’s software to your specific engine. Select set-points, gauges, parameters, and viewing modes from a predefined list on the display itself. Most gauge screen layouts with analog, linear and/or digital gauges can be configured to display a variety of parameters from the CANbus and local display I/O. There are several indication lights, which may be viewed across the top of the screen layout, for failure warnings and emissions compliance alerts. SmartCommand™ provides the ability to monitor alarms and faults, attach up to three NTSC compliant video camera feeds, view service reminders, enable password security, and toggle between day & night mode brightness levels.
For marine applications, SmartCommand™ includes software support for use as a J1939 to NMEA 2000 gateway, providing a seamless experience for displaying engine information on Simrad, Furuno, Raymarine, and Garmin display products. Parameters like trip fuel used, trip hours, and total fuel used are included.
MurCal’s PV500-MC Display with SmartCommand™ is the most powerful and affordable solution for the customization of the Enovation PowerView® 500 display available on the market today. An interface design, paired with a full-color display, that utilizes thoughtful screen layouts and eye-catching color schemes to clearly organize engine information and make errors or warnings visible during operation. Simply unpack the box, mount, connect, configure, and enjoy!
- MurCal PV500-MC Display with SmartCommand™ Sales Bulletin
- MurCal PV500-MC Display with SmartCommand™ User Guide
- MC500 Power Unit Panel Wiring Diagram (40-21-049-A)
- MC380-MC485-MC500 w/Smart Command Sales Bulletin
