MC485 Power Unit Panel 12 VDC (4021052-12)

(0)No Reviews yet
$1,499.00
SKU: MC485 Power Unit Panel 12 VDC (4021052-12)

This item is IN STOCK

Current Stock: 5

Details

MC485 Power Unit Panel 12 VDC (4021052-12)

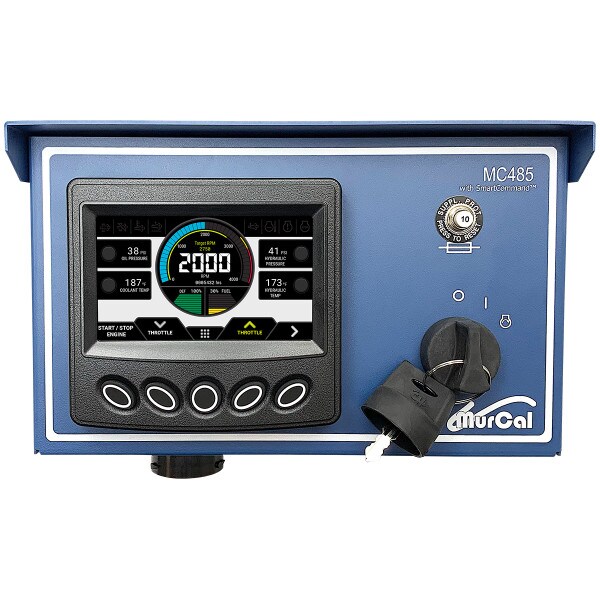

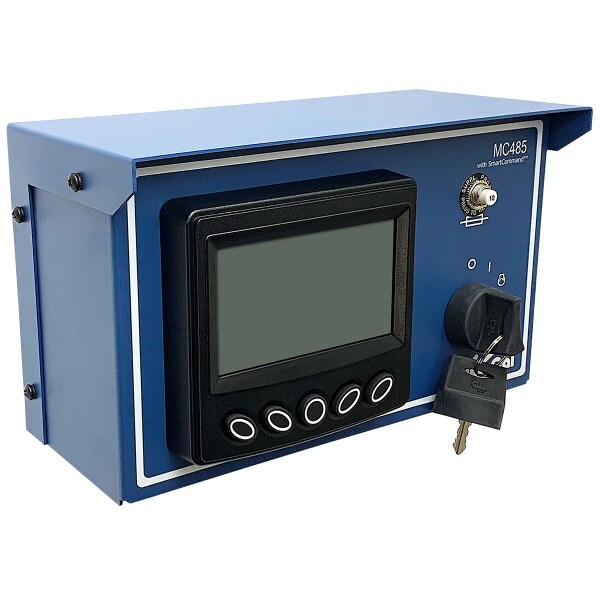

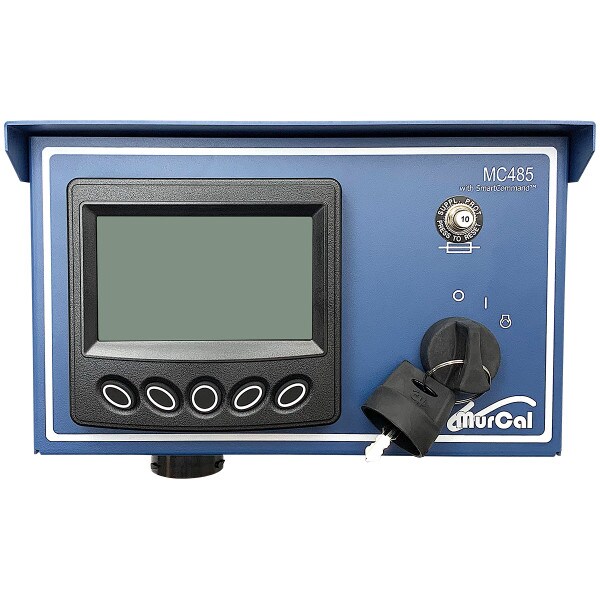

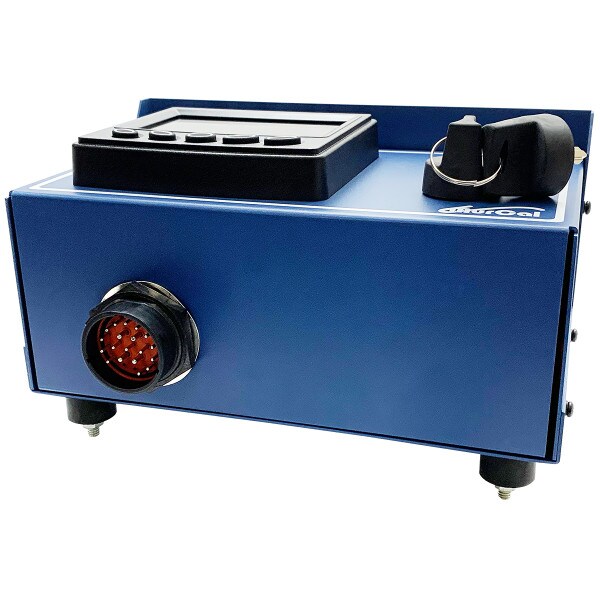

MurCal’s MC485 Power Unit Panel is a 12 Volt engine panel that combines several features that enhance the Powerview® PV485 display in terms of functionality and environmental protection.

The MC485 Power Unit Panel is a two-piece, powder-coated metal enclosure that measures 10” W x 6”H x 4” D, and features:

  • Powerview® PV485 customizable, all-in-one color display and controller
  • 4 (Four) Position Keyswitch: ACC, OFF, ACC/IGN, START; with spring return, key boot, and anti-restart
  • 10A Panel Mount Breaker

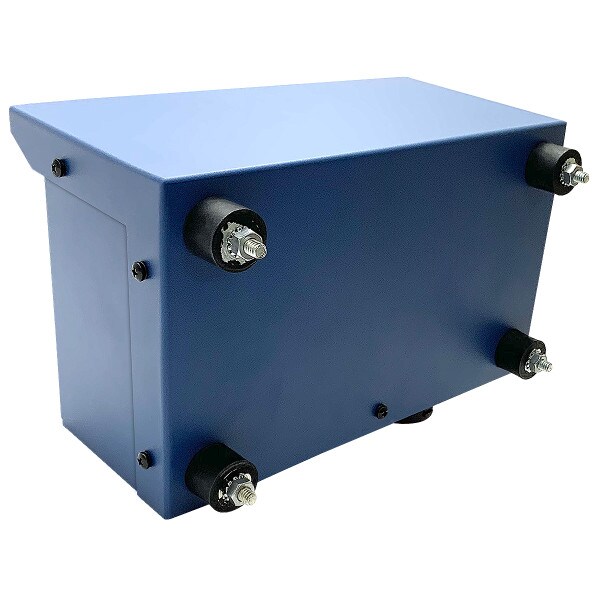

  • 4 (Four) Shockmount Assemblies, CM x 1/2"



The PowerView® PV485 Display:



The PowerView® 485 is a customizable, all-in-one color display and controller designed to meet the needs of modern electronic engines and equipment applications. Its rugged design offers a wide array of configurable I/O, including an RS485 serial connection, and support for both mechanical and J1939 electronic engines. The PV485 also supports Tier 4 and stage IV engines, helping to make your transition to Tier 4 easier.

The display’s bonded LCD can easily be viewed in full sunlight, and its rugged tactile soft keys and durable design make it a perfect solution for all types of environments and applications.



Literature:


  1. Sales Bulletin
  2. Data Sheet
  3. RoHS Directive
  4. MC485 Power Unit Panel Wiring Diagram (40-21-052-A)
  5. MC380-MC485-MC500 w/Smart Command Sales Bulletin





For California customers: Prop 65 WARNING: This product may have been manufactured with or uses components that can expose you to chemicals which are known to the State of California to cause cancer. For more information go to www.p65warnings.ca.gov
