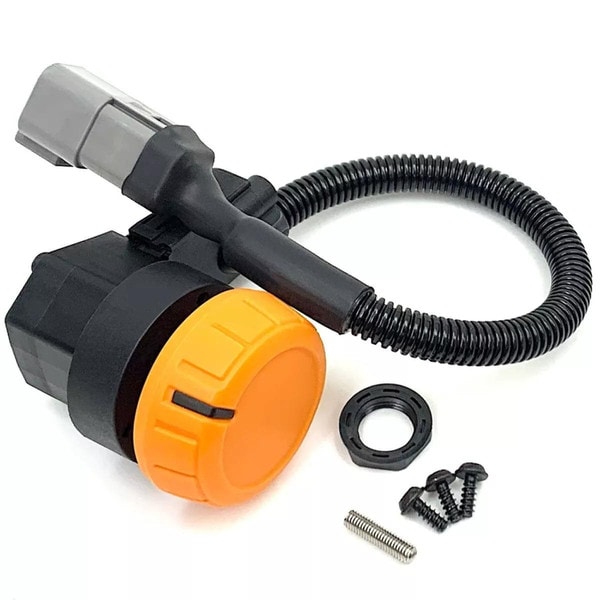

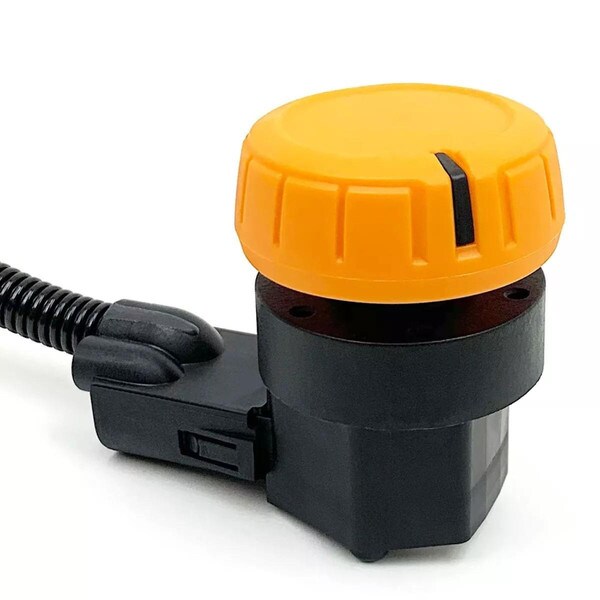

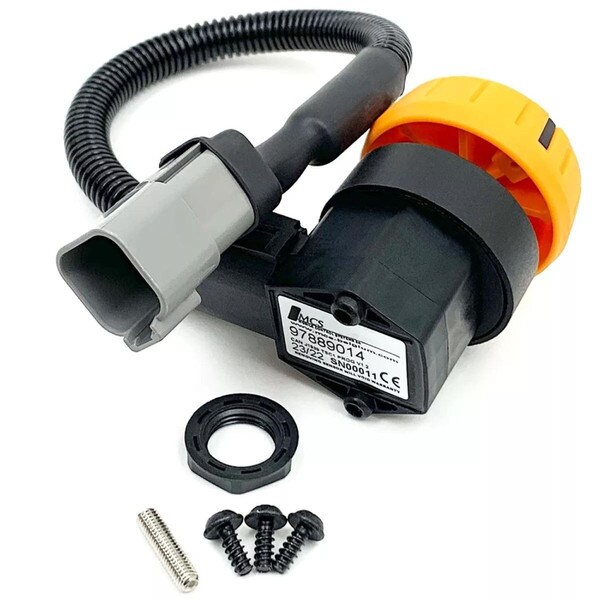

MCS J1939 TSC1 Rotary Throttle 90° travel angle (978 890 14)
MCS J1939 TSC1 Rotary Throttle 90° travel angle (978 890 14)
Supply voltage: 12.0V/24.0V
Output signal: CAN J1939 protocol
MCS drawing# : 506710
Configurable parameters include source address, idle speed, and maximum speed
How to Configure:
You must send the two frames in blue (TPCM and TPDT) in about 150mS interval:
(All in hexa)
First frame:
ID: 1CECFFxx (xx: SA of the Tool )
Data: 20 09 00 02 FF D8 FE 00
Wait 150ms
Second frame :
ID : 1CEBFFxx
Data : 02 00 FD FF FF FF FF FF
Then, the pedal will send a new Address Claim with the new , wait 250ms, then send the TCS1 with the new SA: FDh

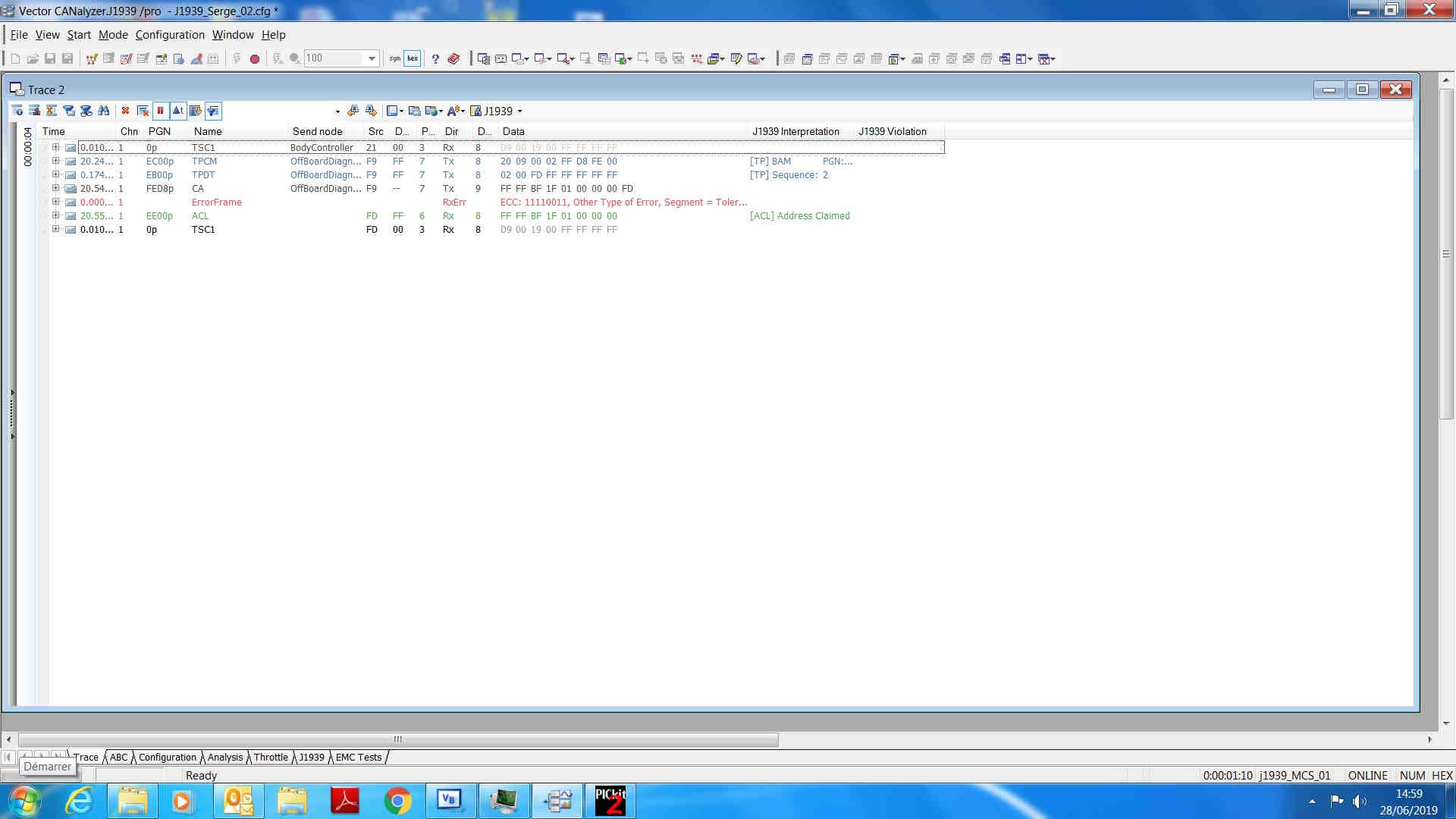

See the Screenshot
PLEASE NOTE:
These are pre-programmed to work on MTU engines with an Idle of 700 RPM and a max speed of 1850 RPM.
Many customers may not have MTU engines. Click Here to see how these are pre-programmed.
If you would like anything else, please let us know prior to ordering so that we can configure them for you.
Literature:
MurCal is an Authorized Distributor of Mobile Control Systems products.
MurCal provides experienced application and product support, before and after the sale.
