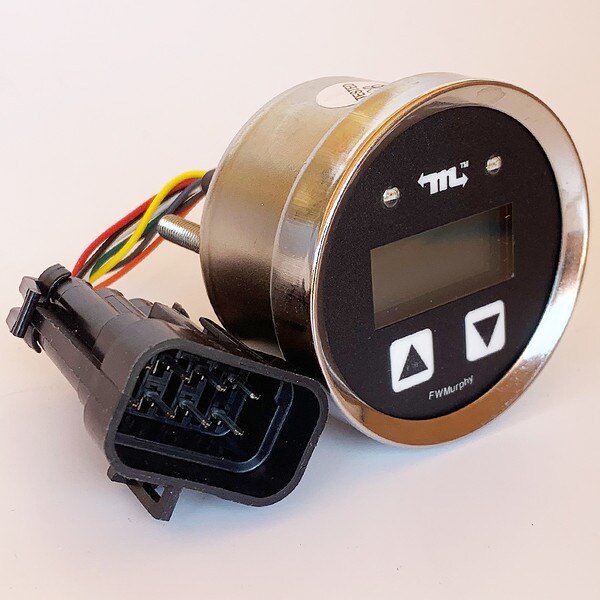

MDDM20-C Display and Diagnostic Module (78700003)

MDDM20-C: Murphy Display and Diagnostic Module; 2-1/16"; Metrik-Pack connector  (78700003)



Model: MDDM = Murphy Display & Diagnostic Module
Size: 20 = 2-1/16 in. (52 mm) Mounting hole
Connector: C = Metri-Pack (12047931)
Bezel Type: = A-20

The Murphy Display and Diagnostic Module or MDDM is the keystone in a line of components manufactured by FWMurphy as part of its J1939 MurphyLink System.
The J1939 MurphyLink System has been developed to meet the needs for instrumentation and control on electronically controlled engines communicating using the SAE J1939 Controller Area Network (CAN).

Literature:

Sales Bulletin


MurCal is an Authorized Distributor of Murphy by Enovation products.
MurCal provides experienced application and product support, before and after the sale.
