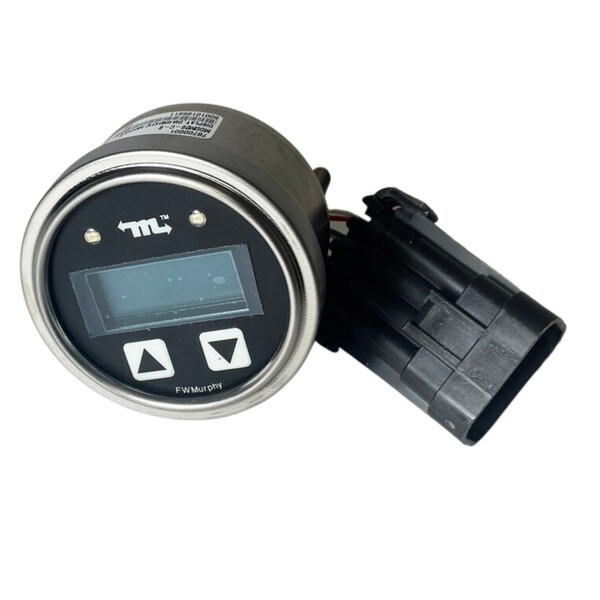

MDDM20M-D Display & Diagnostic Module with MODBUS (78090008)

MDDM20M-D - Murphy Display & Diagnostic Module with MODBUS; AMP/Deutsch connector (78090008)

D = AMP/Deutsch Connector

The Murphy Display and Diagnostic Module or MDDM is the keystone in a line of components manufactured by FWMurphy as part of its J1939 MurphyLink System.
The J1939 MurphyLink System has been developed to meet the needs for instrumentation and control on electronically controlled engines communicating using the SAE J1939 Controller Area Network (CAN). The MDDM-MOD is an additional model of the MDDM series.
The MDDM-MOD can translate SAE J1939 to MODBUS® † RTU registers for remote monitoring via satellite, land lines and cell phones or other controller and computer systems.
This powerful unit is an easy-to-use multifunction tool that enables the operator to view many different engine parameters and engine service codes.

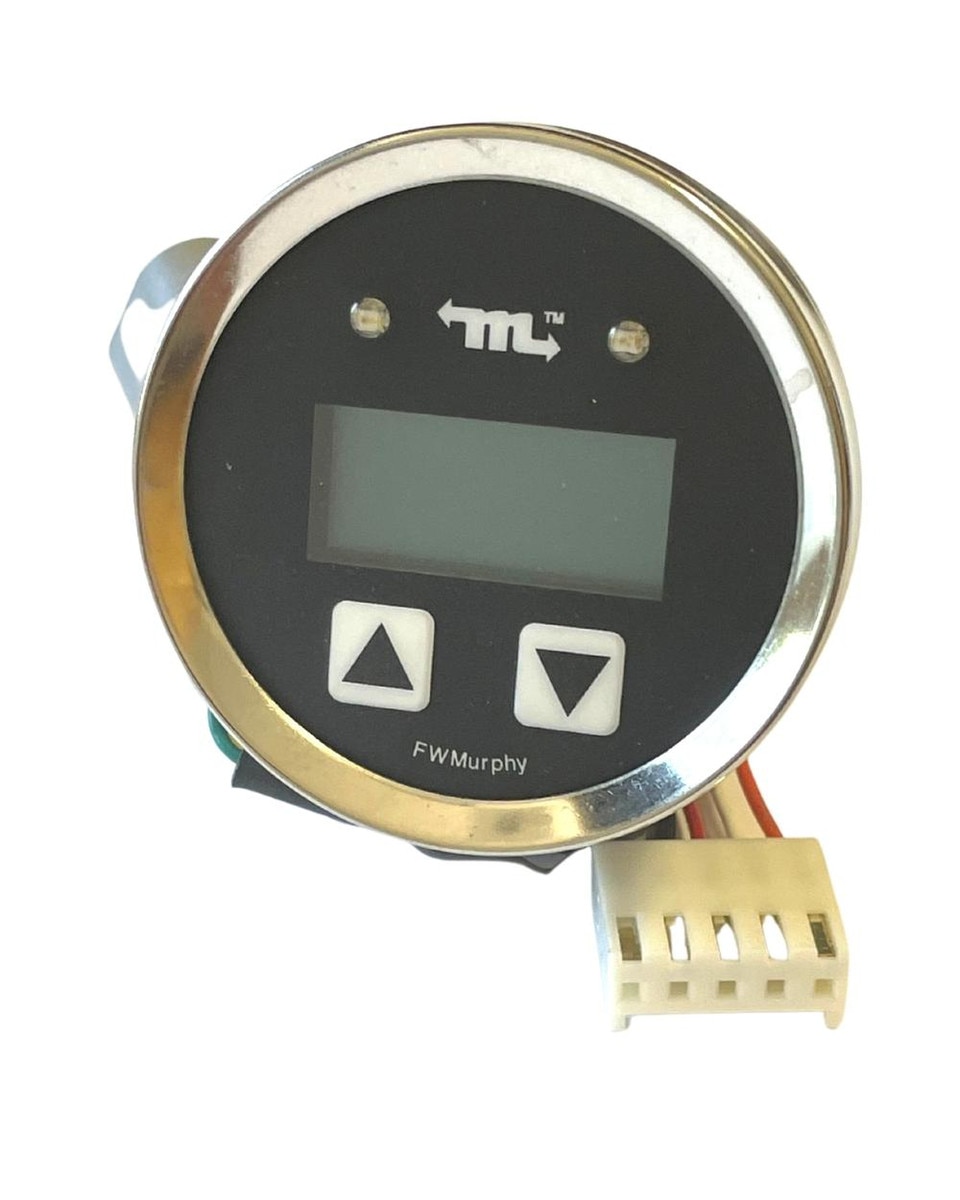

The MDDM-MOD includes a two-line by eight-character backlit LCD display. The top line displays data labels (e.g., Oil Press). The bottom line displays appropriate units (e.g., 80 psi for oil pressure). The UP and DOWN push buttons located on the front of the MDDM-MOD, are used for scrolling through the parameters and viewing the menu list.
Two LEDs (amber & red) are used to annunciate active fault messages received by the MDDM-MOD. MODBUS® † devices can be connected to the MDDM-MOD by an RS485 twisted pair cable up to 1,000 meters. The MDDM-MOD can be powered by 12 or 24* volt systems, is back lit using LEDs, and is environmentally sealed.

Literature:

Sales Bulletin


MurCal is an Authorized Distributor of Murphy by Enovation products.
MurCal provides experienced application and product support, before and after the sale.
