MDTM89-F-A-K Dual Temp Swichgage® (10703047)
MDTM89-F-A-K Dual Temp Swichgage®
Fahrenheit, CD Ignition, 100-350VDC, output by FET (Field Effect Transistor, 0.5 A @ 250 VDC maximum). K Type ungrounded thermocouple (10703047)

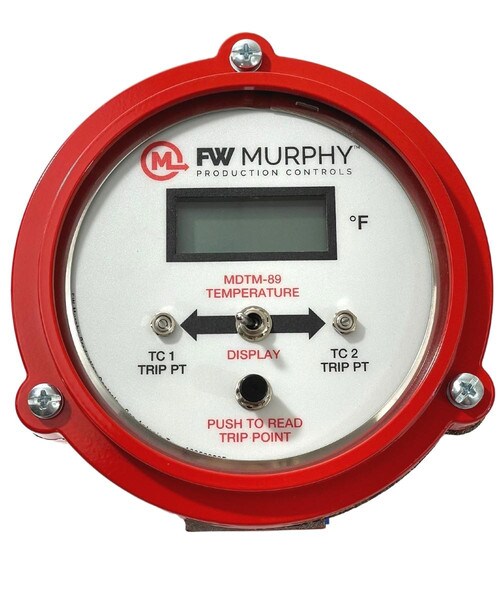

FW Murphy’s model MDTM89 is an electronic, dual temperature monitor. It monitors two thermocouples, displays the temperature of the thermocouple selected and has adjustable trip points for each input.
A toggle switch provides for selection of the thermocouple to be displayed and/or the temperature trip point to be checked/adjusted. If either trip point is reached, the associated output turns on and can be used as a control signal or to initiate alarms and/or shutdown.
A Push to Read button, located below the selector switch, allows the operator to check the trip point and to see its value as adjustments are made. Two potentiometers, one on each side of the thermocouple selector switch, are provided for field adjustment of the trip points.
F = Fahrenheit
A = CD ignition, 100 to 350 VDC, output by FET (Field Effect Transistor, 0.5 A @ 250 VDC Maximum)
K = from 400° - 2000° F (204° - 1076° C)
Literature:
MurCal is an Authorized Distributor of FW Murphy products.
MurCal provides experienced application and product support, before and after the sale.
