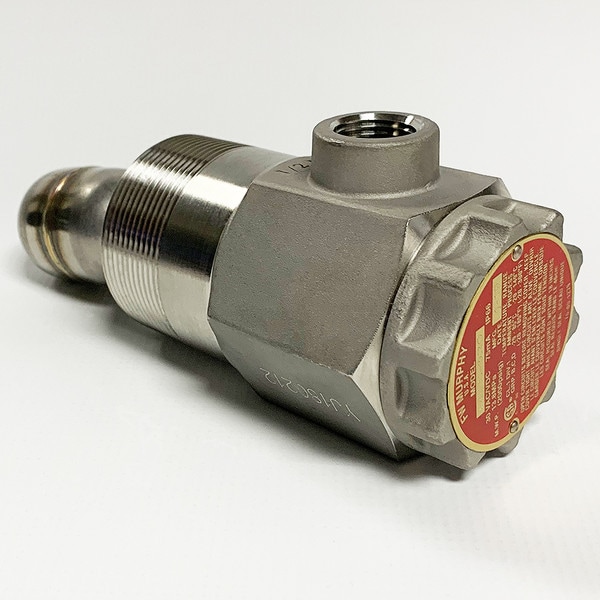

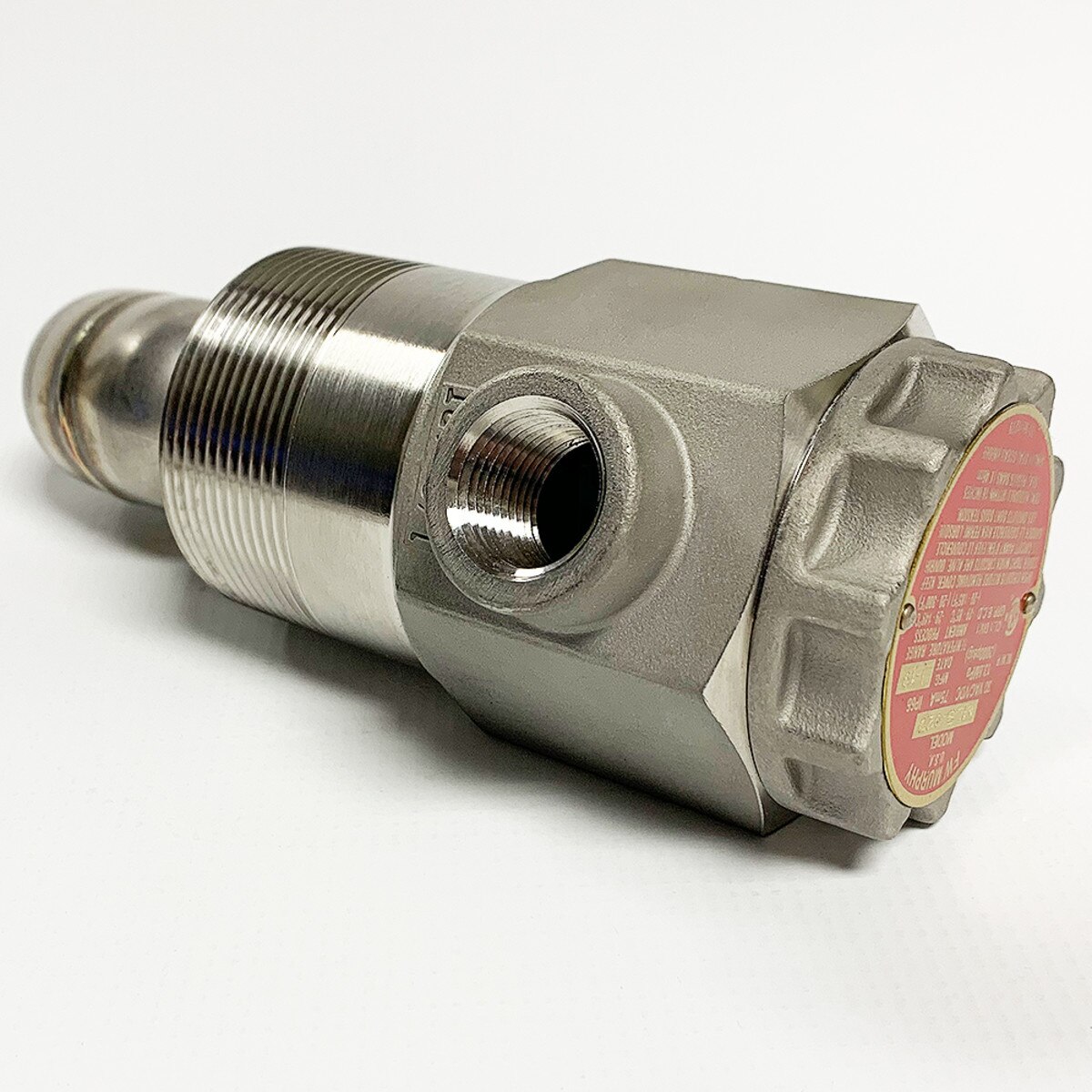

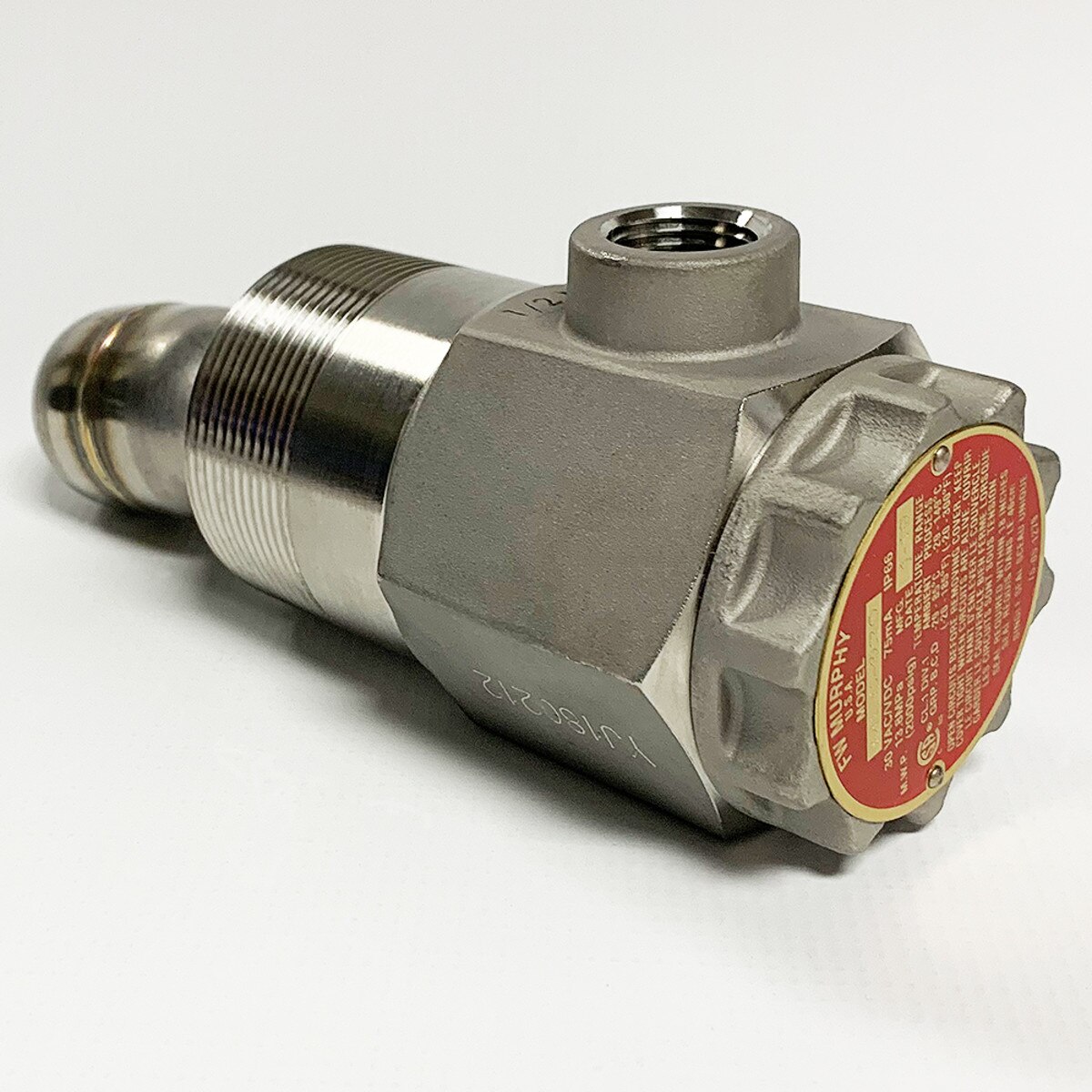

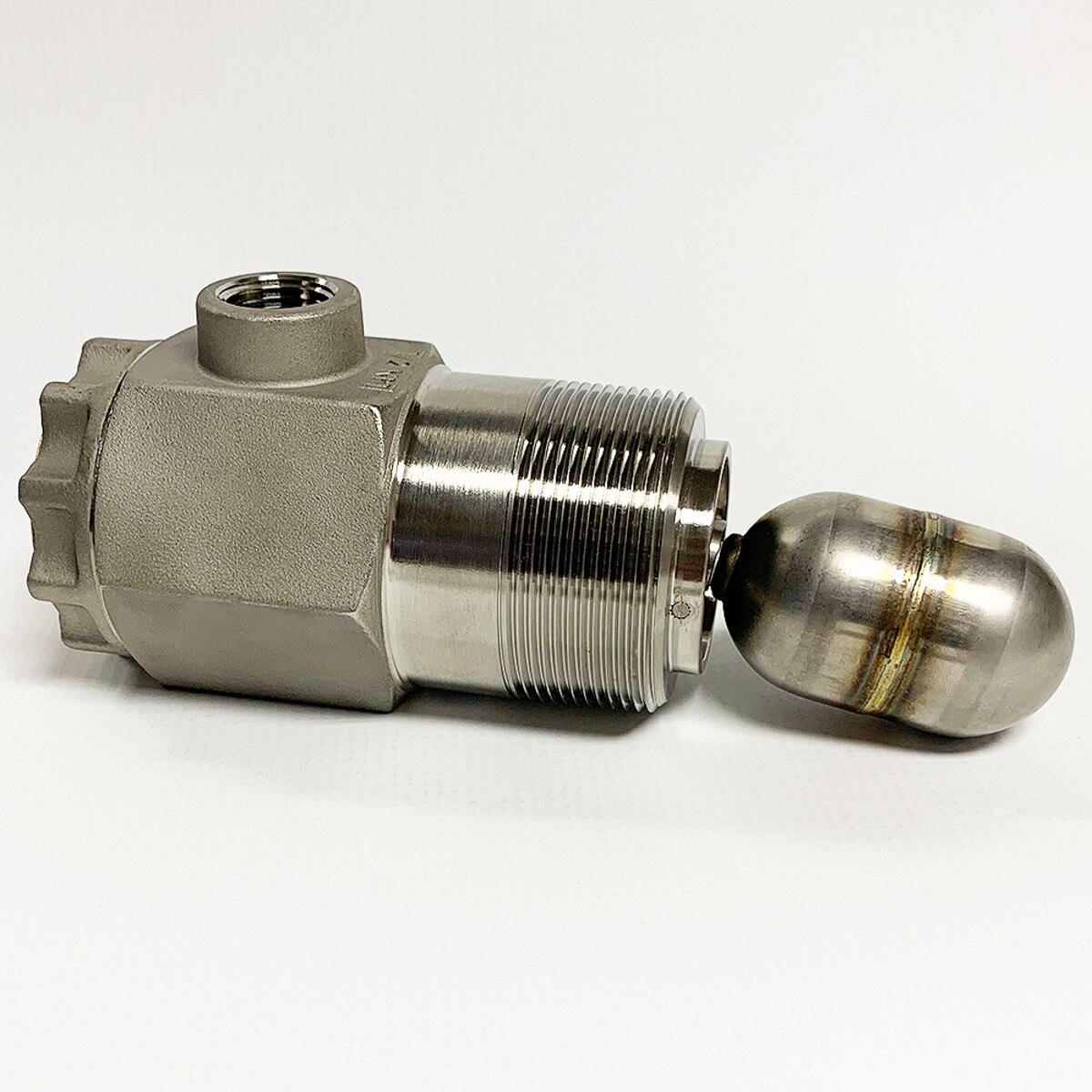

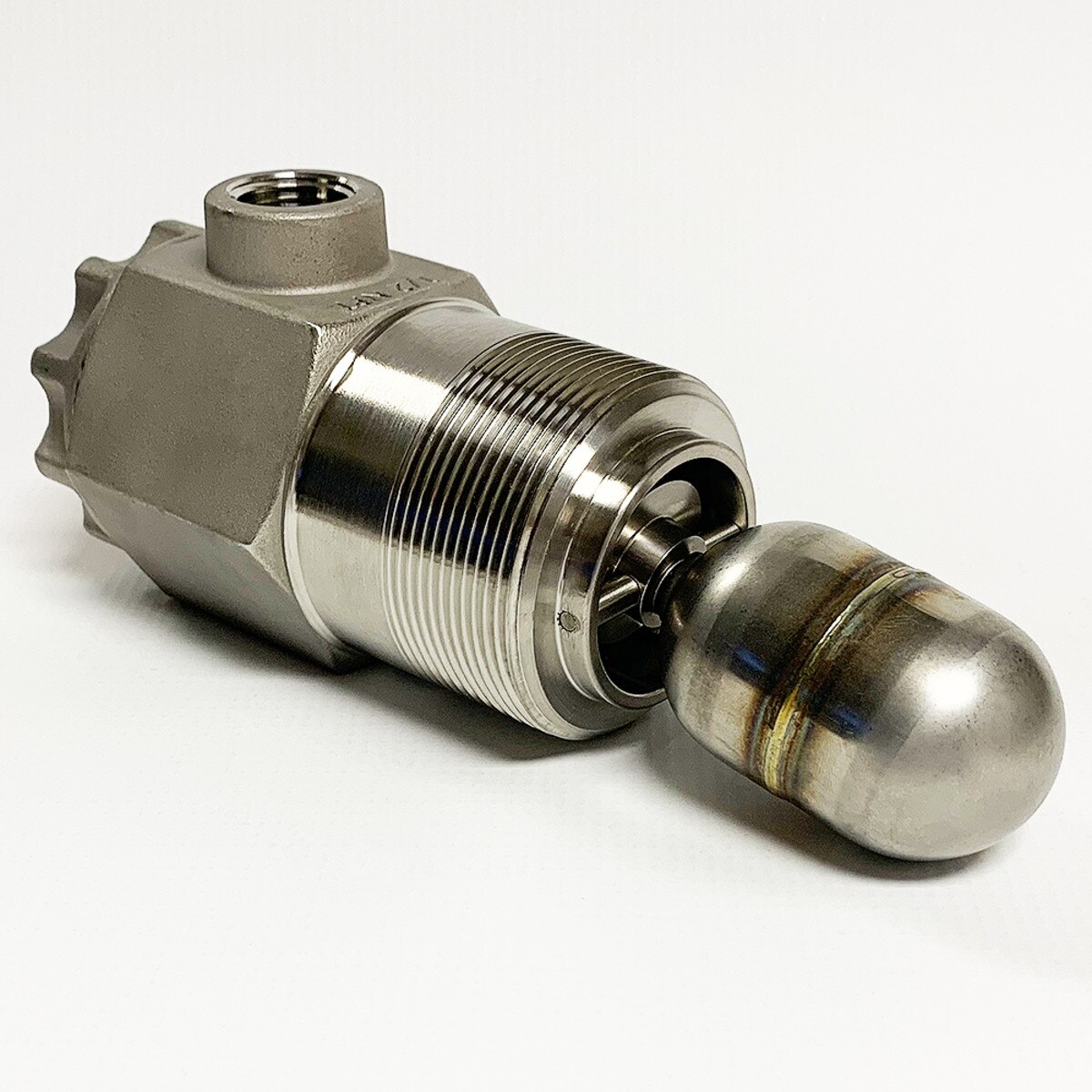

MLS-020 Liquid Level Switch (15700839)
MLS-020 Liquid level switch: 2" NPT process connection. SS body and float. (15700839)
The MLS-020 Liquid Level Switch is float activated to operate an electrical SPDT reed switch for annunciation/pilot signal for indication of high level to an annunciator, controller or PLC.
The 2" NPT model connects directly into the gas scrubber wall and can be used with a Murphy weld collar or Murphy external float chamber.
The MLS-020 features:
* Clean Magnet Design virtually eliminates iron filing accumulation onto the magnet
* Seal-Free Construction
* ANSI/ISA 12.27.01 compliant (Single Seal)
* Operates in 0.50 specific gravity or heavier fluids
* Designed for harsh gas compressor scrubber applications
* 304 cast equivalent SS body and 304 SS float
* Rated for 2000 psi (13.8 MPa) [138 bar] working pressure
* Trip on rising and falling without need to rotate body
* Electric model only available
* All models screw directly into the scrubber or can be mounted via a Murphy external float chamber
* CSA C/US Class I, Div. 1, Grp. B, C & D locations
* NACE MR0175 compliant
* Canadian Registration Number 0F01476.2
