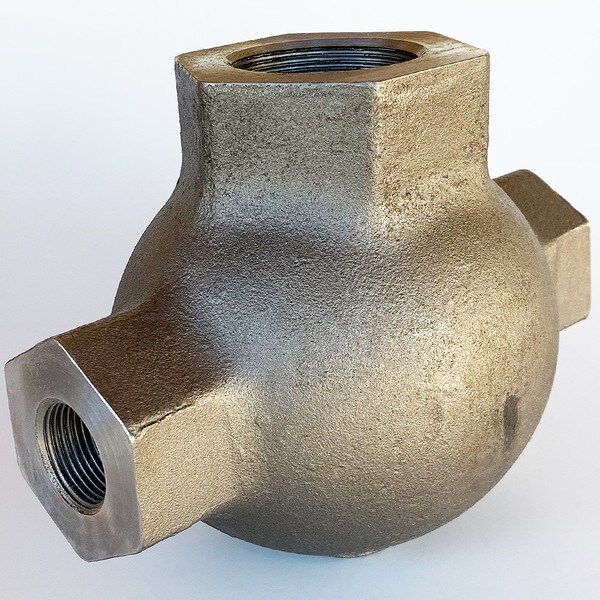

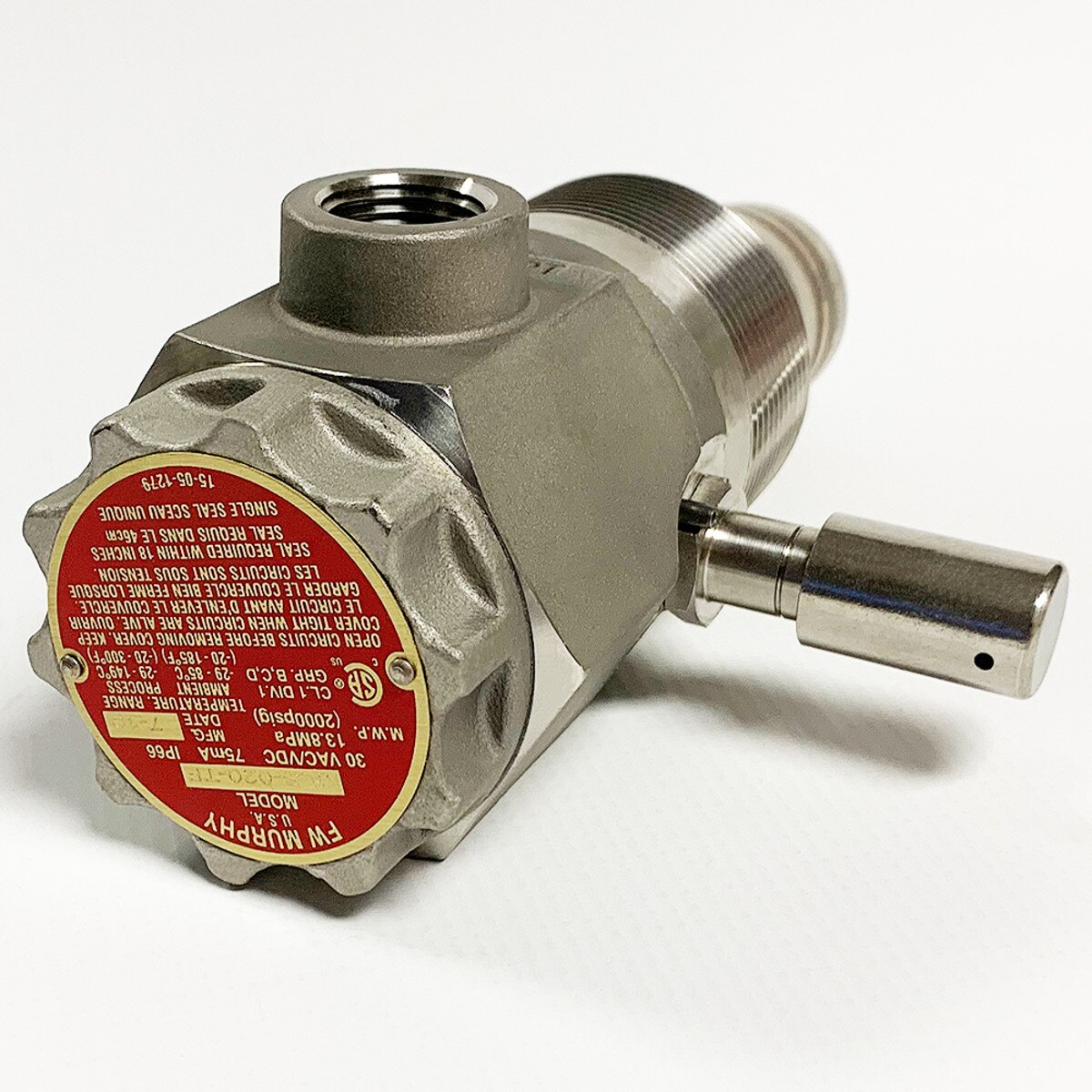

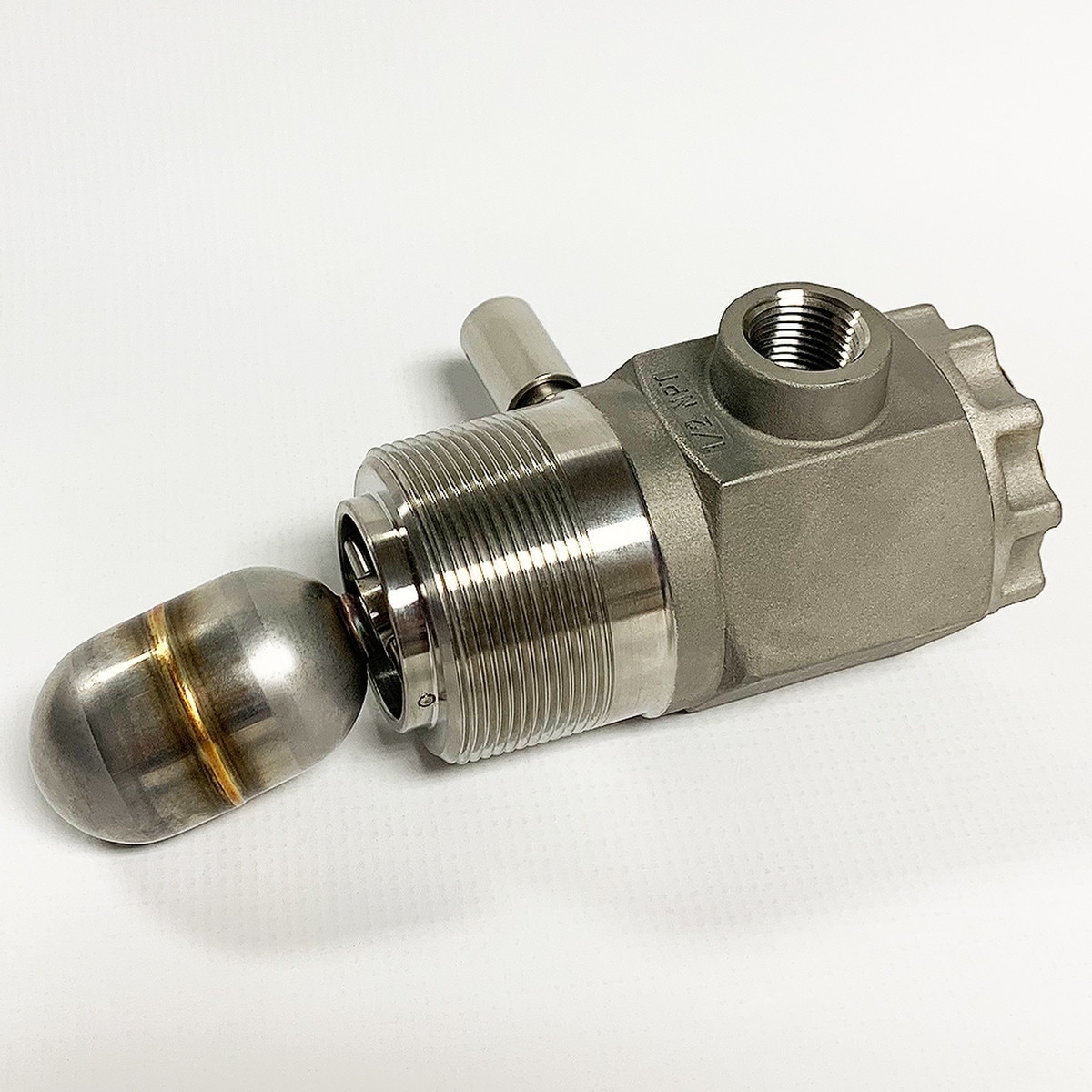

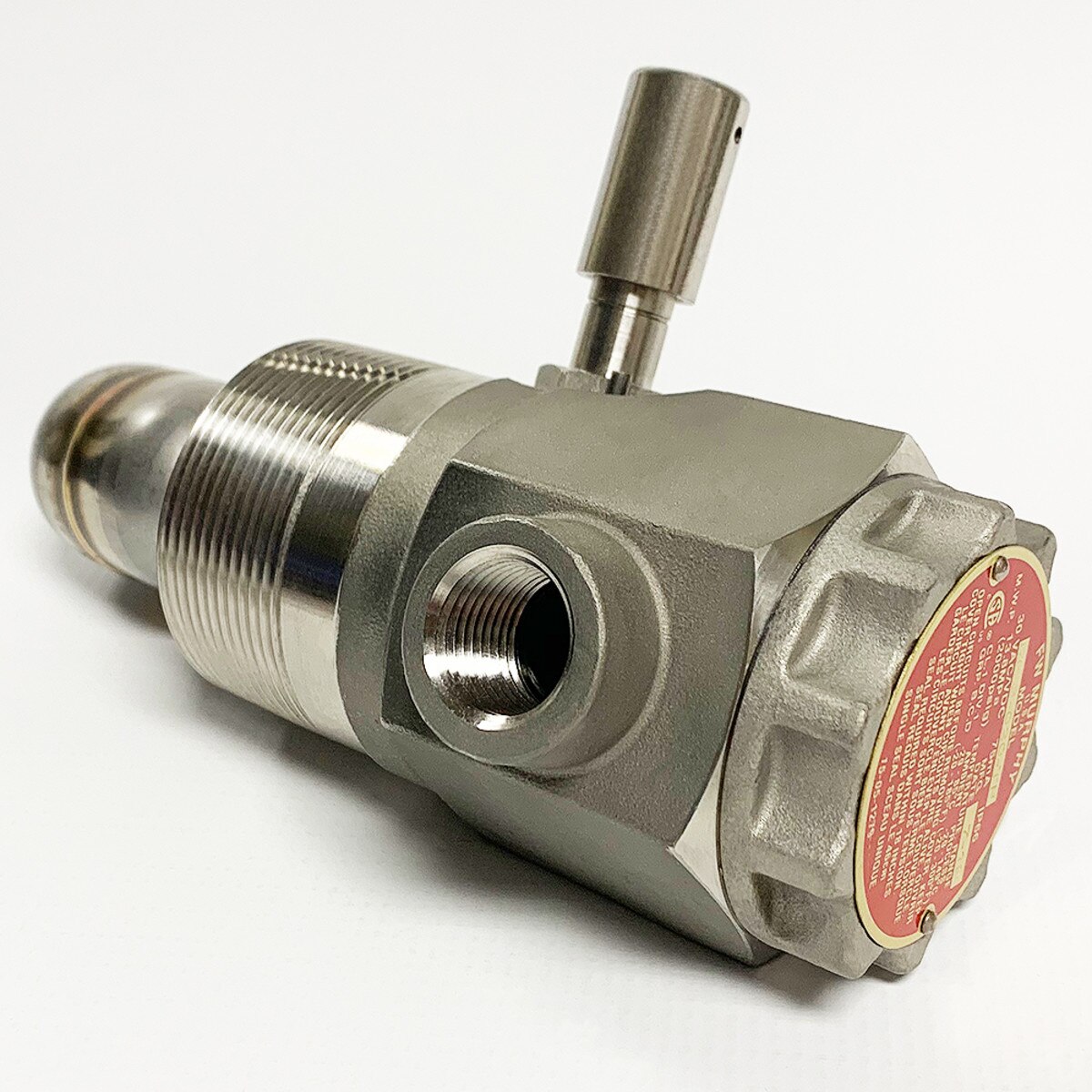

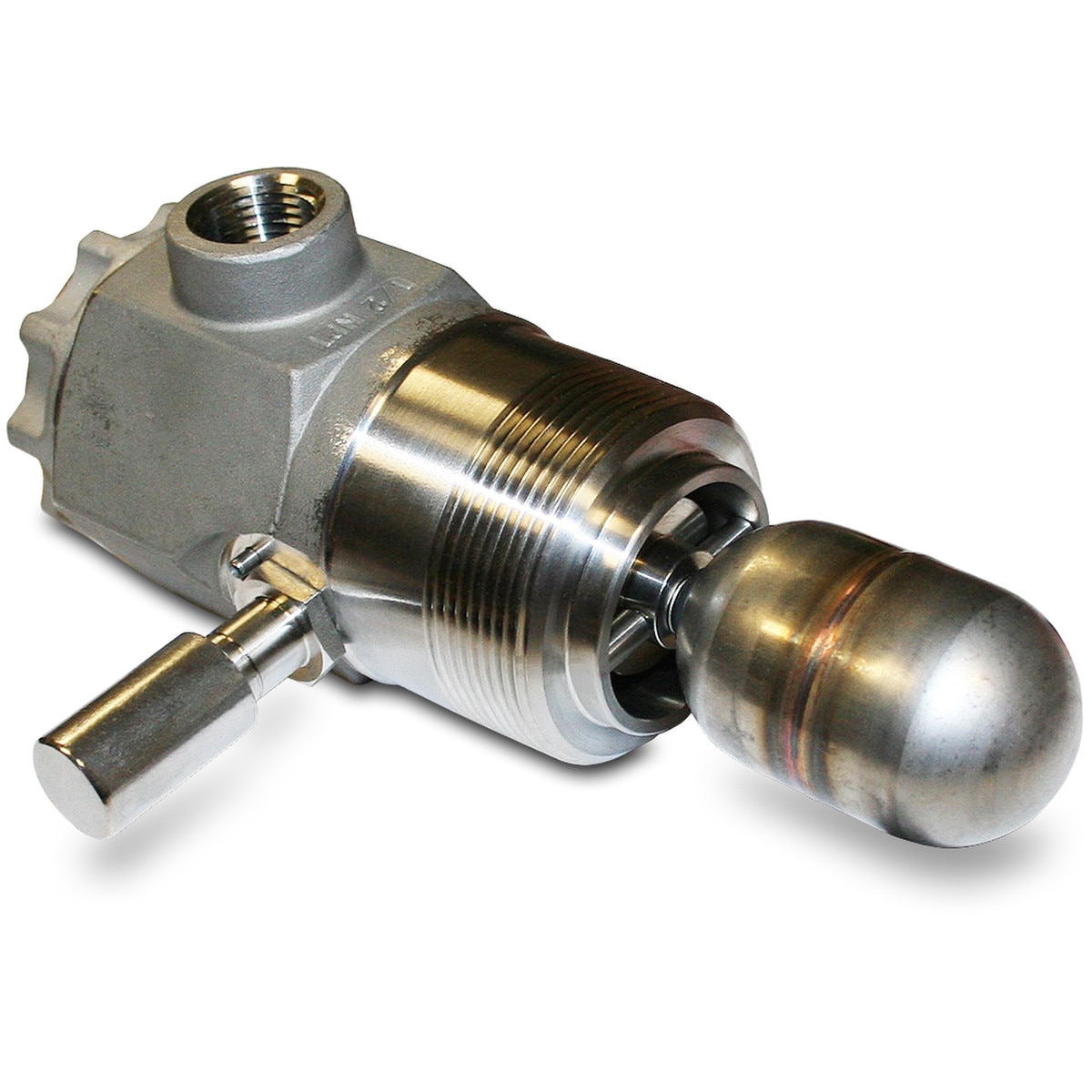

The MLS-020-TF Liquid Level Switch is float activated to operate an electrical SPDT reed switch for annunciation/pilot signal for indication of high level to an annunciator, controller or PLC. The MLS-020-TF connects directly into the gas scrubber wall and can be used with an FW Murphy weld collar or external float chamber. The MLS-020-TF's process connection is 2 in. NPT. The test button tests for float function; the complete mechanism including the magnetic activation of the reed switch; and the wiring from the switch to the control panel. Features of the MLS-020-TF include: * Clean magnet design virtually eliminates iron filing accumulation on the magnet * Seal-free construction * ANSI/ISA 12.27.01 compliant (Single Seal) * Push button to test functions * Operates in 0.50 specific gravity or heavier fluids * Designed for harsh gas compressor scrubber applications * 304 cast equivalent SS body and 304 SS float * Rated for 2000 psi (13.8 MPa) [138 bar] working pressure * Trip on rising and falling without need to rotate body * Electric model only available * Screws directly into the scrubber, or can be mounted via an FW Murphy External Float Chamber * CSA C/US Class I, Div. 1, Grp. B, C & D locations * Canadian registration pending Sales BulletinInstallation InstructionsScrubber Float TestScrubber Level Control System Bulletin
