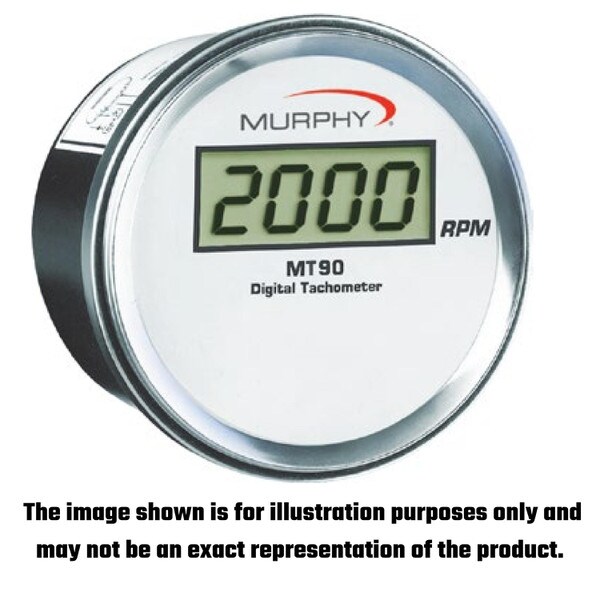

MT90-1-B Digital Tachometer (20700020) *SPECIAL ORDER ITEM*
MT90-1-B: MT90-1-B Digital Tachometer by Murphy SELECTRONIC®*; white background face plate, black stainless bezel (20700020)
———
*SPECIAL ORDER ITEM*
Please Allow Approx. 4 Weeks For Delivery Of This Product
———
The Murphy Selectronic® MT90-1-B is a digital tachometer. Its high accuracy and dependability result from use of a quartz crystal time based and digital, solid-state electronics. Tachometer power is supplied by either a Murphy magnetic pickup, mounted at the flywheel ring-gear of an engine, or by a 12, 24 or 32 volt DC battery system. RPM data is supplied by either a Murphy magnetic pickup or by the alternator in your battery charging circuit. The MT90-1-B also has back-lighting for easy readings in low lit areas; this lighting requires a battery power source.
The MT90-1-B is calibrated to engine RPM by setting a series of calibration rotary switches on the back of the tachometer. The proper switch sequence for the engine is determined by (1) the number of ring gear teeth for the magnetic pickup, or (2) by the ratio of alternator to engine pulley diameter, and the number of poles of the alternator.
Typical applications include: Generators, Compressors, Industrial Engines, Oil Field Equipment, Marine Vessels, Vehicles, Farm Equipment, and Construction Equipment.
FEATURES:
- ±1 RPM Accuracy
- Easy Calibration
- Clear-Read LCD Display
- Back Light for Night Viewing (Battery Powered models)
- Input Source Can Be a Magnetic Pickup or Engine Alternator
- Power Supplied by Magnetic Pickup or 12, 24, or 32 VDC Battery System
- Black Stainless Bezel
Literature:
Sales Bulletin & Installation Instructions
